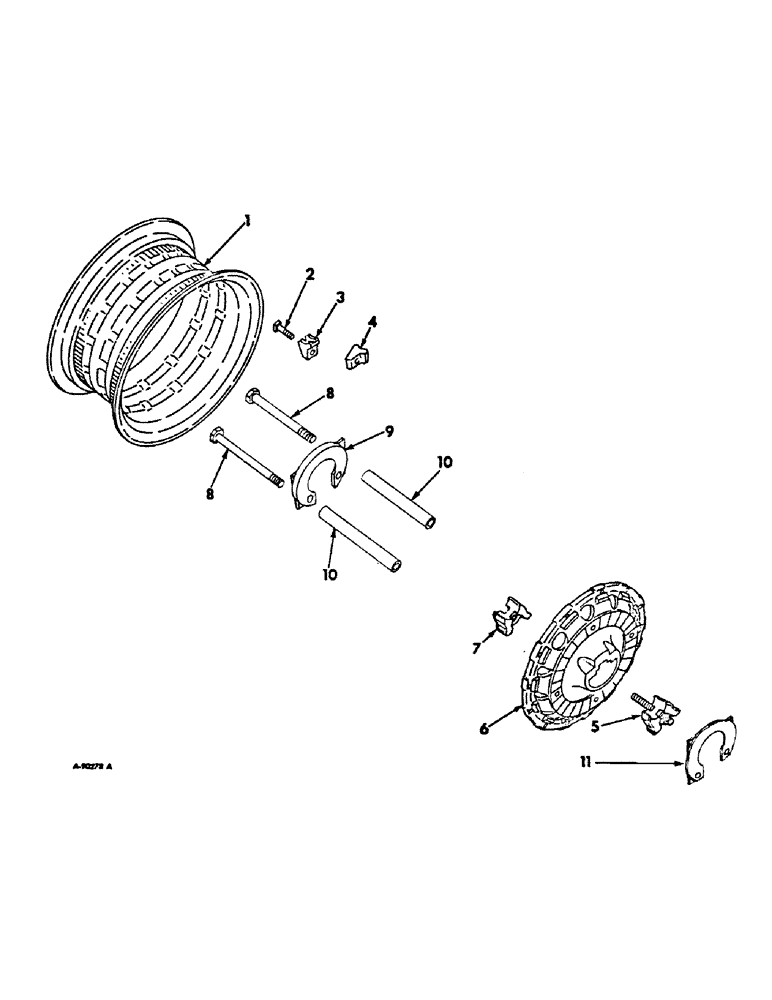

Запчасти Case IH 756 (L-06) - WHEELS AND WHEEL WEIGHTS, REAR WHEELS, WEDGE TYPE Wheels & Wheel Weights

1

380867R1

RIM

rear wheel, W15L-34 rim for 16.9-34 tire, except hi-clear tractors

2шт.

1

380868R1

RIM

rear wheel, W16L-34 rim for 18.4-34 tire

2шт.

1

392647R1

RIM

rear wheel, WH14L-38 rim for 15.5-38 tire, Farmall tractors

2шт.

1

380865R1

RIM, rear wheel, W15L-30 rim for 16.9-30 tire, International tractors

2шт.

1

392032R1

RIM

rear wheel, W15L-38 rim for 16.9-38 tire, Farmall tractors

2шт.

1

380866R1

RIM, rear wheel, W16L-30 rim for 18.4-30 tire, International tractors

2шт.

1

384068R91

RIM

W/CLAMPS, rear wheel, DW20-30 rim for 23.1-30 tire

2шт.

1

384069R91

RIM W/CLAMPS, rear wheel, DW20-34 rim for 23.1-34 tire

2шт.

2

393772R1

BOLT,Sq Hd, 3/4" - 16 x 3"

rear wheel rim clamp, 20 for 30 in. wheels

1шт.

352536R1

NUT

rear wheel rim clamp bolt

20шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

20шт.

2

393772R1

BOLT,Sq Hd, 3/4" - 16 x 3"

rear wheel rim clamp, 24 for 34 & 38 in. rims

1шт.

352536R1

NUT

rear wheel rim clamp bolt

24шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

24шт.

2

380877R1

BOLT,3/4" - 16 x 4 3/4"

rear wheel rim clamp, 20 for rim, 384068R91

1шт.

352536R1

NUT

rear wheel rim clamp bolt

20шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

20шт.

3

380870R1

CLAMP

rear wheel rim, 16 for 30 in., 20 for 34 and 38 in.

1шт.

4

397251R1

CLAMP

rear wheel rim, fixed

4шт.

5

397189R2

WEDGE

ASSY, wheel

2шт.

6

398545R1

WHEEL

34 in. rear

2шт.

6

397188R1

WHEEL

38 inch heavy duty rear

2шт.

6

398544R1

WHEEL

30 inch rear

2шт.

7

397193R2

WEDGE

wheel

2шт.

8

535561R1

SCREW

3/4-16 x 9-3/4 hex-hd cap

2шт.

9

535559R2

PLATE

AND SPACER ASSY

1шт.

10

535546R1

BUSHING,19.74mm ID x 22.23mm OD x 180.34mm L

bolt tube

2шт.

11

535557R2

PLATE

AND SPACER ASSY

1шт.

536022R92

PACKAGE

wedge wheel remover tool service, consists of ref nos 8 through 11 strip, 535409R1 & wrench, 529959R1

1шт.

535409R1

STRIP

wrench grip

1шт.

529959R1

TOOL

WRENCH, wedge wheel socket 7/8

1шт.
