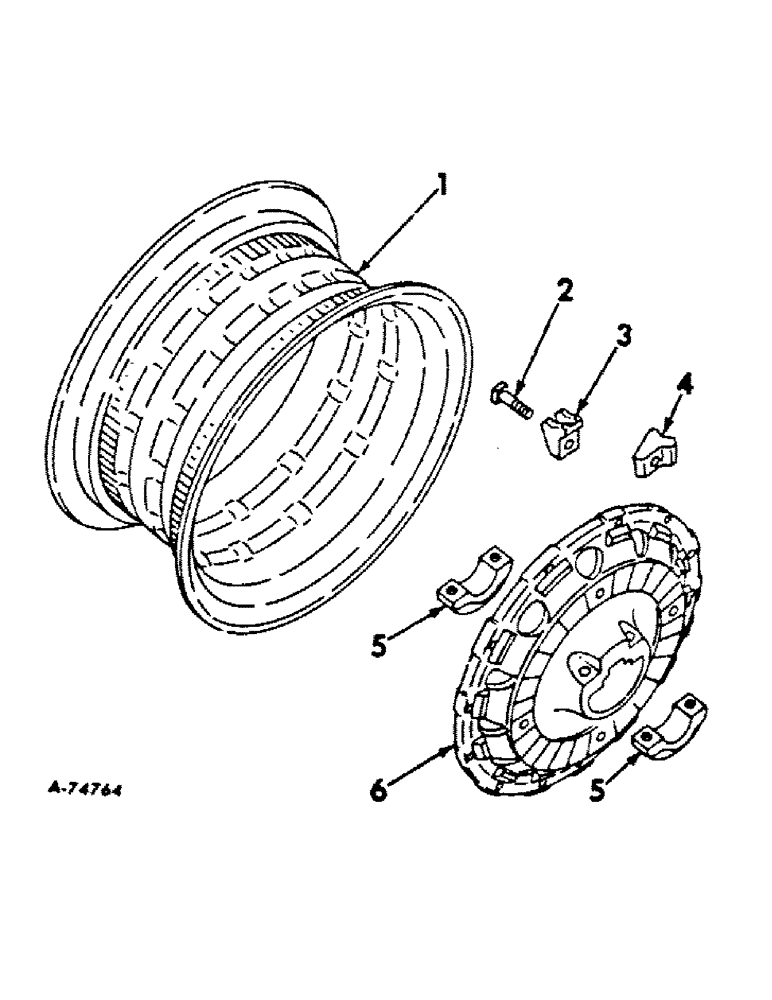

Запчасти Case IH 756 (L-05) - WHEELS AND WHEEL WEIGHTS, REAR WHEELS, FARMALL TRACTORS Wheels & Wheel Weights

1

380867R1

RIM

rear wheel, W15L-34 rim for 16.9-34 tire

2шт.

1

380868R1

RIM

rear wheel, W16L-34 rim for 18.4-34 tire

2шт.

1

383691R1

RIM

rear wheel, WH12-38 rim for 14.9-38 tire

2шт.

1

380869R1

RIM

rear wheel, WH14L-38 rim for 15.5-38 tire

2шт.

1

392032R1

RIM

rear wheel, W15L-38 dem rim for 16.9-38 tire

2шт.

2

380878R1

BOLT (SPREADER),Sq Hd, 3/4" - 16 x 2 3/4"

BOLT, rear wheel rim clamp, 24 for 34 in. wheels and 392032R1 rim

1шт.

352536R1

NUT

rear wheel rim clamp bolt

24шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

24шт.

2

380878R1

BOLT (SPREADER),Sq Hd, 3/4" - 16 x 2 3/4"

BOLT, rear wheel rim clamp, 16 for 38 in. wheels

1шт.

352536R1

NUT

rear wheel rim clamp bolt

16шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

16шт.

3

380780R1

CLAMP, rear wheel rim, 20 for 34 in. wheels and 392032R1 rim

1шт.

3

380870R1

CLAMP

rear wheel rim, for 38 in. wheels

12шт.

4

397251R1

CLAMP

rear wheel rim, fixed

4шт.

5

380863R2

COLLAR

CLAMP, rear wheel hub

4шт.

385784R11

STUD

STUD W/NUT ASSY, rear wheel hub clamp

8шт.

384697R1

WASHER

hub clamp stud

8шт.

6

383579R2

WHEEL

34 in. rear

2шт.

6

383581R1

WHEEL (STEERING)

WHEEL, 38 in. rear

2шт.

6

392020R1

WHEEL

38 in. rear, for 392032 R1 rim

2шт.

6

382967R1

WEIGHT

WHEEL, 38 in. rear, Farmall hi-clear tractors only

2шт.

373941R2

SOCKET WRENCH

WRENCH, 1-5/16 box

1шт.

386181R91

PARTS ACCESSORY, WH12-38 rear wheel, consists of (8) bolt 393772R1, (2) clamp 380863R2, (6) clamp 380870R1, (2) clamp 397251R1, (8) nut 352536R1, (1) rim 383691R1, (4) stud 385784R11, (2) washer 103326, (4) washer 384697R1, (1) wheel 383581R1

1шт.

386180R91

PARTS ACCESSORY, WH14L-38 rear wheel, consists of (8) bolt 393772R1, (2) clamp 380863R2, (6) clamp 380870R1, (2) clamp 397251R1, (8) nut 352536R1, (1) rim 380869R1, (4) stud 385784R11, (2) washer 103326, (4) washer 384697R1, (1) wheel 383581R1

1шт.
