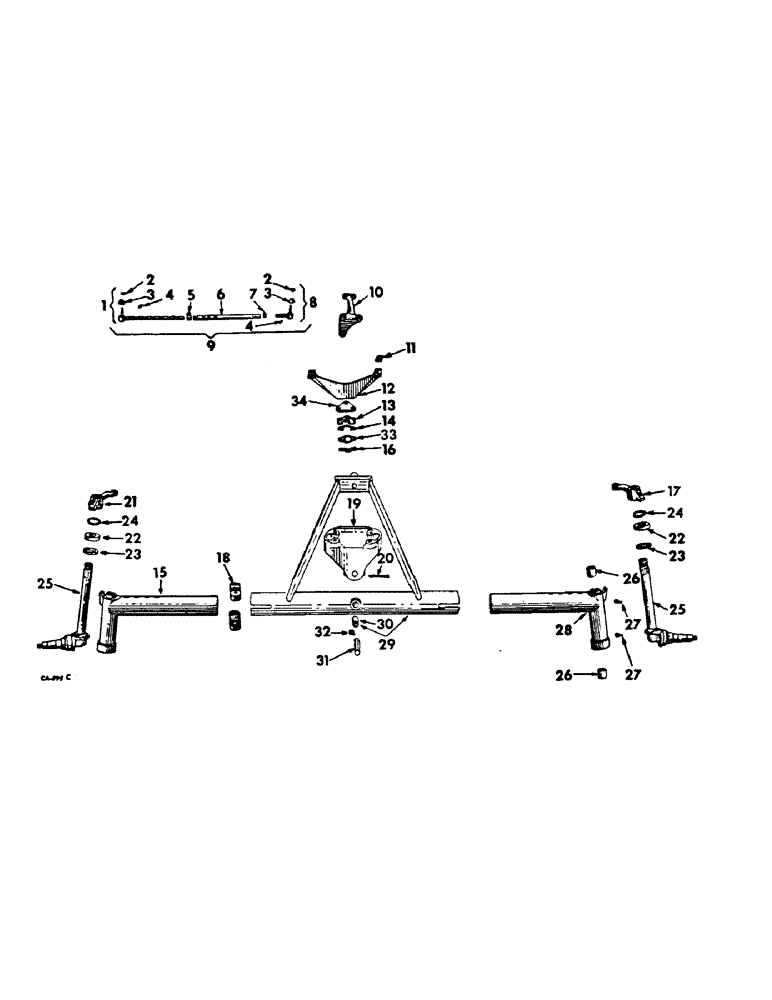

Запчасти Case IH 756 (J-16) - STEERING MECHANISM, ADJUSTABLE WIDE TREAD FRONT AXLE, HEAVY DUTY, FARMALL TRACTORS Steering Mechanism

ATTACHMENT, front axle, 531073R91, axles with 56 to 80 in. tread

1шт.

ATTACHMENT, front axle, 531075R91, axles with 50 to 74 in. tread

1шт.

1

359984R92

ROD

ASSY, tie, welded end, axles with 56 to 80 in. tread

2шт.

1

384441R92

ROD

ASSY, tie, welded end, axles with 50 to 70 in. tread

2шт.

2

358901R1

SLOTTED NUT

tie rod

4шт.

3

387280R2

COVER

dust

4шт.

4

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

4шт.

5

359986R1

CLAMP

tie rod, adj end

2шт.

25-118

NUT,1/2"-20, G5

1/2-20 hex.

2шт.

414-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

SCREW, 1/2-20 x 2-1/4 hex-hd cap

2шт.

6

383917R1

TUBE

tie rod, axles with 56 to 80 in. tread

2шт.

6

384439R1

TUBE,0.937" ID, 1.187" OD, 15.312" Length

tie rod, axles with 50 to 74 in. tread

2шт.

7

374062R1

JAM NUT

NUT, jam, axles with 56 to 80 in. tread

2шт.

7

384442R1

JAM NUT

NUT, jam, axles with 50 to 74 in. tread

2шт.

8

384006R92

END

ASSY, tie rod, RH thread, axles with 56 to 80 in. tread

2шт.

8

384440R92

END

ASSY, tie rod, RH thread, axles with 50 to 74 in. tread

2шт.

9

383915R92

ROD

ASSY, tie, axles with 56 to 80 in. tread

2шт.

9

384438R92

ROD

ASSY, tie, axles with 50 to 74 in. tread

2шт.

32-822

COTTER PIN,1/8" x 1 3/8"

Pin, Split (Cotter), 1/8" x 1 3/8"

4шт.

10

358970R1

ARM

steering gear

1шт.

271607

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5

SCREW, 3/4-10 x 1-1/2 hex-hd cap

3шт.

11

51693D

BAR

WASHER, stay rod ball socket support

2шт.

12

370692R3

SUPPORT

stay rod ball socket

1шт.

25-118

NUT,1/2"-20, G5

1/2-20 hex.

2шт.

181435

BOLT,Hex, 1/2" - 20 x 2", Gr 5

SCREW, 1/2-20 x 2 hex-hd cap

2шт.

181429

BOLT,Hex, 1/2" - 20 x 1 1/4", Gr 5

SCREW, 1/2-20 x 1-1/4 hex-hd cap

2шт.

13

535861R1

FIXING BRACKET

SOCKET, stay rod ball, replaces 389277R1

1шт.

20734R1

SCREW,Hex, 1/2"-13 x 2 1/2", G8

1/2-13 x 2-1/2 type 8 hex-hd cap

1шт.

14

60762D

SHIM

stay rod ball socket cap

4шт.

15

528853R2

EXTENSION ASSY, front axle RH, axles with 56 to 80 in. tread

1шт.

15

528861R2

EXTENSION ASSY, front axle RH, axles with 50 to 74 in. tread

1шт.

16

358345R1

PLATE ASSY.

PLATE, stay rod ball socket cap lock

1шт.

17

405459R1

ARM

steering knuckle LH

1шт.

427546

JAM NUT,Jam, 1 3/8"-12, G5

1-3/8-12 hex. jam

1шт.

Q326

WASHER

1-13/32 x 2-3/4 x 18 ga

1шт.

18

383994R1

CLAMP, front axle

4шт.

531851R1

PIN

front axle clamp

2шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

2шт.

631191R1

BOLT,Hex, 5/8" - 11 x 5", Gr 8

SCREW, 5/8-11 x 5 hex-hd cap

4шт.

102639

NUT,5/8"-11, G5

4шт.

19

528857R1

BOLSTER, lower

1шт.

271614

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

SCREW, 3/4-10 x 2-3/4 hex-hd cap

4шт.

20

U5360

AXLE PIN

PIN, 3/8 x 6-1/8 headed

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

21

405460R1

ARM

steering knuckle RH

1шт.

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

2шт.

427546

JAM NUT,Jam, 1 3/8"-12, G5

1-3/8-12 hex. jam

1шт.

Q326

WASHER

1-13/32 x 2-3/4 x 18 ga

1шт.

22

369131R91

THRUST BEARING

steering knuckle pivot thrust

2шт.

23

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

Steering knuckle pivot felt

2шт.

24

146008R1

SNAP RING,M41.15 x 2.46mm Thk, Ext

RING, steering knuckle retaining

2шт.

25

401768R92

STEERING KNUCKLE

KNUCKLE W/OIL SEAL, 370254R91 and shield, 48701D, steering

2шт.

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-14 slt hex.

2шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

2шт.

26

358958R2

BUSHING,42.57mm ID x 46.08mm OD x 51.05mm L

steering knuckle pivot pin

4шт.

27

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 drive type str lub

2шт.

28

528852R2

EXTENSION ASSY, front axle LH, axles with 56 to 80 in. tread

1шт.

28

528860R2

EXTENSION

ASSY, front axle LH, axles with 50 to 70 in. tread

1шт.

29

528848R11

AXLE

ASSY, front, axles with 56 to 80 in. tread

1шт.

29

528859R11

AXLE ASSY, front, axles with 50 to 74 in. tread

1шт.

30

379943R1

BUSHING,38.11mm ID x 41.41mm OD x 38.1mm L

pivot pin

2шт.

31

379941R1

AXLE PIN,38.1mm OD x 219.2mm L

PIN, front axle pivot

1шт.

32

219-45

LUBE NIPPLE,65 Degree Elbow, 1/4" NPTF

FITTING, 1/4 65 deg angle drive type lub, front axle pivot

1шт.

33

60763DB

CYLINDER END CAP

CAP, stay rod ball socket

1шт.

179894

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

2шт.

34

528858R1

SPACER

stay rod ball socket cap

1шт.
