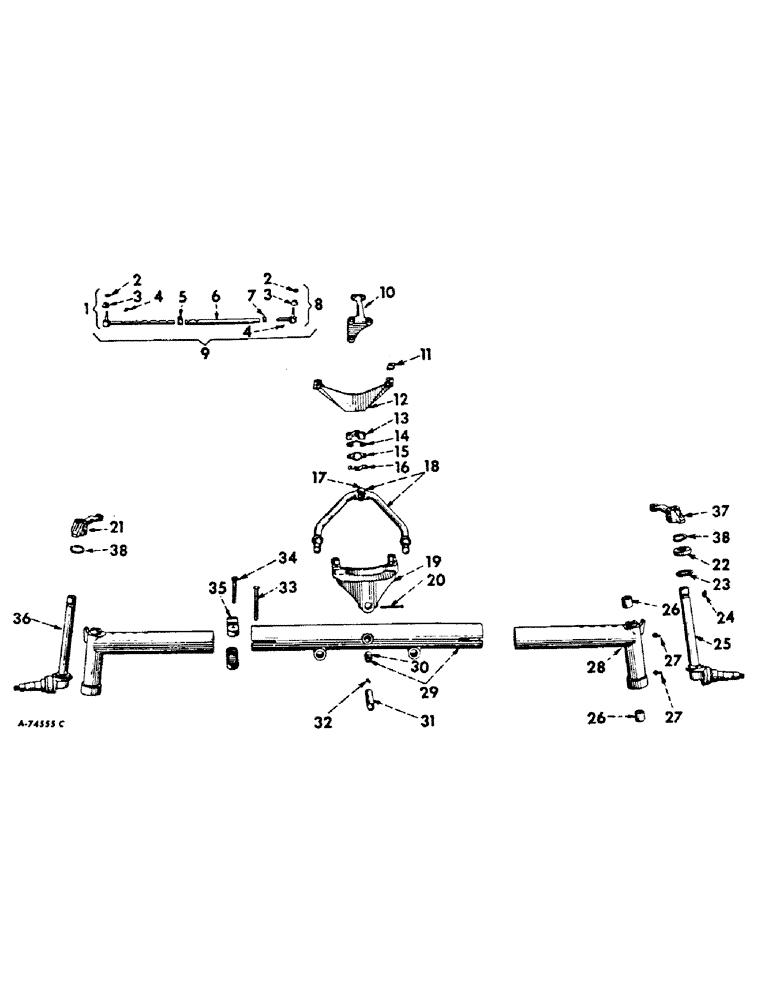

Запчасти Case IH 756 (J-14) - STEERING MECHANISM, ADJUSTABLE WIDE TREAD FRONT AXLE, STANDARD, FARMALL TRACTORS Steering Mechanism

ATTACHMENT, front axle, 370789R92, axles with 56 to 80 in. tread, see note A

1шт.

When tractor is previously equipped with single front wheel, also order Parts Accessory P/N 370787R92

1шт.

ATTACHMENT, front axle, 383922R91, axles with 50 to 74 in. tread, see note A

1шт.

When tractor is previously equipped with single front wheel, also order Parts Accessory P/N 370787R92

1шт.

1

359984R92

ROD

ASSY, tie, welded end, axles with 56 to 80 in. tread

2шт.

1

384441R92

ROD

ASSY, tie, welded end, axles with 50 to 74 in. tread

2шт.

2

358901R1

SLOTTED NUT

tie rod

4шт.

3

387280R2

COVER

dust

4шт.

4

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

4шт.

5

359986R1

CLAMP

tie rod, adj end

2шт.

25-118

NUT,1/2"-20, G5

1/2-20 hex.

2шт.

181436

BODY,Hex, 1/2" - 20 x 2 1/4", Gr 5

SCREW, 1/2-20 x 2-1/4 hex-hd cap

2шт.

6

383917R1

TUBE

tie rod, axles with 56 to 80 in. tread

2шт.

6

384439R1

TUBE,0.937" ID, 1.187" OD, 15.312" Length

tie rod, axles with 50 to 74 in. tread

2шт.

7

374062R1

JAM NUT

NUT, jam, axles with 56 to 80 in. tread

2шт.

7

384442R1

JAM NUT

NUT, ham, axles with 50 to 74 in. tread

2шт.

8

384006R92

END

ASSY, tie rod, axles with 56 to 80 in. tread

2шт.

8

384440R92

END

ASSY, tie rod, axles with 50 to 74 in. tread

2шт.

9

383915R92

ROD

ASSY, tie, axles with 56 to 80 in. tread

2шт.

9

384438R92

ROD

ASSY, axles with 50 to 74 in. tread

2шт.

32-822

COTTER PIN,1/8" x 1 3/8"

Pin, Split (Cotter), 1/8" x 1 3/8"

4шт.

10

358970R1

ARM

steering gear

1шт.

271607

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5

SCREW, 3/4-10 x 1-1/2 hex-hd cap

3шт.

11

51693D

BAR

WASHER, stay rod ball socket support

2шт.

12

370692R3

SUPPORT

stay rod ball socket

1шт.

25-118

NUT,1/2"-20, G5

1/2-20 hex.

2шт.

181435

BOLT,Hex, 1/2" - 20 x 2", Gr 5

SCREW, 1/2-20 x 2 hex-hd cap

2шт.

181429

BOLT,Hex, 1/2" - 20 x 1 1/4", Gr 5

SCREW, 1/2-20 x 1-1/4 hex-hd cap

2шт.

13

535861R1

FIXING BRACKET

SOCKET, stay rod ball, replaces 389277R1

1шт.

19992R1

BOLT

SCREW, 1/2-13 x 2-1/4 type 8 hex-hd cap

1шт.

14

60762D

SHIM

stay rod ball socket cap

4шт.

14

60763DB

CYLINDER END CAP

CAP, stay rod ball socket

1шт.

179893

BOLT,Hex, 1/2" - 13 x 3", Gr 5

SCREW, 1/2-13 x 3 hex-hd cap

2шт.

16

358345R1

PLATE ASSY.

PLATE, stay rod ball socket cap lock

1шт.

17

10546D

BALL

stay rod

1шт.

18

360405R11

ROD

STAY ROD ASSY

1шт.

427546

JAM NUT,Jam, 1 3/8"-12, G5

1-3/8-12 hex. jam

2шт.

19

383909R4

BOLSTER

lower

1шт.

271624

O-RING,0.103" Thk x 2.175" ID, -139, Cl 5, 75 Duro

SCREW, 3/4-10 x 2-3/4 hex-hd cap

4шт.

20

21105R1

HEADED PIN,9.53mm OD x 123.83mm L

PIN, 3/8 x 4-7/8 headed

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

21

383914R1

ARM

RH steering knuckle, Serial Range: -13414

1шт.

425-110

5/8-18 C-Z hex.

1шт.

223815

BOLT,Hex, 5/8" - 18 x 3", Gr 8

SCREW, 5/8-18 x 3 C-Z hex-hd cap

1шт.

21

405460R1

ARM

RH steering knuckle, Start Serial: 13415

1шт.

427546

JAM NUT,Jam, 1 3/8"-12, G5

1-3/8-12 hex. jam

1шт.

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

2шт.

Q326

WASHER

1-13/32 x 2-3/4 x 18 ga

1шт.

21

405629R1

ARM

RH steering knuckle, used w/adjustable wide tread front axle extension, 114 to 120 in.

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex., steering knuckle stop

1шт.

22

369131R91

THRUST BEARING

steering knuckle pivot thrust

2шт.

23

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

Steering knuckle pivot felt

2шт.

24

40093D

WOODRUFF KEY,#127, 1/4" x 2 1/8", HT

KEY, 1/4 x 2-1/8 Woodruff 127, Serial Range: -13414

2шт.

25

383912R92

KNUCKLE

KNUCKLY W/SEAL, 370254R91 & SHIELD, 48701D, steering LH, Serial Range: -13414

1шт.

25

401768R92

STEERING KNUCKLE

KNUCKLE W/OIL SEAL, 370254R91 and shield, 48701D, LH steering, Start Serial: 13415

1шт.

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-14 slt hex.

1шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

1шт.

26

358958R2

BUSHING,42.57mm ID x 46.08mm OD x 51.05mm L

steering knuckle pivot pin

4шт.

27

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 drive type str lub

2шт.

28

370689R31

EXTENSION

W/TWO BUSHINGS, 358958R2, front axle, axles with 56 to 80 in. tread

2шт.

28

383927R31

EXTENSION W/TWO BUSHINGS, 358958R2, front axle, axles with 50 to 74 in. tread

2шт.

29

358976R31

CENTER AXLE

AXLE ASSY, front, axles with 56 to 80 in. tread

1шт.

29

383926R21

AXLE ASSY, front, axles with 50 to 74 in. tread

1шт.

30

48841D

BUSHING,31.03mm ID x 34.62mm OD x 31.75mm L

front axle pivot pin

2шт.

31

358978R2

AXLE PIN,31.29mm OD x 217.49mm L

PIN, front axle pivot

1шт.

32

17049R91

LUBE NIPPLE,67.5 Degree, 1/8"-27 NPT x 1.03" lg, Leakproof

FITTING, 1/8-27 PTF 67-1/2 deg angle lub

1шт.

33

350557R1

PIN

front axle clamp

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

34

20673R1

BOLT,Hex, 3/4" - 16 x 4 1/4", Gr 8

front axle clamp bolt

4шт.

218197

NUT,3/4"-16, G5

3/4-16 hex.

4шт.

35

350556R1

CLAMP

front axle

4шт.

36

383913R92

KNUCKLE JOINT

KNUCKLE W/SEAL, 370254R91 & shield, 48701D, steering Rh, Serial Range: -13414

1шт.

36

401768R92

STEERING KNUCKLE

KNUCKLE W/OIL SEAL, 370254R91 and shield, 48701D, RH steering, Start Serial: 13415

1шт.

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-14 slt hex.

1шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

1шт.

37

383914R1

ARM

LH steering knuckle, Serial Range: -13414

1шт.

223815

BOLT,Hex, 5/8" - 18 x 3", Gr 8

SCREW, 5/8-18 x 3 C-Z hex-hd cap

1шт.

425-110

5/8-18 C-Z hex.

1шт.

37

405459R1

ARM

LH steering knuckle, Start Serial: 13415

1шт.

427546

JAM NUT,Jam, 1 3/8"-12, G5

1-3/8-12 hex. jam

1шт.

Q326

WASHER

1-13/32 x 2-3/4 x 18 ga

1шт.

37

405628R1

ARM

RH steering knuckle, used w/adjustable wide tread front axle extension, 114 to 120 in.

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex., steering knuckle stop

1шт.

38

146008R1

SNAP RING,M41.15 x 2.46mm Thk, Ext

RING, steering knuckle retaining

2шт.

370787R92

PARTS ACCESSORY, front wheel and rim

1шт.

Consists of (2) bearing 618023R91, (12) bolt 51485D, (2) cap 369859R1, (2) fitting 443566, (2) gasket 369860R1, (2) hub assy 391823R11, (2) nut 427645, (6) screw 21533R1, (6) washer 120214, (2) washer 370255R2, (2) wheel 370777R92

1шт.
