Запчасти Case IH 756 (J-09) - STEERING MECHANISM, HYDROSTATIC POWER STEERING HAND PUMP Steering Mechanism

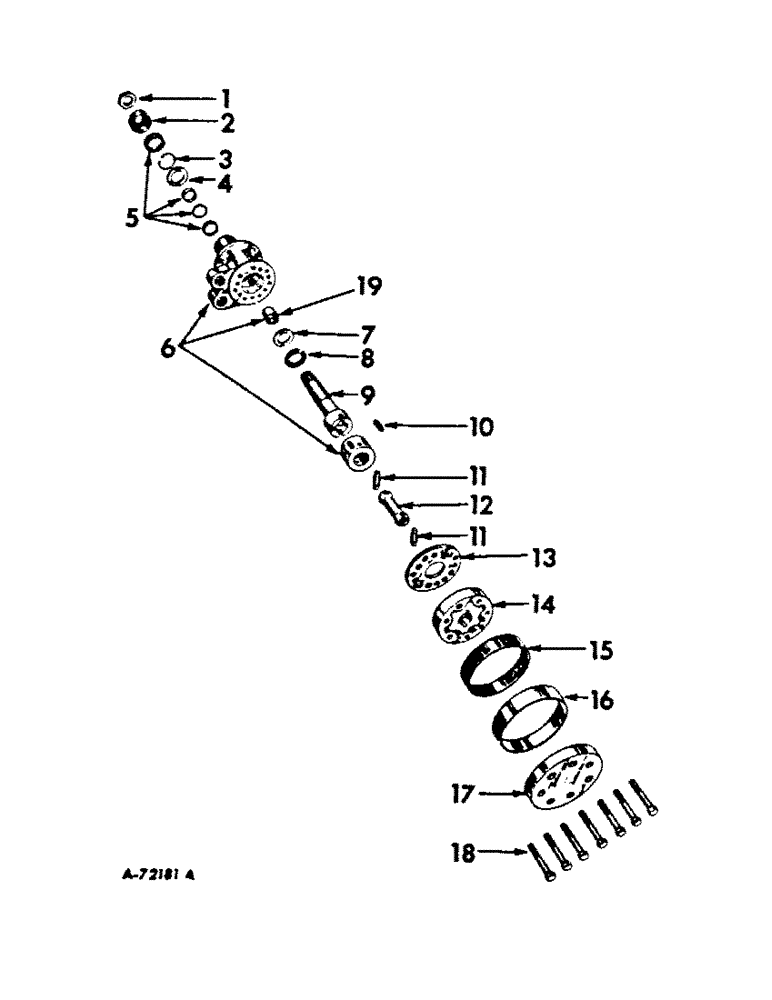

Схема запчастей Case IH 756 - (J-09) - STEERING MECHANISM, HYDROSTATIC POWER STEERING HAND PUMP Steering Mechanism
10
7
15
1
6
3
11
2
5
13
9
12
16
11
4
17
14
8
18
19

Артикул

Название

Примечание

Количество

382579R94

PUMP

ASSY, steering hand, Farmall tractors without tilt steering

1шт.

400187R93

PUMP

ASSY, power steering hand, Farmall tractors w/tilt steering

1шт.

378578R95

HYDRAULIC STEERING

PUMP ASSY, power steering hand, International tractors without tilt steering

1шт.

400188R93

PUMP ASSY, steering hand, International tractors with tilt steering

1шт.

1

F19646

LOCK NUT,13/16"-20, Thin

NUT, coupling shaft wheel

1шт.

2

382587R1

SEAL

dust, not included in pump assy

1шт.

3

383878R1

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125

1шт.

4

379786R1

WASHER

pump shaft

1шт.

5

535122R91

SERVICE KIT

PACKAGE, hydrostatic steering hand pump service

1шт.

6

379694R91

BODY

PUMP BODY & BEARING ASSEMBLY

1шт.

7

379785R1

THRUST WASHER

RACE, needle thrust

1шт.

8

379783R91

THRUST BEARING

BEARING, needle thrust

1шт.

9

379784R1

SHAFT

coupling, used with pumps, 382579R94 & 378578R95

1шт.

9

402981R1

SHAFT COUPLING, used with pumps, 400176R93 & 400188R93

1шт.

10

379700R1

PIN

pump spool

1шт.

11

379693R1

PIN

pump link

2шт.

12

379701R1

LINK

pump

1шт.

13

396545R1

PLATE

SPACER, pump

1шт.

14

384375R3

ROTOR

SET

1шт.

Used with pumps, 382579R94 and 400187R93.

1шт.

14

379697R3

ROTOR

SET

1шт.

Used with pumps, 378578R95 and 400188R93.

1шт.

15

384373R1

SEAL

rotor

1шт.

Used with pumps, 382579R94 and 400187R93.

1шт.

15

379781R1

BOOT

SEAL, rotor

1шт.

Used with pumps, 378578R95 and 400188R93.

1шт.

16

384374R1

RETAINER

seal

1шт.

Used with pumps, 382579R94 and 400187R93.

1шт.

16

379696R1

RING

RETAINER, seal

1шт.

Used with pumps, 378578R95 and 400188R93.

1шт.

17

379698R1

COVER

pump end

1шт.

18

379699R1

BOLT,Spcl, Hex, 5/16" - 18 x 1 3/4", Gr 5, HT

pump end cover

7шт.

19

10026R

NEEDLE BEARING,0.875" ID x 1.1245" OD x 0.5"

BEARING, needle

1шт.

405788R91

PACKAGE

spring and vane

1шт.

Used with pumps, 382579R94 and 400187R93.

1шт.

405785R91

PACKAGE, REPAIR

PACKAGE, spring and vane

1шт.

Used with pumps, 378578R95 and 400188R93.

1шт.

Выбрано товаров: 37
