Запчасти Case IH 756 (K-06) - DRAWBARS AND HITCHES, TWO POINT HITCH Drawbars & Hitches

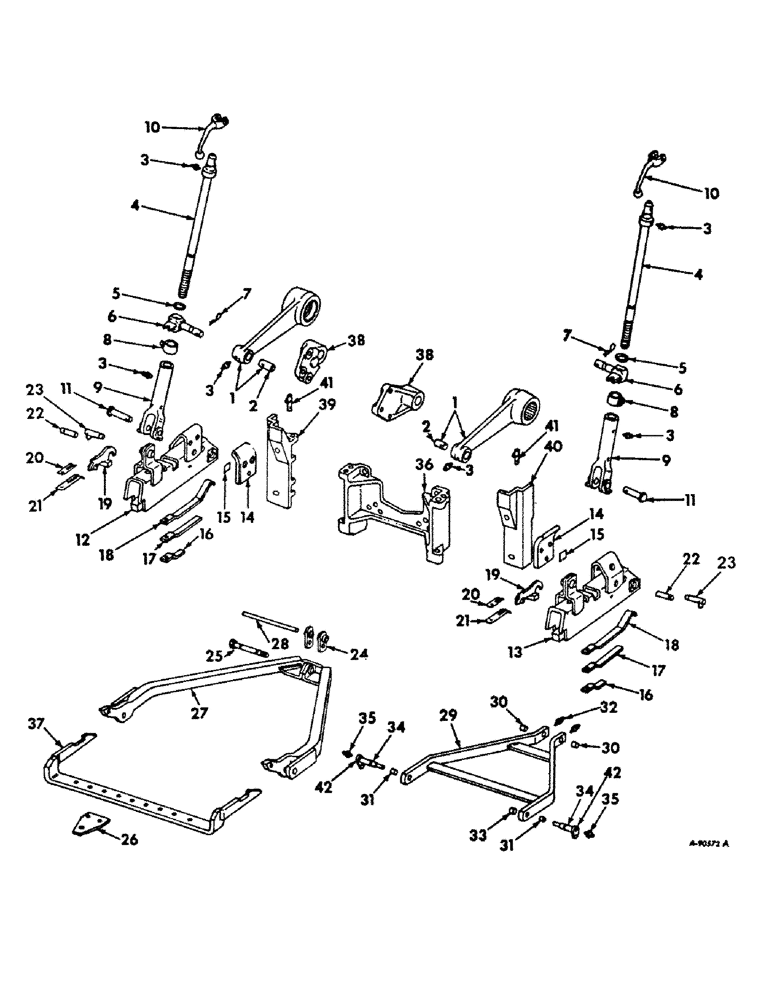

Схема запчастей Case IH 756 - (K-06) - DRAWBARS AND HITCHES, TWO POINT HITCH Drawbars & Hitches
34
10
27
4
22
18
39
3
12
41
20
40
24
31
37
23
1
30
26
21
6
3
3
15
19
21
18
14
10
11
42
5
20
3
35
17
2
33
25
15
3
9
31
7
34
4
42
16
9
28
13
3
16
29
11
5
17
7
22
8
41
2
38
32
1
14
35
19
21
30
6
38
36
8

Артикул

Название

Примечание

Количество

ATTACHMENT, two point fast hitch, tractors with draft control and draft sensing unit, 389256R92

1шт.

1

382156R11

ARM

ASSY, rockshaft

2шт.

2

383357R1

BUSHING,28.56mm ID x 33.38mm OD x 63.5mm L

rockshaft arm

2шт.

3

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 drive type str lub

6шт.

4

386097R11

ADJUSTMENT SCREW,1" - 5 x 24.48" L, w/ Collar

SCREW ASSY, leveling, 24.48 in. long

2шт.

617057R1

PIN,1/4" x 1", Coiled

2шт.

5

382168R2

WASHER

pivot

2шт.

6

383990R2

PIVOT ASSY.

PIVOT, leveling screw

2шт.

Q3482

WASHER

1-5/32 x 1-3/4 x 11 ga

2шт.

7

520175R1

CLIP

PIN, quick attachable cotter, leveling screw pivot

2шт.

8

383982R1

COLLAR

COLLAR, vertical float lock

2шт.

113020

SET SCREW,Sq Hd, 5/8"-11 x 1"

SCREW, 5/8 x 1 cone-pt sq-hd set

2шт.

9

395142R1

YOKE

leveling screw

2шт.

10

523861R2

HANDLE

HANDLE, leveling screw

2шт.

617939R1

PIN,5/16" x 1 1/2", Coiled

2шт.

11

383991R1

PIN,Headed, 7/8" x 3 3/8", Drilled

leveling screw yoke

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

12

383452R91

SOCKET ASSY, LH beam

1шт.

13

383458R91

SOCKET

ASSY, RH beam

1шт.

14

385727R1

SHOE, rub

2шт.

181427

BOLT,Hex, 1/2" - 20 x 1", Gr 5

SCREW, 1/2-20 x 1 hex-hd cap

4шт.

271640

ORIFICE

SCREW, 3/4-16 x 3-1/2 hex-hd cap

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

15

383460R1

SHIM, rub plate

4шт.

16

522834R1

VALVE SPRING

SPRING, beam socket leaf, short

2шт.

17

522835R1

SPRING

beam socket leaf, med

2шт.

18

522836R1

SPRING

beam socket leaf, long

2шт.

179887

CABLE

SCREW, 1/2-13 x 1-3/4 hex-hd cap

2шт.

19

393500R1

LATCH ASSY.

LATCH, beam coupling

2шт.

20

522839R1

VALVE SPRING

SPRING, latch

2шт.

21

522840R2

VALVE SPRING

SPRING, latch auxiliary

2шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

2шт.

22

383461R11

PIVOT PIN

PIN ASSY, beam socket pivot

2шт.

616254R1

LOCK PIN,3/8" x 1 5/8", Slotted

Pin, 3/8" x 1 5/8", Slotted

2шт.

23

522841R11

PIN

ASSY, quick attachable

2шт.

24

401637R1

STRAP ASSY, bail pivot

2шт.

25

389059R1

BOLT,Hex, 1" - 14 x 6.53", Drilled

bail pivot

1шт.

427651

SLOTTED NUT,1"-14, G5

NUT, 1-14 slt hex.

1шт.

103388

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

1шт.

26

383656R1

PLATE, drawbar extension, tractors with independent PTO

1шт.

425-1012

NUT,3/4"-10, G5

3/4-10 hex.

2шт.

271615

VALVE

SCREW, 3/4-10 x 3 hex-hd cap

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

27

389056R92

FRAME ASSY, hitch

1шт.

19479R1

PIN,1/4" x 2", Coiled

1шт.

28

383475R1

SHAFT

bail pivot

1шт.

29

389061R91

LINK W/BUSHINGS, sensing

1шт.

30

389063R1

BUSHING

sensing link, front

2шт.

31

383487R1

BUSHING

sensing link, rear

2шт.

32

19700R91

FITTING

3/16 drive lub 45 deg angle

2шт.

33

384351R1

SPACER

sensing link

1шт.

34

406685R1

PIN,25.4mm OD x 101.6mm L

lower link

2шт.

179882

PIN

SCREW, 1/2-13 x 1-1/8 hex-hd cap

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32 x 1-1/16 x .095

1шт.

35

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Straight 1/4"-28 NPT x .54" lg

2шт.

36

389064R1

BRACKET

limiter and drawbar

1шт.

570879R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

SCREW, 5/8-11 x 12-1/4 hex-hd type 4

8шт.

37

383492R11

DRAWBAR ASSY

1шт.

38

386172R1

BRACKET

lockout

2шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 2-1/2 hex-hd cap

6шт.

39

385739R1

SUPPORT ASSY.

SUPPORT, lateral limiter, LH

1шт.

519417R1

HEADED PIN,3/4" x 3 11/16"

PIN, 3/4 x 3-11/16 headed

2шт.

108639

BRACKET

1/4 x 1-1/8 cotter

2шт.

40

385740R1

BRACKET

SUPPORT, lateral limiter, RH

1шт.

519417R1

HEADED PIN,3/4" x 3 11/16"

PIN, 3/4 x 3-11/16 headed

2шт.

NLS

NO LONGER SERVICED

1/4 x 1-1/8 cotter

2шт.

41

522841R11

PIN

ASSY, quick attachable

2шт.

42

406687R1

RETAINER

lower link pin

2шт.

ATTACHMENT, two point hitch cross drawbar, consists of two brackets, 386172R1, drawbar, 383492R11 & six screws, 271564

1шт.

537983R91

PARTS ACCESSORY, two point hitch to three point hitch conversion, Farmall tractors, illustrated w/three point hitch

1шт.

Выбрано товаров: 71
