Запчасти Case IH 756 (K-04) - DRAWBARS AND HITCHES, VERTICALLY ADJUSTABLE DRAWBAR Drawbars & Hitches

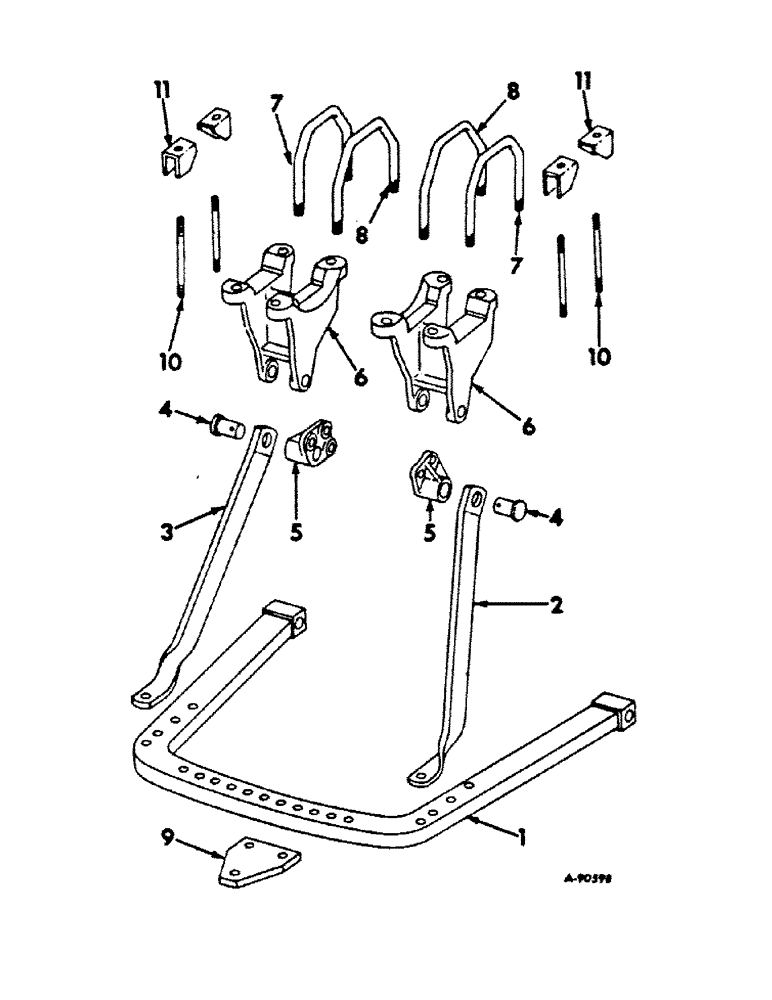

Схема запчастей Case IH 756 - (K-04) - DRAWBARS AND HITCHES, VERTICALLY ADJUSTABLE DRAWBAR Drawbars & Hitches
6
4
1
11
8
10
6
9
5
5
7
4
2
7
11
10
8
3

Артикул

Название

Примечание

Количество

ATTACHMENT, fixed non-adjustable drawbar with heavy duty swinging drawbar, 400279R93, composed of drawbar, 400282R1, ref nos 2 through 8 with attaching hardware and those parts marked unit B under swinging drawbar

1шт.

Order ref nos 10 & 11 for Farmall tractors w/deluxe fenders

1шт.

1

383058R11

DRAWBAR ASSY, vertically adjustable

1шт.

1

400282R1

DRAWBAR ASSEMBLY, heavy duty

1шт.

103348

WASHER,1" x 2" x .134"

1-1/16 x 2 x .134 thick

4шт.

2

383062R2

BRACE, drawbar LH

1шт.

425-1012

NUT,3/4"-10, G5

3/4-10 hex.

1шт.

20072R1

BOLT,Hex, 3/4" - 10 x 3 1/4", Gr 8

SCREW, 3/4-10 x 3-1/4 hex-hd cap

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

3

383063R2

BRACE, drawbar RH

1шт.

220081

NUT

3/4-10 hex.

1шт.

20072R1

BOLT,Hex, 3/4" - 10 x 3 1/4", Gr 8

SCREW, 3/4-10 x 3-1/4 hex-hd cap

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

4

383064R1

PIN

drawbar brace

2шт.

13121R1

Pin, Split (Cotter), 1/4" x 1 1/2", self opening 1/4" x 1 1/2"

2шт.

5

384025R1

BRACKET

lockout

2шт.

271562

SHIELD,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 hex-hd cap

6шт.

6

383059R1

BRACKET, drawbar mounting

2шт.

220083

NUT,1"-8, G5

1-8 hex.

2шт.

18757R1

SCREW, 1-8 x 5-3/4 hex-hd cap

2шт.

7

383061R2

U-BOLT, drawbar bracket outer

2шт.

425-1012

NUT,3/4"-10, G5

3/4-10 hex.

4шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

8

383060R2

U-BOLT, drawbar bracket inner

2шт.

220081

NUT

3/4-10 hex.

4шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

9

387048R1

PLATE, drawbar extension, tractors with independent PTO

1шт.

425-1012

NUT,3/4"-10, G5

3/4-10 hex.

2шт.

271616

SEAL KIT

SCREW, 3/4-10 x 3-1/4 hex-hd cap

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

10

398583R1

STUD, drawbar and deluxe fender, Farmall tractors

4шт.

220081

NUT

3/4-10 hex.

4шт.

11

398584R1

CHANNEL, drawbar reinforcement, Farmall tractors

4шт.

Выбрано товаров: 33
