Запчасти Case IH 756 (K-02) - DRAWBARS AND HITCHES, FIXED DRAWBAR, FARMALL HI-CLEAR TRACTOR Drawbars & Hitches

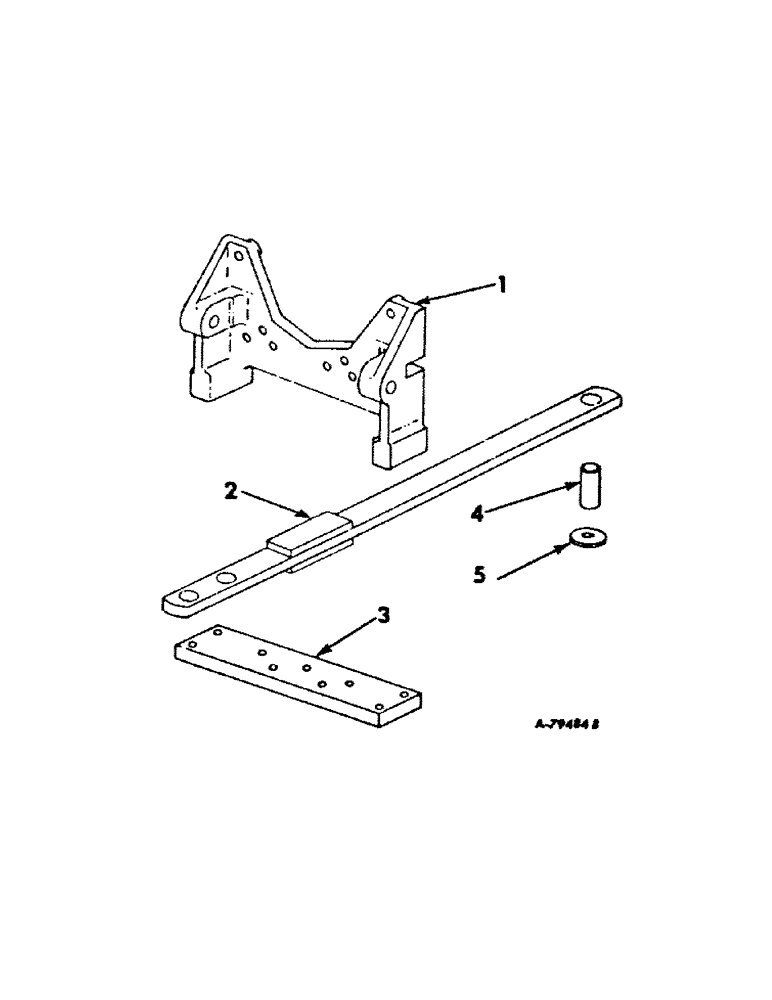

Схема запчастей Case IH 756 - (K-02) - DRAWBARS AND HITCHES, FIXED DRAWBAR, FARMALL HI-CLEAR TRACTOR Drawbars & Hitches
1
2
3
4
5

Артикул

Название

Примечание

Количество

1

383385R3

SPROCKET ASSY.

SUPPORT, drawbar, tractors w/o three point hitch, Serial Range: -17634

1шт.

1

539749R91

SUPPORT ASSY.

PACKAGE, drawbar support service, tractors w/o three point hitch, consists of (1) nut 114498, (1) screw 271585, (1) support 400713R2 (NSS), Start Serial: 17635

1шт.

271585

WASHER,Hex, 5/8" - 18 x 1.75", Gr 5

SCREW, 5/8-18 x 1-3/4 hex-hd cap, RH crank arm stop

1шт.

114498

JAM NUT,Jam, 5/8"-18, G5

1шт.

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

5/8-11 x 1-3/4 hex-hd cap

8шт.

2

530998R1

DRAWBAR ASSY

1шт.

425-1012

NUT,3/4"-10, G5

3/4-10 hex.

2шт.

271611

BOLT,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4-10 x 2 hex-hd cap

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

3

382198R1

BAR

PLATE, drawbar support, tractors w/o three point hitch

1шт.

271612

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

SCREW, 3/4-10 x 2-1/4 hex-hd cap

4шт.

4

57654D

PIVOT PIN

PIN, drawbar pivot

1шт.

5

49139D

WASHER,10.32mm ID x 38.1mm OD x 5mm Thk

PLATE, drawbar pivot pin lock

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

Выбрано товаров: 15
