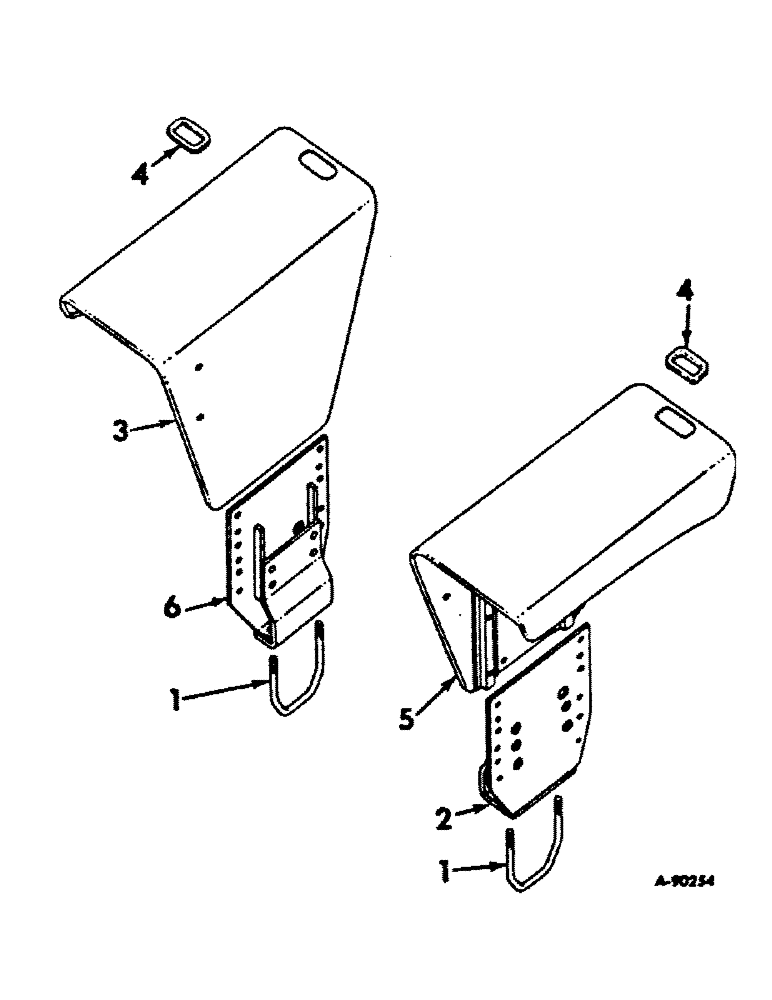

Запчасти Case IH 756 (A-12) - CHASSIS, RADIATOR & SHEET METAL, DELUXE FLAT TOP FENDERS W/ ADJUSTABLE HEAD LIGHTS, FARMALL TRACTORS Chassis, Radiator & Sheet Metal

399325R91

PARTS ACCESSORY, deluxe fenders with adjustable lights, tractors w/rear wheels over 69.0 in. OD

1шт.

399327R91

PARTS ACCESSORY, deluxe fenders with adjustable lights

1шт.

1

388944R2

BOLT

U-BOLT, fender mounting

2шт.

220081

NUT

3/4-10 hex.

4шт.

584253R1

WASHER

.781 x 1.75 x .188 flat

4шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

2

399340R1

SUPPORT ASSY, fender mounting RH

1шт.

2

399336R1

SUPPORT ASSY, fender mounting RH, tractors w/rear wheels over 69.0 in. OD

1шт.

3

399328R2

FENDER ASSY, LH

1шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2-13 x 1-1/4 znd short sq-nk crg

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

180174

BOLT,Hex, 1/2" - 13 x 1 1/8", Gr 5

SCREW, 1/2-13 x 1-1/8 znd hex-hd cap

6шт.

180176

SCREW,Hex, 1/2" - 13 x 1 3/8", Gr 5

1/2-13 x 1-3/8 znd hex-hd cap

2шт.

120396

WASHER

17/32 x 1-1/16 x .095 C-Z

8шт.

3

403559R1

FENDER ASSY, LH, used with protective frame, not included in parts accessory

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 znd hex-hd cap

2шт.

180180

SCREW,Hex, 1/2" - 13 x 1 7/8", Gr 5

1/2-13 x 1-7/8 znd hex-hd cap

1шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

SCREW, 1/2-13 x 2-1/4 znd hex-hd cap

1шт.

NLS

NO LONGER SERVICED

17/32 x 1-1/16 x .074 C-Z

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

4

388940R1

GRIP

fender handle

2шт.

5

399329R2

FENDER ASSY, RH

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2-13 x 1-1/4 znd short sq-nk crg

2шт.

180174

BOLT,Hex, 1/2" - 13 x 1 1/8", Gr 5

SCREW, 1/2-13 x 1-1/8 znd hex-hd cap

6шт.

180176

SCREW,Hex, 1/2" - 13 x 1 3/8", Gr 5

1/2-13 x 1-3/8 znd hex-hd cap

2шт.

NLS

NO LONGER SERVICED

17/32 x 1-1/16 x .095 C-Z

8шт.

5

403560R1

FENDER ASSY, RH, used with protective frame, not included in parts accessory

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 znd hex-hd cap

2шт.

180180

SCREW,Hex, 1/2" - 13 x 1 7/8", Gr 5

1/2-13 x 1-7/8 znd hex-hd cap

1шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

SCREW, 1/2-13 x 2-1/4 znd hex-hd cap

1шт.

120396

WASHER

17/32 x 1-1/16 x .074 C-Z

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

6

399339R1

SUPPORT ASSY, fender mounting LH

1шт.

6

399335R1

SUPPORT ASSY, fender mounting LH, tractors w/rear wheels over 69.0 in. OD

1шт.
