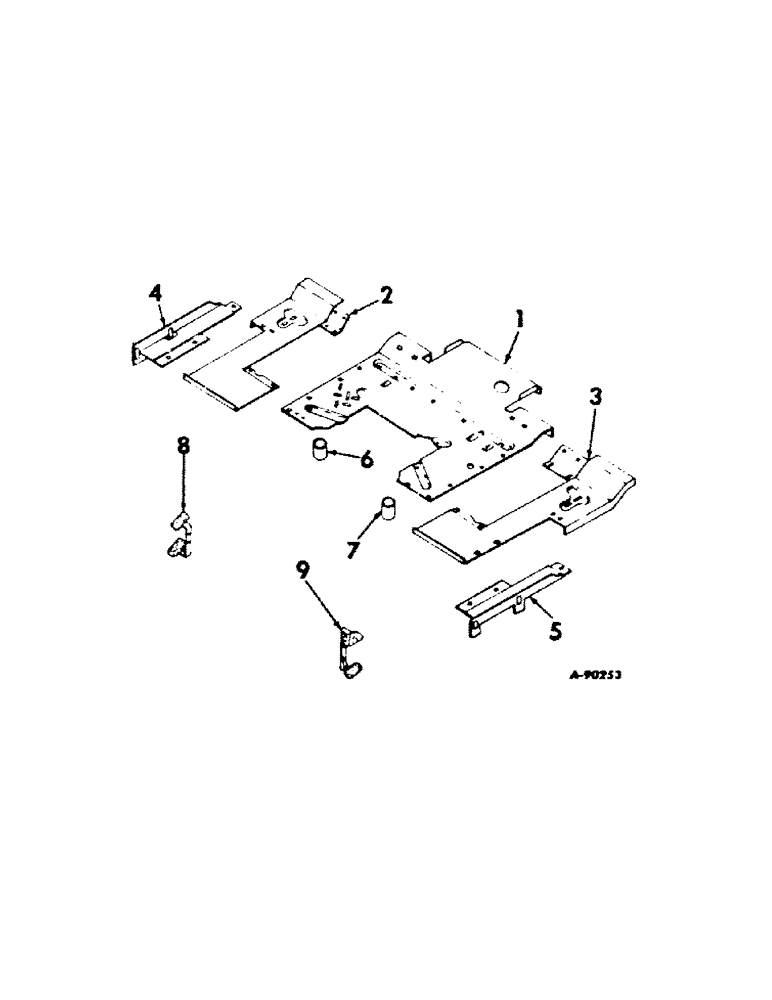

Запчасти Case IH 756 (A-10) - CHASSIS, RADIATOR AND SHEET METAL, PLATFORMS AND EXTENSIONS, FARMALL TRACTORS Chassis, Radiator & Sheet Metal

1

398492R1

PLATFORM, rear frame

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

2

398493R1

EXTENSIONS ASSY, platform LH

1шт.

15015R1

SCREW,Sq Nk, 3/8" - 16 x 1 1/8"

BOLT, 3/8 x 1-1/8 sq-nk crg

3шт.

102635

NUT,3/8"-16, G5

3шт.

969521R1

WASHER, .406 x .75 x .312

1шт.

50793H

WASHER

13/32 x 3/4 x .119

2шт.

3

398494R1

EXTENSION ASSY, platform RH

1шт.

15015R1

SCREW,Sq Nk, 3/8" - 16 x 1 1/8"

BOLT, 3/8 x 1-1/8 sq-nk crg

3шт.

102635

NUT,3/8"-16, G5

3шт.

969521R1

WASHER, .406 x .75 x .312

1шт.

50793H

WASHER

13/32 x 3/4 x .119

2шт.

4

400715R1

EXTENSION

ASSY, fender to platform mounting LH

1шт.

5

400716R1

EXTENSION ASSY, fender to platform mounting RH

1шт.

6

51852H

SPACER

platform

2шт.

14995R1

BOLT

3/8 x 3/4 sq-nk crg

18шт.

102635

NUT,3/8"-16, G5

18шт.

7

379718R1

SPACER,1/2" X-Strng Pipe x 1.281"

platform

4шт.

187491

BOLT,Hex, 3/8" - 16 x 5 1/2", Gr 5

SCREW, 3/8-16 x 5-1/2 hex-hd cap

2шт.

Q1597

WASHER

13/32 x 3/4 x 16 ga

2шт.

8

395230R1

STEP

ASSY, LH mounting

1шт.

271607

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5

SCREW, 3/4-10 x 1-1/2 hex-hd cap

1шт.

Q3501

WASHER

25/32 x 1-1/4 x 16 ga

1шт.

9

395123R1

STEP

ASSY, RH mounting

1шт.

NLS

NO LONGER SERVICED

SCREW, 3/4-10 x 1-1/2 hex-hd cap

1шт.

Q3501

WASHER

25/32 x 1-1/4 x 16 ga

1шт.
