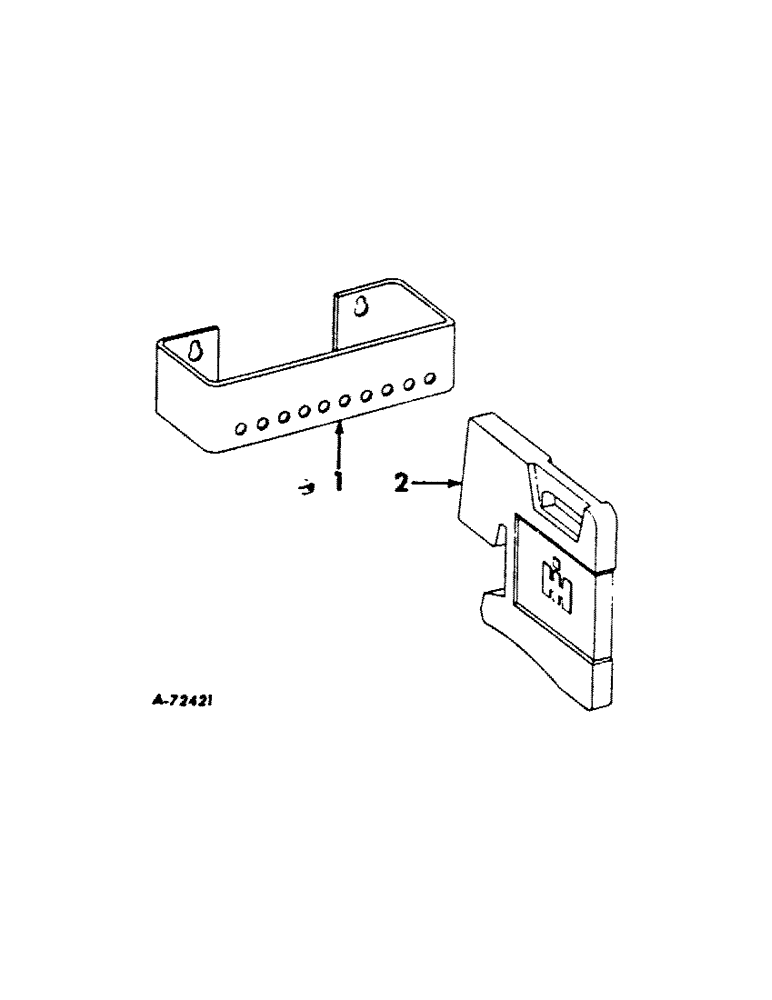

Запчасти Case IH 756 (M-09[A]) - SEATS AND MISCELLANOUS, FRONT END WEIGHT BRACKET AND WEIGHTS (10) - OPERATORS PLATFORM

1

383389R21

BRACKET

ASSEMBLY, front weight

1шт.

21452R1

BOLT,Hex, 3/4" - 10 x 2", Gr 8

SCREW, 3/4-10 X 2 znd hex-hd cap

4шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

25/32 x 1-1/4 x 11 ga

2шт.

2

383392R2

WEIGHT

front end, 67 lbs

1шт.

2

383393R2

WEIGHT

front end, 100 lbs

1шт.

125536

SQUARE NUT

1/2-13 C-Z sq, one used per weight

1шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

SCREW, 1/2-13 x 4 znd hex-hd cap, one used per weight

1шт.
