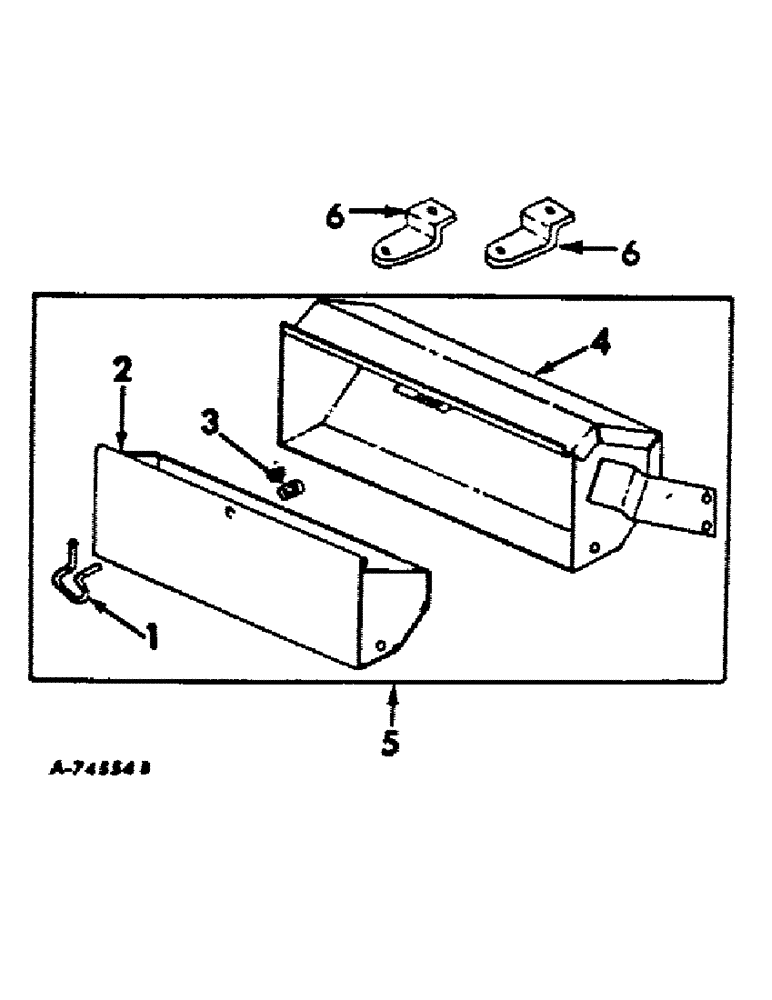

Запчасти Case IH 756 (M-07) - SEATS AND MISCELLANEOUS, TOOL BOX (10) - OPERATORS PLATFORM

1

383114R1

HANDLE

tool box

1шт.

114856

PIN, 3/64 x 1/2 cotter

1шт.

103338

WASHER,#10

7/32 x 1/2 x 16 ga

1шт.

2

383110R11

DRAWER ASSY, tool box

1шт.

113354

RIVET

3/16 x 1/4 ov-hd tubular

2шт.

3

27452D

VALVE SPRING

SPRING, tool box handle

1шт.

4

383105R11

COVER ASSY, tool box, carbureted engine tractors

1шт.

4

383116R91

COVER ASSY, tool box, diesel engine tractors

1шт.

5

383104R91

TOOL BOX ASSY, carbureted engine tractors

1шт.

179814

SPACER

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .065

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

1шт.

5

383115R91

BOX

TOOL BOX ASSY, diesel engine tractors

1шт.

W6075

SPACER, tool box mtg

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

2шт.

6

530926R2

BRACKET, tool box, diesel engine tractors with excel cabs

2шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

2шт.
