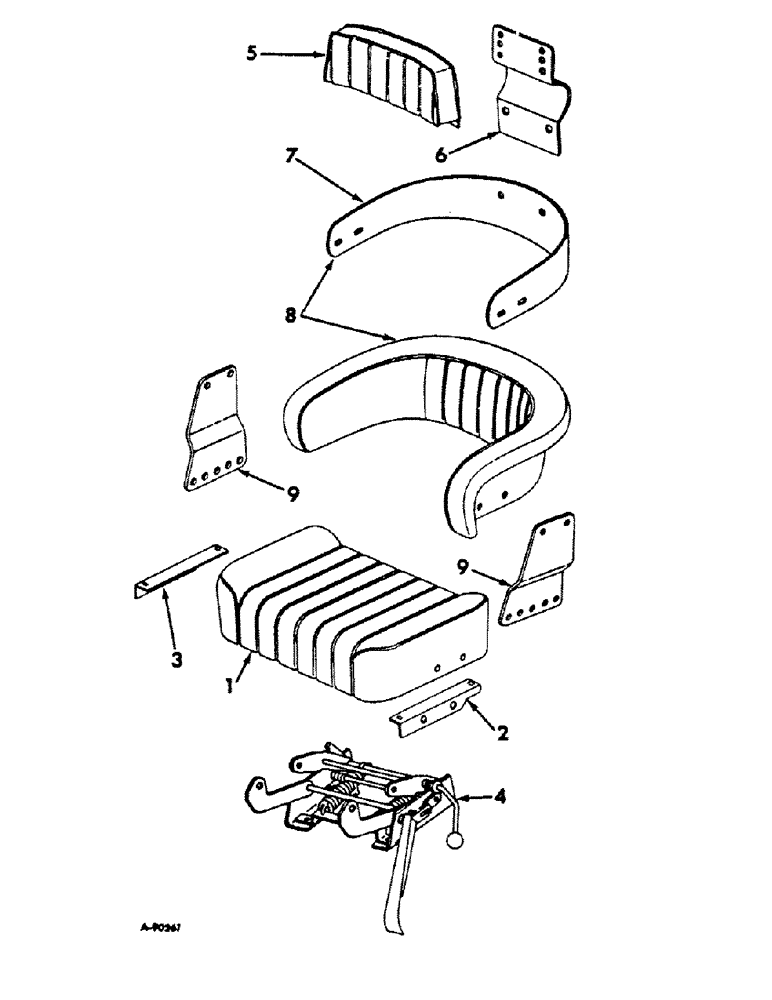

Запчасти Case IH 756 (M-04) - SEATS AND MISCELLANEOUS, LOW NO-SAG SEAT (10) - OPERATORS PLATFORM

1

380680R93

CUSHION

ASSEMBLY, seat

1шт.

2

404224R1

ANGLE ASSY, LH support

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 hex-hd cap

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

3

404225R1

ANGLE ASSY, RH support

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 hex-hd cap

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

381292R91

BASE ASSY, adjustable, for components see list of parts under details of adjustable seat base

1шт.

5

387177R91

CUSHION

ASSY, upper back

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16-18 x 5/8 C-Z hex-hd

1шт.

6

387178R1

SUPPORT

upper back cushion

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C-Z hex-hd cap

2шт.

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

7

387175R1

LARGE PLATE

PLATE, cover

1шт.

8

387174R91

CUSHION

ASSY, back

1шт.

9

387176R1

SUPPORT

back cushion

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 C-Z hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C-Z hex-hd cap

4шт.

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.
