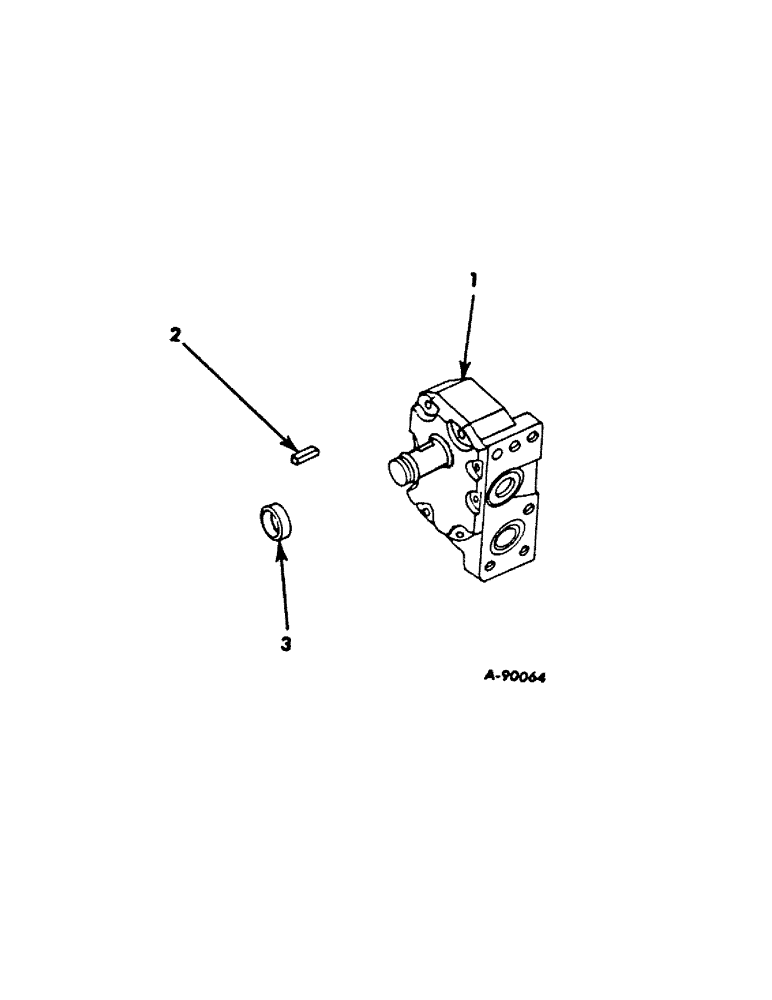

Запчасти Case IH 756 (F-11[A]) - HYDRAULICS SYSTEM, HYDRAULIC PUMP, THOMPSON, 9 GPM (07) - HYDRAULIC SYSTEM

1

391353R92

PUMP

ASSY, hydraulic, includes ref nos 2 and 3

1шт.

1

1949304C1

REMAN-HYD PUMP

Reman for New PN 391353R92

1шт.

1

1949305C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

383539R1

KEY

pump drive shaft

1шт.

3

373157R91

OIL SEAL

SEAL, pump drive shaft

1шт.

383599R91

KIT, seal pack service, consists of (NSS) (1) plate 383561R1, (NSS) (1) plate 405448R1, (NSS) (1) web 383562R1, (NSS) (1) web 383563R1, (NSS) (1) web 383564R1, (NSS) (1) web 395347R1

1шт.

383558R92

PACKAGE

hydraulic pump o-ring & gasket, consists of (1) kit 383559R91, (1) o-ring 350667R1, (1) o-ring 372821R1, (1) seal 373157R91

1шт.
