Запчасти Case IH 756 (F-03) - HYDRAULICS SYSTEM, SEAT AND HYDRAULIC COMPONENT SUPPORT (07) - HYDRAULIC SYSTEM

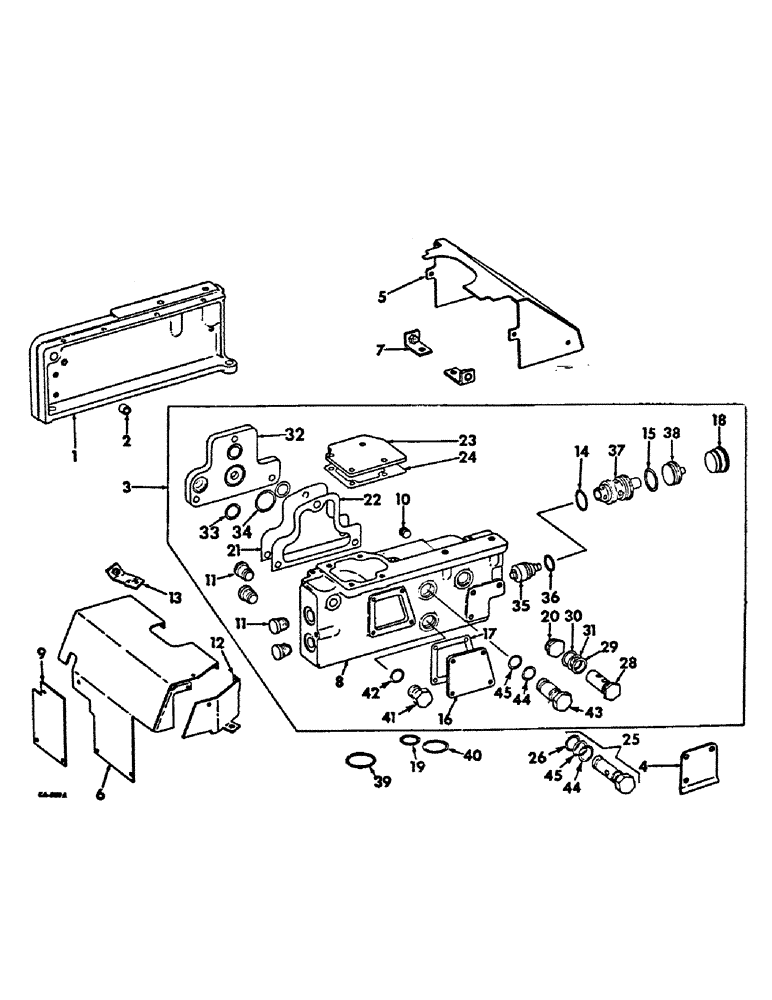

Схема запчастей Case IH 756 - (F-03) - HYDRAULICS SYSTEM, SEAT AND HYDRAULIC COMPONENT SUPPORT (07) - HYDRAULIC SYSTEM
25
34
11
15
44
36
11
20
39
21
42
4
38
44
28
26
8
31
18
14
45
29
3
32
1
19
10
12
43
33
17
5
13
45
37
2
40
35
30
9
23
41
6
22
7
16
24

Артикул

Название

Примечание

Количество

1

382912R3

RING

SUPPORT, LH seat, for service replacement on Farmall tractors also order bushing, 405513R1, Serial Range: -18332

1шт.

1

382912R3

RING

SUPPORT, LH seat, for service replacement on International tractors also order bushing, 405513R1, Serial Range: -8425

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

2

382913R1

BUSHING, seat support split 7/16 ID x 1/2 OD x 1/2 in. long, Farmall tractor, Serial Range: -18332

1шт.

2

382913R1

BUSHING, seat support split 7/16 ID x 1/2 OD x 1/2 in. long, International tractor, Serial Range: -8425

1шт.

2

405513R1

BUSHING, seat support split -7/16 ID x 1/2 OD x 3/4 in. long, Farmall tractor, Serial Range: -18332

1шт.

2

405513R1

BUSHING, seat support split -7/16 ID x 1/2 OD x 3/4 in. long, International tractor, Serial Range: -8425

1шт.

3

399601R94

SUPPORT ASSY, seat and hydraulic components RH, tractors with draft control, composed of ref nos. 8, 14, 15, 16, 17, 28, 29, 30, 31, 35, 36, 37, 41, 42, 43, 44, 45 and attaching hardware

1шт.

3

399602R93

SUPPORT ASSY, seat and hydraulic components RH, tractors with auxiliary valves, composed of ref nos 8, 15, 16, 17, 23, 24, 28, 29, 30, 31, 38, 41, 42 and attaching hardware

1шт.

3

399603R92

SUPPORT ASSY, seat and hydraulic components RH, tractors without auxiliary valves or draft control, composed of ref nos 8, 11, 16, 17, 18, 20, 21, 22, 23, 24 and attaching hardware

1шт.

279991R1

SCREW

W/PELLET INSERT, 1/2-13 x 1-1/2 hex-hd cap

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

4

382919R1

COVER, auxiliary valve handle support pad, tractors without auxiliary valves

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

3шт.

5

398013R3

SUPPORT

COVER ASSY, seat support front

1шт.

463-42510

SCREW,Hex, 1/4" - 20 x 5/8"

1/4-20 x 5/8 C-Z hex. washer hd cap

6шт.

6

398015R2

COVER, seat support rear

1шт.

6

399069R1

COVER, seat support rear, tractors with Allen cabs

1шт.

180014

SCREW,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

1/4-20 x 3/8 C-Z hex-hd cap

2шт.

7

383176R11

CLIP ASSY, seat support front cover mounting

2шт.

179813

BOLT,Hex, 5/16" - 18 x 9/16", Gr 5

2шт.

8

399609R41

SUPPORT ASSY.

SUPPORT W/TWO PLUGS, 444660, RH seat, part of support, 399601R94

1шт.

444660

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG, 3/8-18 sq-soc-hd pipe

1шт.

8

399608R41

SUPPORT W/PLUG 444660, RH seat, part of supports 399602R93 and 399603R92

1шт.

9

398105R1

COVER, seat support rear, tractors without auxiliary valves

1шт.

127976

SHAFT

SCREW, 12-11 x 1/2 C-Z slt pan hd tap

2шт.

180014

SCREW,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

1/4-20 x 3/8 C-Z hex-hd cap

1шт.

10

444660

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG, 3/8-18 auto sq-soc pipe

1шт.

11

1017989R1

PLUG

7/8-14 self aligning, tractors without auxiliary valves or draft control

1шт.

12

398104R1

PLATE, RH seat support cover, tractors without auxiliary valves or draft control

1шт.

127976

SHAFT

SCREW, 12-11 x 1/2 C-Z slt pan hd tap.

2шт.

13

398102R1

BRACKET, rear cover mounting

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

14

391923R1

O-RING,0.103" Thk x 1.299" ID, -125, Cl 6, 90 Duro

1-5/16 x 1-1/2 x 3/32, carrier inner, used on tractors with draft control

1шт.

15

307915R1

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1-15/32 x 1-11/16 x 7/64, carrier outer, used on tractors with draft control or axiliary valves

1шт.

16

382790R1

PLATE, access hole

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

17

382791R1

GASKET

access hole plate

1шт.

18

1017971R1

PLUG, plastic tapered, tractors without auxiliary valves or draft control

1шт.

19

381884R1

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

1 x 1-3/16 x 3/32, hydraulic component housing small

1шт.

20

379144R1

PLUG, hydraulic transfer block, tractors without draft control and auxiliary valves

1шт.

21

382920R1

COVER, auxiliary valve mounting pad, tractors without draft control and auxiliary valves

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

22

382921R1

GASKET, auxiliary valve mounting pad cover, tractors without draft control and auxiliary valves

1шт.

23

382918R1

COVER, hyd quadrant support opening, not used on tractors with draft control

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

24

382793R1

GASKET

quadrant support opening cover, not used on tractors with draft control

1шт.

25

530451R91

SCREW

PARTS ACCESSORY, simultaneous raise, consists of (1) o-ring 364879R1, (1) o-ring 364024R1, (1) o-ring 392385R1, (1) plug 530452R1 (NSS)

1шт.

26

392385R1

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

-016, 90 Duro, .614" ID x .070" Thk

1шт.

27

(Not used in this application)

1шт.

28

389033R93

VALVE

ASSY, relief, for components see list of parts under details of pilot relief valve, used on tractors with draft control or auxiliary valves

1шт.

29

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

7/8 x 1-1/16 x 3/32, relief valve inner, used on tractors with draft control or auxiliary valves

1шт.

30

362796R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 x 3/32, relief valve inner, used on tractors with draft control or auxiliary valves

1шт.

31

378985R2

BACK-UP RING

relief valve inner o-ring backup, used on tractors with draft control or auxiliary valves

1шт.

32

376023R4

COVER

control valve end, tractors without auxiliary valves

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

3шт.

33

381884R1

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

valve end cover, small, tractors without auxiliary valves

2шт.

34

381885R1

O-RING,0.103" Thk x 1.362" ID, -126, Cl 6, 90 Duro

valve end cover, large, tractors without auxiliary valves

1шт.

35

376762R11

PISTON ASSY.

PISTON ASSY, unloading valve, used on tractors with draft control

1шт.

36

406181R1

O-RING,21.82mm ID x 3.53mm Width

unloading valve piston, S, treated, used on tractors with draft control

1шт.

37

391920R91

SEAT

ASSY, unloading valve, used on tractors with draft control

1шт.

38

391922R1

PLUG

regulator port, tractors with auxiliary valves

1шт.

39

384377R1

O-RING,0.103" Thk x 2.55" ID, -141, Cl 6, 90 Duro

2-15/16 x 2-1/2 x 3/32

1шт.

40

386867R1

O-RING,0.103" Thk x 1.11" ID, -122, Cl 6, 90 Duro

1-1/8 x 1-5/16 x 3/32

1шт.

41

9410360

PLUG

7/8-14 C-Z str-thd o-ring boss, used on tractors with draft control or auxiliary valves

1шт.

42

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, used on tractors with draft control or auxiliary valves

1шт.

43

530444R1

PLUG, sequence lift, tractors w/out simultaneous raise

1шт.

44

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

7/8 x 1-1/16 x 3/32

1шт.

45

383024R1

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

11/16 x 13/16 x 1/16

1шт.
