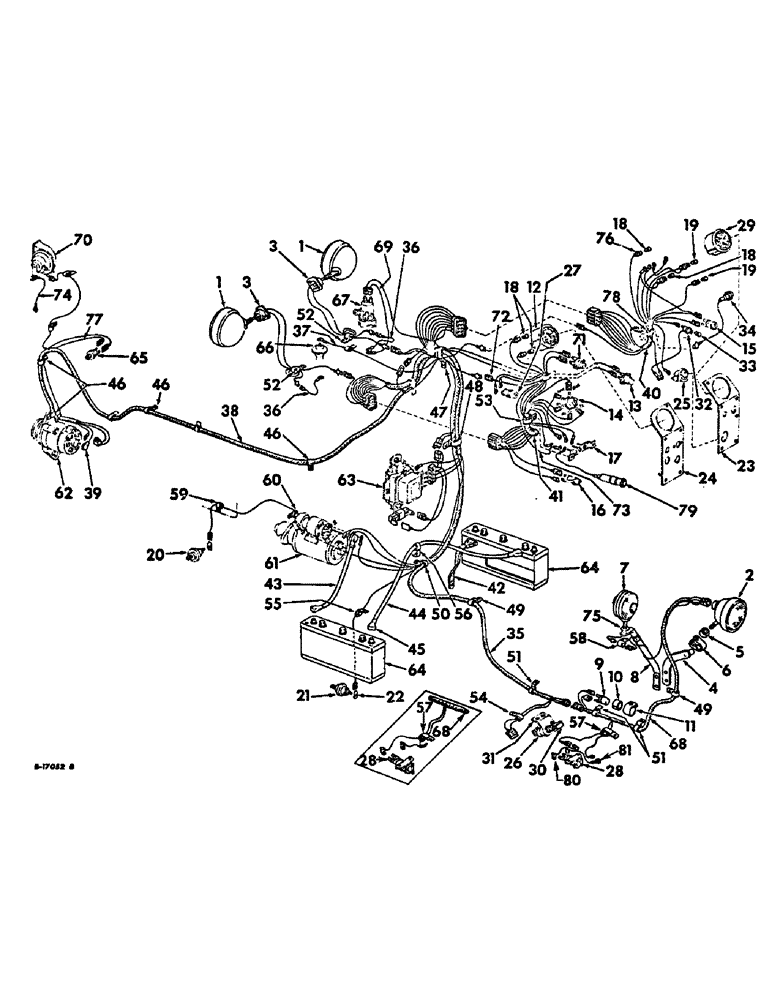

Запчасти Case IH 756 (G-11) - ELECTRICAL SYSTEM, STARTING AND LIGHTING, FARMALL DIESEL TRACTORS (06) - ELECTRICAL SYSTEMS

405883R91

PARTS ACCESSORY, electric breakaway connector socket, tractors not equipped w/deluxe fenders, consists of ref nos. 28, 57, 80, 81 and attaching hardware, Start Serial: 14312

1шт.

405884R91

PARS ACCESSORY, electric breakaway connector socket, tractors equipped w/deluxe fenders, Start Serial: 14290

1шт.

1

387728R91

LIGHT

ASSY, shock proof head, only serviceable items are sealed beam unit, 371443R91 and rubber retainer, 313957R1

2шт.

120371

NUT,1/2"-20, G5

2шт.

120396

WASHER

17/32 x 1-1/16 x .095 C-Z

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

2

387729R91

LIGHT

ASSY, combination rear and tail, only serviceable items are lamp, 455490, sealed beam unit, 371461r91 and rubber retainer, 676078R1

1шт.

102637

NUT,1/2"-13, G5

1шт.

3

382406R1

SUPPORT

BRACKET, head light mounting

2шт.

113911

SCREW, 5/16-18 x 1/2 slt-f-hd mach

4шт.

4

397479R11

SUPPORT

ASSY, rear light bracket

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

2шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .060) 3/8"

2шт.

5

365503R1

SPACER

combination rear light

1шт.

6

350920R1

CLAMP

combination rear light

1шт.

7

394129R91

LIGHT

ASSY, flashing safety warning, only serviceable items are lamp, 9417866 and lens, amber 899280R1 or lens, red 899279R1, Dietz

1шт.

120371

NUT,1/2"-20, G5

1шт.

135629

GATHERING CHAIN

1/2 C-Z ext-tooth lock

1шт.

8

394135R1

BRACKET, flashing warning light

1шт.

9

394132R91

FLASHER UNIT

FLASHER, safety warning light

1шт.

10

394134R1

SEAL

ABSORBER, flasher mounting

1шт.

11

394133R1

FASTENER

BRACKET, flasher mounting

1шт.

12

GAGE ASSY, cluster, refer to engine controls and instruments listing, section H

1шт.

13

SWITCH ASSY, push button, refer to engine controls and instruments listing, section H

1шт.

14

SWITCH ASSY, lighting, refer to engine controls and instruments listing, section H

1шт.

15

SWITCH ASSY, key, refer to engine controls and instruments listing, section H

1шт.

16

HOUSING ASSY, fuse, refer to engine controls and instruments listing, section H

1шт.

17

BLOCK ASSY, junction, refer to engine controls and instruments listing, section H

1шт.

18

9417863

BULB,C2F, #1895, 14V

LAMP, no. 1895 12-volt, tachometer and gauge cluster

4шт.

19

9412348

BULB,C2B, #257, 14V

LAMP, no 257 12-volt, oil and amp tellite flasher

2шт.

20

SWITCH ASSY, engine oil pressure, refer to crankcase and related parts listing, in ENG-5 parts catalog

1шт.

21

376855R92

SWITCH

transmission oil pressure

1шт.

22

384396R1

SPADE TERMINAL,Male

TERMINAL, oil pressure switch str

2шт.

23

PANEL ASSY, instrument RH, refer to engine controls and instruments listing, section H

1шт.

24

PANEL ASSY, instrument LH, refer to engine controls and instruments listing, section H

1шт.

25

INDICATOR ASSY, electric air cleaner, refer to engine controls and instruments listing, section H

1шт.

26

382728R91

SWITCH

ASSY, safety staring

1шт.

27

SWITCH ASSY, horn, refer to engine controls and instruments listing, section H

1шт.

28

362002R92

SOCKET

ASSY, electrical breakaway

1шт.

109084

NUT,1/4"-20, G5

2шт.

64022H

SCREW, 8-32 x 5/16 C-Z slt-fil-hd mach

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

SCREW, 1/4-20 x 3/4 hex-hd cap

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

29

SPEEDOMETER TACHOMETER ASSY, refer to engine controls and instruments listing, section H

1шт.

30

384046R1

STEM

ROD, safety switch

1шт.

16558R1

WASHER

17/64 x 5/8 x .065

1шт.

103361

PIN, SPLIT (COTTER)

PIN, 1/16 x 1/2 cot.

1шт.

31

384045R1

SUPPORT

BRACKET, safety starting switch

1шт.

14991R1

BOLT

3/8 x 5/8 sq-nk crg

1шт.

102635

NUT,3/8"-16, G5

1шт.

32

392441R91

LIGHT

ASSY, transmission oil pressure

1шт.

33

9412348

BULB,C2B, #257, 14V

LAMP, no. 257 12-volt, transmission oil light flasher

1шт.

34

397946R1

LIGHT

ASSY, gear selector

1шт.

35

398917R1

HARNESS

ASSY, rear main cable

1шт.

36

370387R91

CABLE

ASSY, head light to ground junction

2шт.

37

383593R91

CABLE ASSY, fuel gauge sending unit to multiple connector

1шт.

38

398929R1

HARNESS

ASSY, front main cable

1шт.

39

399470R1

BOOT

INSULATOR, terminal cover boot

1шт.

40

398923R1

HARNESS

ASSY, panel cable LH

1шт.

41

398924R1

HARNESS

ASSY, panel cable RH

1шт.

42

629029R92

NEG BATTERY CABLE

STRAP ASSY, battery to ground, replaces 378760R91

1шт.

356062R91

BOLT

ASSY, terminal

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

1шт.

43

383726R91

CABLE

ASSY, battery to solenoid switch

1шт.

356062R91

BOLT

ASSY, terminal

1шт.

364910R1

BOOT

COVER, battery terminal

1шт.

44

534376R1

NEG BATTERY CABLE

CABLE ASSY, battery to battery, replaces 383617R91

1шт.

356062R91

BOLT

ASSY, terminal

2шт.

45

383619R1

COVER

battery cable terminal large

1шт.

46

670043C1

CLIP

front main harness short

3шт.

47

527433R1

CLIP

front & rear main harness double

1шт.

48

363117R1

CLIP

front & rear main harness short

1шт.

179789

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

49

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, rear main harness, small

2шт.

50

362123R1

CLIP

main harness large

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

51

383622R1

CLIP

rear main harness short

3шт.

52

384557R1

CLIP

LH panel harness

1шт.

53

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, hd light cable

2шт.

54

366460R1

CABLE CLIP

CLIP, safety switch cable

1шт.

55

384556R1

CLAMP

CLIP, transmission oil pressure switch cable

1шт.

56

370383R1

CLIP

battery to battery cable

1шт.

57

395228R1

CABLE CLIP

CLIP, breakaway connector cables

1шт.

58

358986R1

CABLE CLIP

CLIP, cable

1шт.

59

384554R1

CLIP

engine oil pressure switch cable

1шт.

60

365584R1

CLIP

engine oil pressure switch cable

1шт.

61

CRANKING MOTOR, refer to cranking motor listing, this section

1шт.

62

ALTERNATOR GENERATOR, refer to alternator generator listing, this section

1шт.

63

VOLTAGE REGULATOR, refer to voltage regulator listing, this section

1шт.

64

BPR3EHW

WET BATTERY

prestolite 1227X 6 volt, Serial Range: -16537

2шт.

65

SWITCH ASSY, electric air cleaner, refer to engine controls and instruments listing, section H

1шт.

66

SENDING UNIT, fuel gage, refer to fuel tanks, supports and piping listing, section E

1шт.

67

SOLENOID, ether starting, refer to ether starting listing, section E

1шт.

68

398926R1

HARNESS

ASSY, combination and flashing light, Serial Range: -14289

1шт.

68

405880R1

HARNESS

ASSY, combination and flashing light, Start Serial: 14290

1шт.

69

396505R1

CABLE ASSY, ether starting

1шт.

70

ELECTRIC HORN, refer to electric horn listing, this section

1шт.

71

SWITCH ASSY, horn, refer to engine controls and instruments listing, section H

1шт.

72

398681R1

HARNESS

CABLE ASSY, horn switch to harness junction

1шт.

73

382676R1

CABLE ASSY, horn switch to junction block

1шт.

74

396530R1

CABLE ASSY, Serial Range: horn-ground

1шт.

75

394262R1

WASHER

GASKET, flashing safety warning light

1шт.

76

383620R91

ELECTRICAL WIRE

SOCKET ASSY, tachometer light

2шт.

77

377120R92

CABLE ASSY, vacuum, Serial Range: switch-ground

1шт.

78

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, RH panel harness

1шт.

79

CIGARETTE LIGHTER, refer to engine controls and instruments listing, section H

1шт.

80

405889R1

CABLE PULLING GRIP

CABLE ASSY, harness junction to breakaway connector socket, tractors not equipped w/deluxe fenders, Start Serial: 14312

1шт.

80

405877R1

HARNESS

CABLE ASSY, harness junction to breakaway connector socket, tractors equipped w/deluxe fenders, Start Serial: 14290

1шт.

81

404395R1

CABLE

ASSY, breakaway connector socket to ground, Start Serial: 14290

1шт.
