Запчасти Case IH 756 (G-08) - ELECTRICAL SYSTEM, STARTING AND LIGHTING, FARMALL CARBURETED ENGINE TRACTORS (06) - ELECTRICAL SYSTEMS

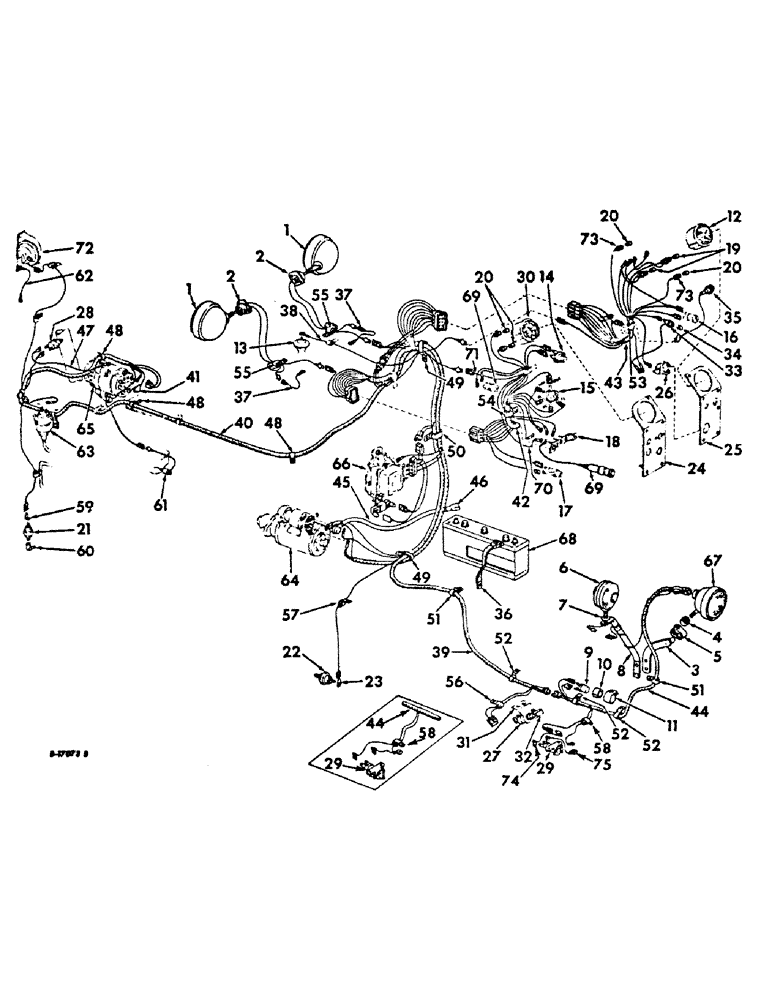

Схема запчастей Case IH 756 - (G-08) - ELECTRICAL SYSTEM, STARTING AND LIGHTING, FARMALL CARBURETED ENGINE TRACTORS (06) - ELECTRICAL SYSTEMS
64
69
48
28
27
73
34
72
35
44
7
74
67
2
39
29
62
37
23
11
59
33
20
53
25
65
2
48
46
9
8
73
3
41
58
54
4
66
49
30
37
57
55
47
20
48
51
70
21
26
58
40
18
56
55
36
61
32
63
44
10
13
19
68
24
71
20
12
42
16
29
38
45
52
43
22
14
6
17
1
50
60
75
51
5
1
52
49
69
15
31
52

Артикул

Название

Примечание

Количество

405883R91

PARTS ACCESSORY, electric breakaway connecting socket, tractors not equipped w/deluxe fenders, consists of ref nos. 29, 58, 74, 75 and attaching hardware, Start Serial: 14312

1шт.

405884R91

PARTS ACCESSORY, electric breakaway connector socket, tractors equipped w/deluxe fenders, consists of ref no 29, 74, 75 and attaching hardware, Start Serial: 14290

1шт.

1

387728R91

LIGHT

ASSY, shock proof head, only serviceable items are sealed beam unit, 371443R91 and rubber retainer, 313957R1

2шт.

280963

NUT,Nut, 1/2-20 GR 5 ZND

2шт.

NLS

NO LONGER SERVICED

17/32 x 1-1/16 x .095 C-Z

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

2

382406R1

SUPPORT

BRACKET, head light mounting

2шт.

113901

SCREW, 5/16-18 1/2 slt-F-hd mach

4шт.

3

397479R11

SUPPORT

ASSY, rear light bracket

1шт.

NLS

NO LONGER SERVICED

2шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .060) 3/8"

2шт.

4

365503R1

SPACER

combination rear light

1шт.

5

350920R1

CLAMP

combination rear light

1шт.

6

394129R91

LIGHT

ASSY, flashing warning, only serviceable items are lamp, 9417866 and lens, amber, 899280R1 or lens, red, 899279R1, dietz

1шт.

358986R1

CABLE CLIP

CLIP, cable

1шт.

120371

NUT,1/2"-20, G5

1шт.

135639

WASHER, 1/2 C-Z ext-tooth lock

1шт.

7

394262R1

WASHER

GASKET, flashing warning light

1шт.

8

394135R1

BRACE, flashing warning mounting

1шт.

9

394132R91

FLASHER UNIT

FLASHER, warning light

1шт.

10

394134R1

SEAL

ABSORBER, flasher mounting

1шт.

11

394133R1

FASTENER

BRACKET, flasher mounting

1шт.

12

CAGE ASSY, cluster, refer to engine controls and instruments listing, section H

1шт.

13

SENDING UNIT, fuel gage, refer to fuel tank, piping and connections listing, section E

1шт.

14

SWITCH ASSY, push button, refer to engine controls and instruments listing, section H

1шт.

15

SWITCH ASSY, lighting, refer to engine controls and instruments listing, section H

1шт.

16

SWITCH ASSY, key, refer to engine controls and instruments listing, section H

1шт.

17

HOUSING ASSY, fuse, refer to engine controls and instruments listing, section H

1шт.

18

BLOCK ASSY, junction, refer to engine controls and instruments listing, section H

1шт.

19

9412348

BULB,C2B, #257, 14V

LAMP, no. 25712 volt, oil & amp tellite flasher

2шт.

20

9417863

BULB,C2F, #1895, 14V

LAMP, no. 1895 12 volt, tachometer & gauge cluster, 3 used on LP gas engine tractors

4шт.

21

SWITCH ASSY, engine oil pressure, refer to crankcase and related parts listing, in eng-2 parts catalog

1шт.

22

376855R92

SWITCH

transmission oil pressure

1шт.

23

384396R1

SPADE TERMINAL,Male

TERMINAL, transmission oil pressure switch straight

1шт.

24

PANEL ASSY, instrument LH, refer to engine controls and instruments listing, section H

1шт.

25

PANEL ASSY, instrument RH, refer to engine controls and instruments listings, section H

1шт.

26

INDICATOR, electric air cleaner, refer to engine controls and instruments listing. section H

1шт.

27

382728R91

SWITCH

safety starting

1шт.

28

SWITCH ASSY, electric air cleaner, refer to electric air cleaner listing, section E

1шт.

29

362002R92

SOCKET

ASSY, breakaway connector

1шт.

109084

NUT,1/4"-20, G5

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

SCREW, 1/4-20 x 3/4 hex-hd cap

2шт.

64022H

SCREW, 8-32 x 5/16 C-Z slt-fil-hd mach

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

30

TACHOMETER SPEEDOMETER, refer to engine controls and instruments listing, section H

1шт.

31

384045R1

SUPPORT

BRACKET, safety starting switch

1шт.

14991R1

BOLT

3/8-16 x 5/8 short sq-nk crg

1шт.

102635

NUT,3/8"-16, G5

1шт.

32

384046R1

STEM

ROD, safety starting switch

1шт.

NLS

NO LONGER SERVICED

PIN, 1/16 x 1/2 cot.

1шт.

16558R1

WASHER

17/64 x 5/8 x .065

1шт.

33

392441R91

LIGHT

ASSY, transmission oil pressure

1шт.

34

9412348

BULB,C2B, #257, 14V

LAMP, no. 257 12 volt

1шт.

35

397946R1

LIGHT

ASSY, gear selector

1шт.

36

629029R92

NEG BATTERY CABLE

STRAP ASSY, Serial Range: battery-ground

1шт.

356062R91

BOLT

ASSY, terminal

1шт.

37

370387R91

CABLE

ASSY, head light, Serial Range: junction-ground

2шт.

38

383593R91

CABLE ASSY, fuel gauge sending unit to multiple connector, gasoline

1шт.

39

398915R1

HARNESS ASSY, rear main cable

1шт.

40

398916R1

HARNESS ASSY, front main cable

1шт.

41

399470R1

BOOT

INSULATOR, terminal

1шт.

42

398923R1

HARNESS

ASSY, panel cable LH

1шт.

43

398924R1

HARNESS

ASSY, panel cable RH, gasoline engine tractors

1шт.

43

398925R1

HARNESS ASSY, panel cable RH, LP gas engine tractors

1шт.

44

398926R1

HARNESS

ASSY, combination and flashing light, Serial Range: -14289

1шт.

44

405880R1

HARNESS

ASSY, combination and flashing light, Start Serial: 14290

1шт.

45

384198R91

CABLE

ASSY, battery to solenoid switch

1шт.

356062R91

BOLT

ASSY, terminal

1шт.

364910R1

BOOT

COVER, battery terminal

1шт.

46

383618R1

COVER

battery cable terminal

1шт.

47

370387R91

CABLE

vacuum, Serial Range: switch-ground

1шт.

48

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, head light cable, LH gas engine tractors use two clips and following hardware

1шт.

102635

NUT,3/8"-16, G5

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

49

362666R1

CLIP

main harness double

2шт.

50

363117R1

CLIP

front & rear main cable harness

1шт.

179789

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

51

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, rear main harness

2шт.

52

383622R1

CLIP

rear main harness

3шт.

53

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, panel harness RH

1шт.

54

384557R1

CLIP

cable harness

2шт.

55

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, head light cable

2шт.

56

366460R1

CABLE CLIP

CLIP, safety switch cable

1шт.

57

384556R1

CLAMP

CLIP, transmission oil pressure switch

1шт.

58

395228R1

CABLE CLIP

CLIP, breakaway connector

1шт.

59

365501R1

TERMINAL CONNECTOR

TERMINAL, oil pressure switch angle

1шт.

60

ADAPTER, engine oil pressure switch, refer to crankcase and related parts listing, in eng-2 parts catalog

1шт.

61

VALVE ASSY, fuel shut off, refer to carburetor listing, in eng-2 parts catalog

1шт.

62

396530R1

CABLE ASSY, Serial Range: horn-ground

1шт.

63

IGNITION COIL, refer to spark plugs, coil, cables, and distributor listing, in eng-2 parts catalog

1шт.

64

CRANKING MOTOR, refer to cranking motor listing, this section

1шт.

65

ALTERNATOR GENERATOR, refer to alternator generator listing, this section

1шт.

66

VOLTAGE REGULATOR, refer to voltage regulator listing, this section

1шт.

67

387729R91

LIGHT

ASSY, combination rear and tail, only serviceable items are lamp, 455490, sealed beam unit, 371461R91 and rubber retainer, 676078R1

1шт.

102637

NUT,1/2"-13, G5

1шт.

68

392236R91

BATTERY, Prestolite 3327X 12 volt, Serial Range: -16887

1шт.

68

406104R1

BATTERY, Prestolite 3323X 12 volt, Start Serial: 16888

1шт.

69

SWITCH ASSY, horn, refer to engine controls and instruments listing, section H

1шт.

70

382676R1

CABLE ASSY, horn to switch to junction block

1шт.

71

398681R1

HARNESS

CABLE ASSY, horn to switch to harness junction

1шт.

72

ELECTRIC HORN, refer to electric horn listing, this section

1шт.

73

383620R91

ELECTRICAL WIRE

SOCKET ASSY, tachometer light

2шт.

74

405889R1

CABLE PULLING GRIP

CABLE ASSY, harness junction to breakaway connector socket, tractors not equipped w/deluxe fenders, Start Serial: 14312

1шт.

74

405877R1

HARNESS

CABLE ASSY, harness junction to breakaway connector socket, tractors equipped w/deluxe fenders, Start Serial: 14290

1шт.

75

404395R1

CABLE

ASSY, breakaway connector socket to ground, Start Serial: 14290

1шт.

Выбрано товаров: 109
