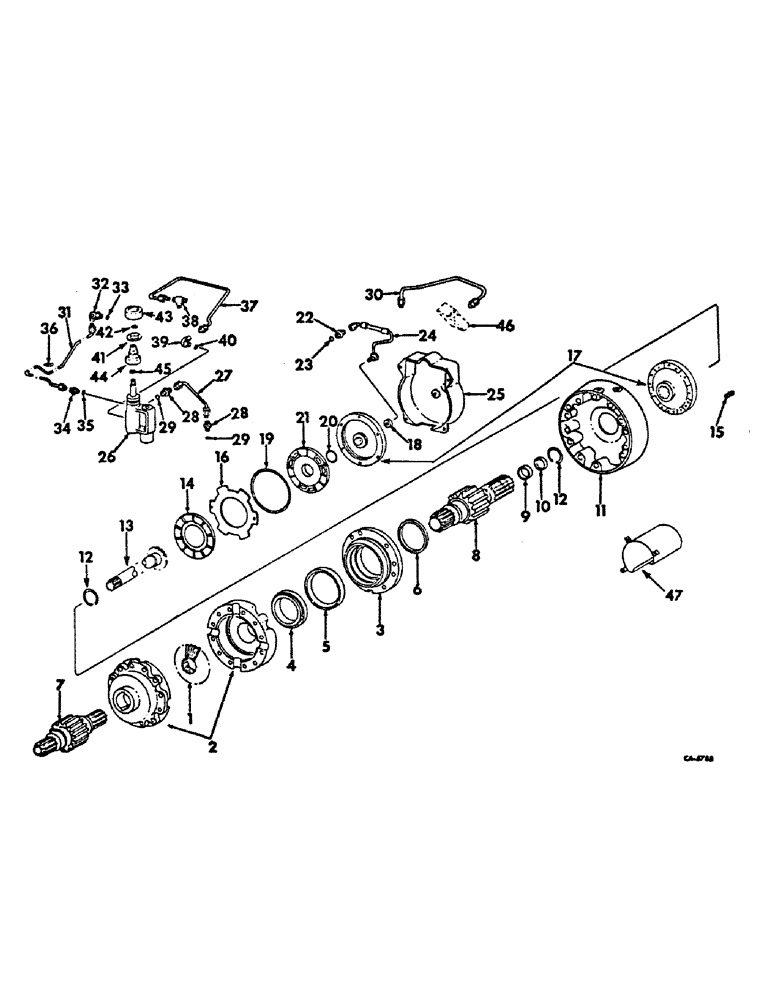

Запчасти Case IH 756 (B-14) - POWER TRAIN, DIFFERENTIAL LOCK (03) - POWER TRAIN

1

529022R1

BEVEL GEAR

GEAR, differential bevel RH, 28 T

1шт.

2

529023R1

BOX

CASE ASSY, differential

1шт.

2

534532R1

CASE

ASSY, differential, Farmall hi-clear tractors

1шт.

3

391685R1

RETAINER, differential bearing RH

1шт.

3

391688R1

RETAINER, differential bearing RH, Farmall hi-clear tractors

1шт.

4

ST2104

BEARING ASSY

RH roller cone

1шт.

4

ST2133

BEARING ASSY,3.0625" ID x 4.625" OD x 1"

RH roller cone, Farmall hi-clear tractors

1шт.

5

ST986

TAPERED BEARING,133.35mm OD x 22.28mm W

BEARING, RH roller cup

1шт.

5

ST990

TAPERED BEARING,3.0625" ID x 4.625" OD x 1"

BEARING, RH roller cup, Farmall hi-clear tractors

1шт.

6

391689R91

OIL SEAL

SEAL, differential brg retainer RH

1шт.

7

529025R1

SHAFT

bull pinion & brake LH

1шт.

8

529026R1

SHAFT

bull pinion & brake RH

1шт.

9

283375R91

NEEDLE BEARING

ASSY, needle

1шт.

10

529027R91

OIL SEAL

oil

1шт.

11

529028R1

HOUSING, RH brake

1шт.

24959R1

SCREW, w/nylon pellet insert, 5/8-11, x 5-1/4 hex-hd cap

4шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 3-3/4 hex-hd cap

2шт.

12

300026R1

RING

retaining

1шт.

13

52903CR1

SHAFT, inner

1шт.

14

529032R1

SPRING

DISC ASSY, differential lock friction

1шт.

15

529032R1

SPRING

piston return

8шт.

16

529033R1

PLATE ASSY.

PLATE, pressure

1шт.

17

529401R11

HOUSING

ASSY, piston, composed of (1) housing 529029R1 (NSS), (1) housing 529401R1 (NSS), (2) pin 20027R1, (1) plug 9409954

1шт.

20027R1

PIN,5/16" x 1 1/4"

5/16 x 1-1/4 dowel

2шт.

9409954

PLUG,Hex Soc, 1/16"-27

1/16-27 auto. soc-hd pipe

1шт.

138202

SCREW,1/4" - 20 x 1"

1/4-20 x 1 hex-soc-hd cap

1шт.

18

529404R91

SEAL

inlet shaft oil

1шт.

19

3046994R1

O-RING,0.139" Thk x 5.609" ID, -255, Cl 5, 75 Duro

5-5/8 x 5-7/8 x 1/8, piston outer

1шт.

20

252483R1

O-RING,-218, 70 Duro, 1.234" ID x .139" Thk

1-1/4 x 1-1/2 x 1/8, piston inner

1шт.

21

529034R1

PISTON ASSY.

PISTON, differential lock brake

1шт.

22

9410199

HYD CONNECTOR,3/8"-24, 37 Degree x 3/8"-24

UNION, 3/8-24 37 deg hyd flared tube short swivel

1шт.

23

379795R1

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

24

529402R2

HYD TUBE

SHAFT ASSY, oil inlet

1шт.

25

529036R11

COVER ASSY, differential lock

1шт.

23112R1

PIN, 1/8 x 1/2 dowel 1/8" x 1/2"

1шт.

179796

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

SCREW, 1/4-20 x 7/8 hex-hd cap

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

26

65416C91

NO LONGER SERVICED

VALVE ASSY, differential lock, replaces 529003R91, for components, see list parts under details of differential lock valve

1шт.

187491

BOLT,Hex, 3/8" - 16 x 5 1/2", Gr 5

SCREW, 3/8-16 x 5-1/2 hex-hd cap, International tractors

1шт.

Q1597

WASHER

13/32 x 3/4 x 16 ga, International tractors

1шт.

27

529037R1

TUBE ASSY, differential lock pressure

1шт.

28

9410200

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

UNION, 7/16-20 37 deg hyd flared tube short swivel

2шт.

29

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

3/8 x 1/2 x 1/16

2шт.

30

529038R1

TUBE

ASSY, RH brake

1шт.

31

529039R1

TUBE

ASSY, differential lock supply

1шт.

31

533994R1

HOSE ASSY.

HOSE, tube bumper, 2 in long

2шт.

535256R1

HOSE, tube bumper, 4 in long

1шт.

32

9410975

ELBOW,90 Degree, 1/2"-20, 37 Degree x 1/2"-20, O-Ring

1/2-20 37 deg hyd flared tube adj str thd 90 deg

1шт.

33

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

1шт.

34

9410201

HYD CONNECTOR,1/2"-20, 37 Degree x 1/2"-20, O-Ring

UNION, 1/2-20 37 deg hyd flared tube short swivel

1шт.

35

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

1шт.

36

140579

CLAMP, 5/16 closed

1шт.

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

1шт.

20285H

WASHER

13/32 x 3/4 x 11 ga

1шт.

37

529040R2

TUBE ASSY, differential lock dump

1шт.

534250R1

HOSE

tube bumper

3шт.

38

529041R1

TEE

differential lock dump tube

1шт.

39

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 deg hyd flared tube, adj str thd 90 deg

1шт.

40

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

41

529042R1

SPACER

PEDAL

1шт.

42

384561R1

SNAP RING,#40, Ext

Ring, Snap, , pedal #40, Ext

1шт.

43

529043R1

PAD

pedal

1шт.

44

393071R1

BOOT

pedal

1шт.

45

529044R1

LOCK WASHER

pedal boot

1шт.

46

VALVE ASSY, power brake, refer to brakes listing, section H

1шт.

47

391814R11

SHIELD ASSY, bull pinion brg oil

1шт.

423324

SCREW,Hex L/Wshr Hd, #10-24 x 7/16"

w/ext-tooth lock washer, 10-24 x 7/16 hex-hd mach

3шт.
