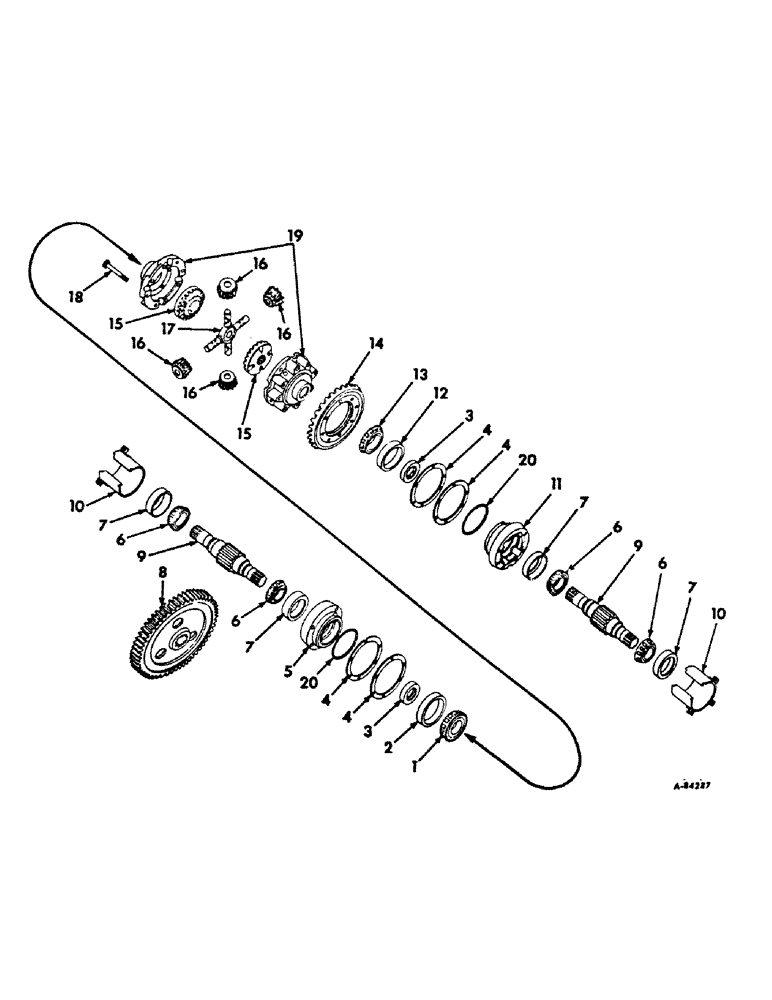

Запчасти Case IH 756 (B-12) - POWER TRAIN, DIFFERENTIAL (03) - POWER TRAIN

1

ST2129

BEARING ASSY,77.79mm ID x 23.01mm W

differential roller LH cone

1шт.

2

ST988

BEARING CUP,121.44mm OD x 17.46mm W

BEARING, differential roller LH cup

1шт.

3

380200R91

SEAL

differential roller bearing retainer oil

2шт.

4

380202R1

SHIM

differential roller brg retainer .007

2шт.

4

380203R1

SHIM

differential roller brg retainer .012

4шт.

4

380204R1

SHIM

diffetential roller brg retainer .030

1шт.

4

380205R1

SHIM

differential roller brg retainer .004

1шт.

4

385155R1

SHIM

differential roller brg retainer .003

1шт.

5

400901R1

RETAINER

differential roller brg LH

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

6шт.

6

ST2007A

TAPERED BEARING,2.625" ID x 4.4375" OD x 1.1875"

BEARING ASSY, bull pinion & brake shaft cone

4шт.

7

13363D

TAPERED BEARING

BEARING, bull pinion and brake shaft cup

4шт.

8

380219R1

GEAR

bull, 73 T

2шт.

9

400864R1

SHAFT

bull pinion & brake, 13 T

2шт.

9

401276R1

SHAFT

bull pinion & brakem 13 T, Farmall hi-clear tractors

2шт.

10

400902R1

SHIELD ASSY, bull pinion brg oil

2шт.

423324

SCREW,Hex L/Wshr Hd, #10-24 x 7/16"

w/ext tooth lock washer, 10-24 x 7/16 hex-hd mach

2шт.

11

400900R1

RETAINER

differential roller brg RH

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

6шт.

12

ST990

TAPERED BEARING,3.0625" ID x 4.625" OD x 1"

BEARING, differential roller RH cup

1шт.

13

ST2133

BEARING ASSY,3.0625" ID x 4.625" OD x 1"

differential roller LH cone

1шт.

14

380191R1

GEAR

drive bevel, 49 T, all tractors except hi-clear

1шт.

14

GEAR, drive belt, 49 T, order matched set of bevel gears, 68529C91, Farmall hi-clear tractors

1шт.

15

380190R1

GEAR

differential bevel, 28 T

2шт.

16

361061R1

GEAR

PINION, differential bevel, 15 T

4шт.

17

393637R2

DIFF. SPIDER

SPIDER, differential

1шт.

18

55972DA

BOLT,1/2" - 20 x 4 1/2"

differential case

12шт.

381368R1

NUT,Hex, 1/2" - 20, Gr 8

differential case bolt

12шт.

19

380187R91

CASE

ASSY, differential

1шт.

20

3061207R1

O-RING,0.139" Thk x 6.234" ID, -259, Cl 5, 75 Duro

6-1/4 x 6-1/2 x 1/8, differential brg retainer

2шт.

68529C91

GEAR-SET

BEVEL GEARS, matched set, Farmall hi-clear tractors, consists of (1) gear 380132R1 (NSS), (1) shaft 380160R1 (NSS), (1) tag 1084237R1 (NSS)

1шт.
