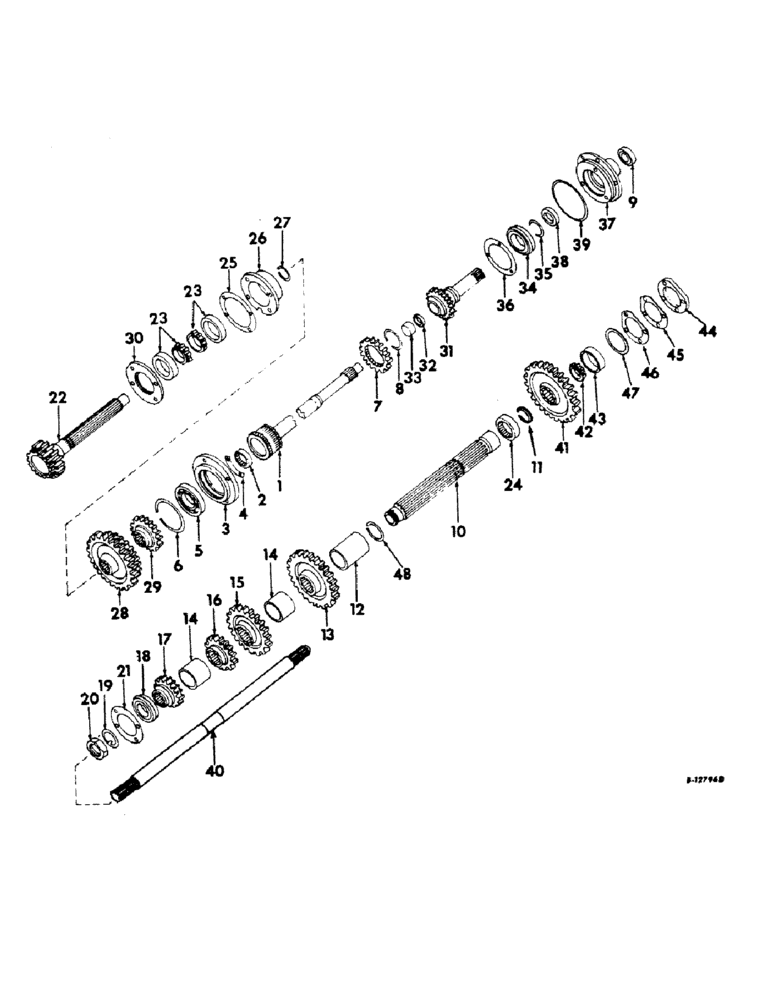

Запчасти Case IH 756 (B-05) - POWER TRAIN, SPEED TRANSMISSION, IN CLUTCH HOUSING (03) - POWER TRAIN

1

380076R3

SHAFT

transmission drive, 26 T

1шт.

2

572181R91

NEEDLE BEARING,Needle, 38.09mm ID x 47.64mm OD x 25.4mm W

main shaft front

1шт.

3

380080R1

CAGE

constant mesh drive brg

1шт.

4

380081R1

PLATE

constant mesh drive gear brg cage lock

2шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

4шт.

5

ST697

BALL BEARING,75 mm ID x 130 mm OD x 22 mm

BEARING, constant mesh gear

1шт.

6

392683R1

RING

constant mesh drive brg cage int snap

1шт.

7

GEAR, constant mesh drive, 26 T, Farmall tractors w/special no.

1шт.

7

528670R1

GEAR WHEEL

GEAR, constant mesh drive, 26 T, Farmall tractors, Start Serial: 17636

1шт.

7

528670R1

GEAR WHEEL

GEAR, constant mesh drive, 26 T, International tractors, Start Serial: 8425

1шт.

8

RING, constant mesh drive gear ext snap

1шт.

9

524598R91

BALL BEARING,20mm ID x 52mm OD x 15mm W

REARING, clutch shaft pilot

1шт.

9

524598R91GV

BEARING

Value, Ball Bearing

1шт.

10

380082R2

SHAFT

COUNTERSHAFT

1шт.

11

RING

1шт.

12

SPACER, constant mesh gear, long, also for countershaft w/o snap ring groove, for tractors amplifier

1шт.

13

380086R2

GEAR WHEEL

GEAR, constant mesh, 47 T, Farmall tractors, Serial Range: -17635

1шт.

13

380086R2

GEAR WHEEL

GEAR, constant mesh, 47 T, International tractors, Serial Range: -8424

1шт.

13

528673R1

GEAR

constant mesh, 47 T, Farmall tractors, Start Serial: 17636

1шт.

13

528673R1

GEAR

constant mesh, 47 T, International tractors, Start Serial: 8425

1шт.

14

380126R1

BUSHING

SPACER, countershaft gears

2шт.

15

390264R1

GEAR WHEEL

GEAR, 3rd speed driving, 42 T, Farmall tractors, Serial Range: -17635

1шт.

15

390264R1

GEAR WHEEL

GEAR, 3rd speed driving, 42 T, International tractors, Serial Range: -8424

1шт.

15

528671R1

GEAR

3rd speed driving, 42 T, Farmall tractors, Start Serial: 17636

1шт.

15

528671R1

GEAR

3rd speed driving, 42 T, International tractors, Start Serial: 8425

1шт.

16

390258R1

PINION

GEAR, 2nd speed driving, 32 T, Farmall tractors, Serial Range: -17635

1шт.

16

390258R1

PINION

GEAR, 2nd speed driving, 32 T, International tractors, Serial Range: -8424

1шт.

16

528672R1

GEAR

2nd speed driving, 32 T, Farmall tractors, Start Serial: 17636

1шт.

16

528672R1

GEAR

2nd speed driving, 32 T, International tractors, Start Serial: 8425

1шт.

17

390259R1

PINION

GEAR, 1st speed driving, 27 T, Farmall tractors, Serial Range: -17635

1шт.

17

390259R1

PINION

GEAR, 1st speed driving, 27 T, International tractors, Serial Range: -8424

1шт.

17

406473R1

GEAR

1st speed driving, 27 T, Farmall tractors, Start Serial: 173636

1шт.

17

406473R1

GEAR

1st speed driving, 27 T, International tractors, Start Serial: 8425

1шт.

18

ST270A

BALL BEARING,60 mm ID x 110 mm OD x 22 mm

BEARING, countershaft rear

1шт.

19

380091R2

THRUST WASHER,59.51mm ID x 82.55mm OD x 1.52mm Thk

countershaft brg lock nut

1шт.

380092R1

NUT

countershaft brg lock

1шт.

380093R1

RETAINER

countershaft rear brg

1шт.

NLS

NO LONGER SERVICED

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

380094R2

SHAFT

main, 23T

1шт.

382350R2

SHAFT

main 23T, tractors with torque amplifier

1шт.

23

384169R91

BEARING ASSY,55.58mm ID x 96.84mm OD x 26.26mm W

ASSY, main shaft rear roller

2шт.

24

384114R91

NEEDLE BEARING

countershaft front

1шт.

25

380095R1

SHIM

main shaft

1шт.

26

384089R2

CAGE

main shaft

1шт.

27

380097R1

RING

main shaft rear

1шт.

28

380124R1

GEAR

1st & 2nd speed sliding, 41 & 46T, Farmall tractors, Serial Range: -17635

1шт.

28

380124R1

GEAR

1st & 2nd speed sliding, 41 & 46T, International tractors, Serial Range: -8424

1шт.

28

528674R1

GEAR

1st & 2nd speed sliding, 41 & 46T, Farmall tractors, Start Serial: 17636

1шт.

28

528674R1

GEAR

1st & 2nd speed sliding, 41 & 46T, International tractors, Start Serial: 8425

1шт.

29

380125R2

GEAR WHEEL

GEAR, 3rd & 4th speed sliding, 31T, Farmall tractors, Serial Range: -17635

1шт.

29

380125R2

GEAR WHEEL

GEAR, 3rd & 4th speed sliding, 31T, International tractors, Serial Range: -8424

1шт.

29

528675R1

GEAR

3rd and 4th speed sliding, 31T, Farmall tractors, Start Serial: 17636

1шт.

29

528675R1

GEAR

3rd and 4th speed sliding, 31T, International tractors, Start Serial: 8425

1шт.

30

380098R2

RETAINER

main shaft rear brg

1шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

4шт.

31

380261R1

SHAFT

independent PTO drive, 28 T, Farmall tractors, Serial Range: -17635

1шт.

31

380261R1

SHAFT

independent PTO drive, 28 T, International tractors, Serial Range: -8424

1шт.

31

528676R1

SHAFT

independent PTO drive, 28T, Farmall tractors, Start Serial: 17636

1шт.

31

528676R1

SHAFT

independent PTO drive, 28T, International tractors, Start Serial: 8425

1шт.

32

535208R91

SEAL

independent PTO drive shaft oil

1шт.

33

384185R1

BUSHING,38.18mm ID x 44.58mm OD x 12.7mm L

PTO drive shaft, tractors w/o torque amplifier

1шт.

34

9780004

BALL BEARING,55mm ID x 100mm OD x 21mm W

BEARING, PTO drive shaft

1шт.

Ref #34 - solid brg ring

1шт.

35

384337R1

RING

PTO shaft brg snap

1шт.

36

384184R1

RETAINER

PTO shaft brg

1шт.

297330R1

BOLT

SCREW, 3/8-16 x 1 hex-hd nylok

3шт.

37

384079R2

CAGE

PTO drive shaft brg

1шт.

37

384147R2

CAGE, PTO drive shaft brg, tractors with over-center clutch

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

5шт.

38

535209R91

OIL SEAL

PTO shaft brg cage oil

1шт.

39

301604R1

O-RING

7-1/2 x 7-3/4 x 1/8, PTO shaft bearing cage sealing

1шт.

40

65537C1

SHAFT ASSY, PTO driven, replaces 380103R21 by also ordering snap ring, 359141R1

1шт.

41

391828R1

GEAR WHEEL

GEAR, PTO driven, 58T, Farmall tractors, Serial Range: -17635

1шт.

41

391828R1

GEAR WHEEL

GEAR, PTO driven, 58T, International tractors, Serial Range: -8424

1шт.

41

528677R1

GEAR

PTO driven, 58T, Farmall tractors, Start Serial: 17636

1шт.

41

528677R1

GEAR

PTO driven, 58T, International tractors, Start Serial: 8425

1шт.

42

G15215

ROLLER BEARING

BEARING ASSY, PTO driven shaft front cone

1шт.

43

619387R1

BEARING CUP

BEARING, PTO driven shaft front roller cup

1шт.

44

380107R1

RETAINER

PTO driven shaft brg

1шт.

297330R1

BOLT

SCREW, 3/8-16 x 1 hex-hd nylok

4шт.

45

384382R1

SHIM

PTO shaft brg retainer, HV

1шт.

46

384106R1

SHIM

PTO driven shaft brg retainer

3шт.

47

384103R1

SEAL RETAINER

SEAL, PTO front brg retainer

1шт.

48

357035R1

RING

constant mesh gear snap, for tractors w/o torque amplifier

1шт.

372703R5

FLUID, hy-tran, quart can

1шт.

372704R5

FLUID

hy-tran, gallon can

1шт.

372705R5

FLUID

hy-tran, five gallon can

1шт.

407024R5

FLUID, hy-tran, fifteen gallon can

1шт.
