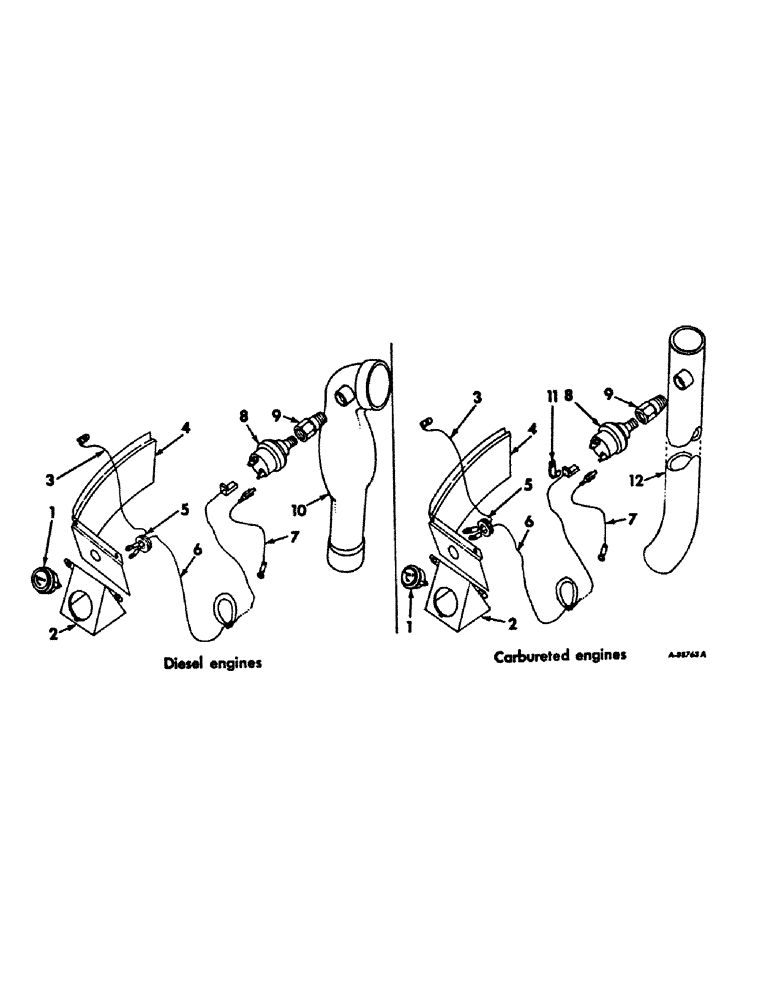

Запчасти Case IH 656 (E-12) - FUEL SYSTEM, ELECTRIC AIR CLEANER INDICATOR, FARMALL TRACTORS (02) - FUEL SYSTEM

1

389871R91

GAUGE

INDICATOR ASSY, electric air cleaner

1шт.

2

392408R1

HOUSING

electric air cleaner indicator

1шт.

446548

WASHER,0.38" ID x 0.75" OD x 0.05" Thk

3/8 x 3/4 x .051 C-Z

2шт.

3

405217R11

CABLE ASSY, push button switch to electric air cleaner indicator, will work for 390840R91

1шт.

4

397886R1

HOUSING, steering support lower LH

1шт.

5

117959

GROMMET,5/16" ID x .719" x .062"

rubber electric air cleaner indicator cables

1шт.

6

405214R11

CABLE ASSY, electric air cleaner indicator to vacuum switch, will work for 389982R91

1шт.

7

405211R1

CABLE PULLING GRIP

CABLE ASSY, vacuum switch to ground, will work for 377120R92

1шт.

114605

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, , Diesel tractors Ext Tooth, 5/16"

1шт.

8

389682R91

SWITCH

electric air cleaner vacuum, gasoline tractors

1шт.

8

531609R1

IGNITION SWITCH

SWITCH, electric air cleaner vacuum, diesel engine tractors

1шт.

444163

ELBOW

1/8-27 90 deg., diesel engine tractors

1шт.

9

389908R91

ADAPTER

ASSY, vacuum switch

1шт.

10

389912R3

INTAKE AIR HOSE

Air Cleaner Outlet, Diesel engine tractors

1шт.

11

366460R1

CABLE CLIP

CLIP, air cleaner indicator to vacuum switch cable, gasoline engine tractors

1шт.

114605

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

1шт.

12

389909R21

PIPE ASSY, air cleaner to carburetor, gasoline engine tractors

1шт.
