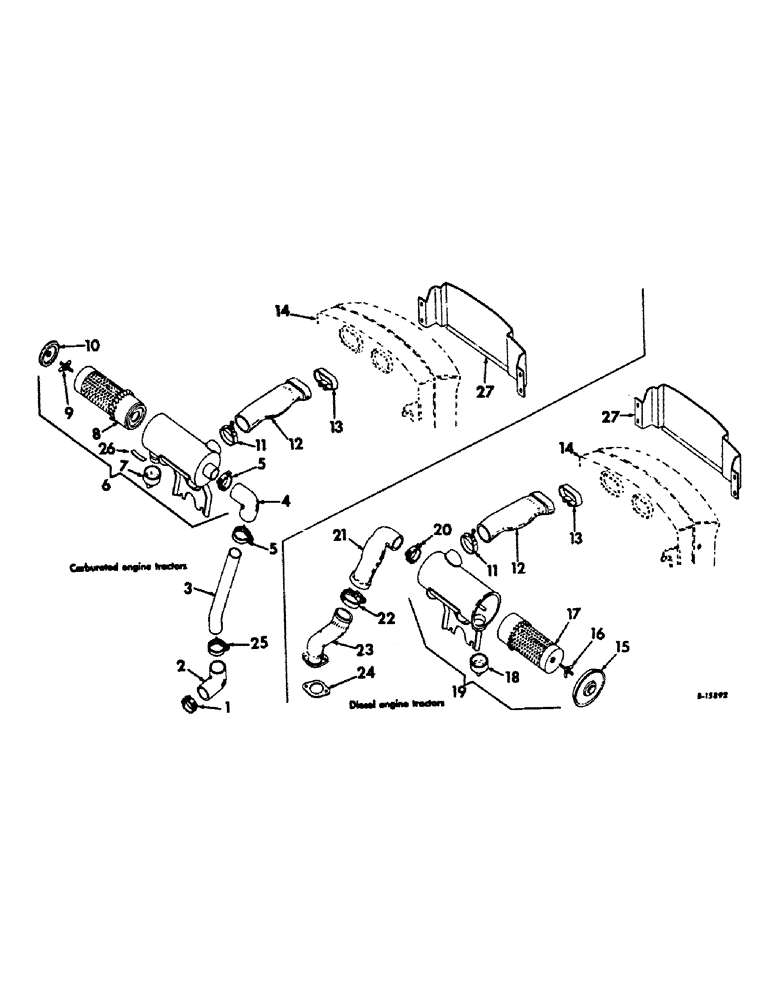

Запчасти Case IH 656 (E-02) - FUEL SYSTEM, AIR CLEANER AND CONNECTIONS, FARMALL TRACTORS (02) - FUEL SYSTEM

1

397256R1

HOSE CLAMP,#44, 2.31/3.25 Type F Worm, W/liner

CLAMP, air cleaner pipe hose, carburetor end

1шт.

2

382400R1

INTAKE AIR HOSE,2.25" ID, 2.50" ID, SAE 20R4, Class SC

Air Cleaner Pipe Lower, For use w/IH carburetor 2.25" ID, 2.50" ID, SAE 20R4, Class SC

1шт.

2

397798R1

INTAKE AIR HOSE,2.00" ID, 2.50" ID

Air Cleaner Pipe Lower, For use w/Marvel Schebler carburetor 2.00" ID, 2.50" ID

1шт.

3

385023R2

PIPE, air, Serial Range: cleaner-carburetor

1шт.

4

306190R1

HOSE ASSY.

HOSE, air cleaner pipe upper

1шт.

5

397256R1

HOSE CLAMP,#44, 2.31/3.25 Type F Worm, W/liner

CLAMP, upper hose

2шт.

6

380745R94

CLEANER ASSY, air

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

4шт.

7

383734R2

VALVE

dust

1шт.

8

384812R93

AIR CLEANER

ELEMENT ASSY

1шт.

9

385925R91

NUT

ADN GASKET ASSY

1шт.

10

384828R91

COVER

ASSY

1шт.

11

357870R91

CLAMP

intake hose rear

1шт.

12

380035R2

INTAKE AIR HOSE,2.16" ID, 3.00" ID x 11.20"

Air Cleaner 2.16" ID, 3.00" ID x 11.20"

1шт.

13

380600R91

FASTENER

CLAMP, intake hose front

1шт.

14

RADIATOR, refer to radiator and connections listing, section A

1шт.

15

384828R91

COVER

ASSY

1шт.

16

385925R91

NUT

AND GASKET ASSY

1шт.

17

383731R93

AIR CLEANER,Round, 2.62" ID x 5.25" OD x 14" L

Filter, Primary

1шт.

18

383734R2

VALVE

dust

1шт.

19

380746R93

CLEANER ASSY, air

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

4шт.

20

397257R1

HOSE CLAMP,#52, 2.81/3.75 Type F Worm, W/liner

CLAMP, outlet hose to air cleaner

1шт.

21

380039R4

INTAKE AIR HOSE,3.00" ID, 3.40" ID

Air Cleaner Outlet 3.00" ID, 3.40" ID

1шт.

22

397258R1

HOSE CLAMP,#64, 3.56/4.50 Type F Worm, W/liner

CLAMP, outlet hose to elbow

1шт.

23

380040R2

ELBOW, air intake manifold

1шт.

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

SCREW, 7/16-14 x 1 hex-hd cap

2шт.

24

369497R2

GASKET

air intake manifold elbow

1шт.

25

397256R1

HOSE CLAMP,#44, 2.31/3.25 Type F Worm, W/liner

CLAMP, lower hose upper

1шт.

26

387067R1

SPRING

dust unloader

1шт.

27

396519R1

BAFFLE

pre-cleaner, Start Serial: 23108

1шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.
