Запчасти Case IH 656 (L-13) - WHEELS & WHEEL WEIGHTS, FRONT WHEEL WEIGHTS, FARMALL TRACTORS, FIRST OR SECOND POSITION Wheels & Wheel Weights

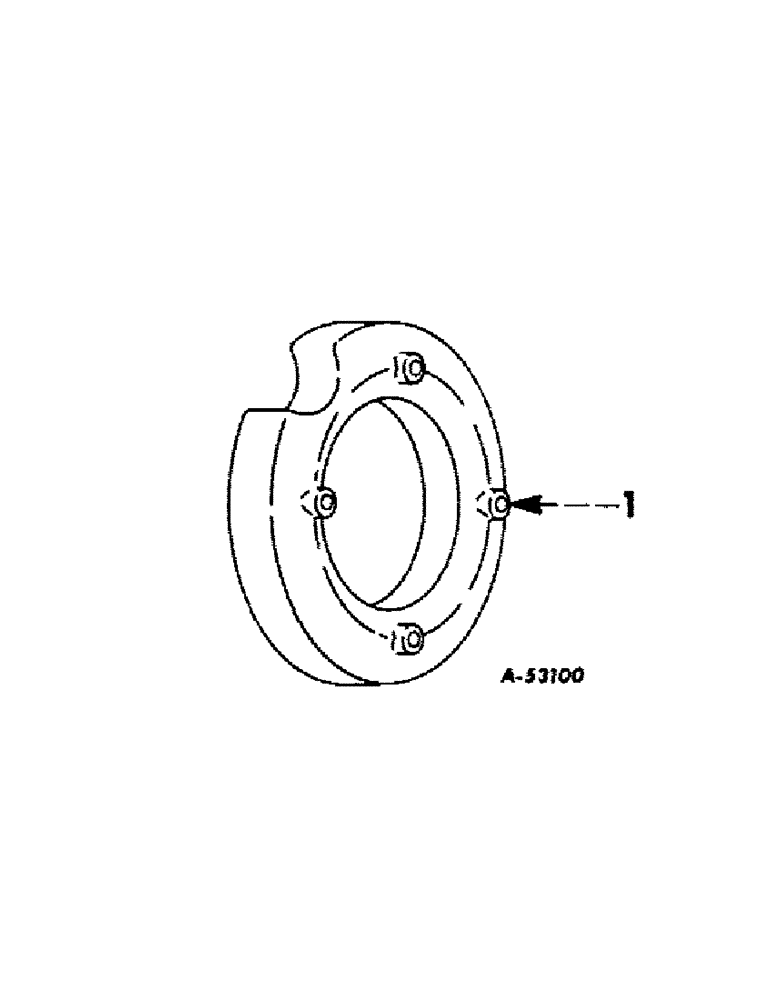

Схема запчастей Case IH 656 - (L-13) - WHEELS & WHEEL WEIGHTS, FRONT WHEEL WEIGHTS, FARMALL TRACTORS, FIRST OR SECOND POSITION Wheels & Wheel Weights
1

Артикул

Название

Примечание

Количество

FRONT WHEEL WEIGHT ATTACHMENT, 370683R91, consists of 2 weights, 370685R1 less mounting hardware

1шт.

1

370685R1

WEIGHT

front wheel, approx 50 lbs, first position

1шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

SCREW, 1/2-13 x 2 C-Z hex-hd cap

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

1

370685R1

WEIGHT

front wheel, approx 50 lbs, second position

1шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

SCREW, 1/2-13 x 4 C-Z hex-hd cap

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

Выбрано товаров: 7
