Запчасти Case IH 656 (L-12[A]) - WHEELS AND WHEEL WEIGHTS, DUAL REAR WHEELS, FARMALL TRACTORS Wheels & Wheel Weights

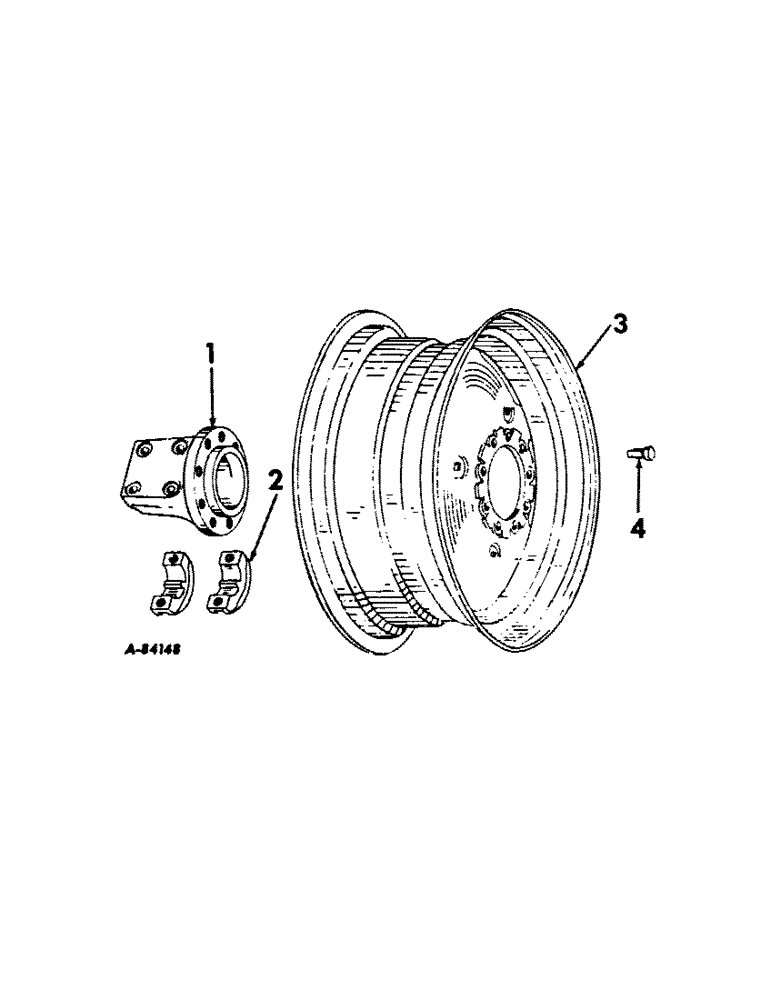

Схема запчастей Case IH 656 - (L-12[A]) - WHEELS AND WHEEL WEIGHTS, DUAL REAR WHEELS, FARMALL TRACTORS Wheels & Wheel Weights
2
4
1
3

Артикул

Название

Примечание

Количество

ATTACHMENT, rear wheels for dualing, W12-38 rim, 405525R91, consists of (18) bolt 391004R1, (4) clamp 389539R1, (2) hub 391279R1, (8) screw 375463R1, (2) wheel 387924R92

2шт.

397247R91

PARTS ACCESSORY, outer dual rear wheel, W12-38 for 13.6-38 or 14.9-38 tire, 2 required per tractor, consists of (9) bolt 391004R1, (2) clamp 389539R1, (1) hub 391279R1, (4) screw 375463R1, (1) wheel 387924R92

1шт.

ATTACHMENT, rear wheels for dualing, W14L-38 rim, 405526R91, consists of (18) bolt 391004R1, (4) clamp 389539R1, (2) hub 391279R1, (8) screw 375463R1, (2) wheel 387923R92

2шт.

397248R91

PARTS ACCESSORY, outer dual rear wheel, W14L-38 for 15.5-38 tire 2 required per tractor, consists of (9) bolt 391004R1, (2) clamp 389539R1, (1) hub 391279R1, (4) screw 375463R1, (1) wheel 387923R92

1шт.

ATTACHMENT, rear wheels for dualing, DW16-34 rim, 405527R91, consists of (18) bolt 391004R1, (4) clamp 389539R1, (2) hub 391279R1, (8) screw 375463R1, (2) wheel 536298R1

2шт.

397249R91

PARTS ACCESSORY, outer dual rear wheel, DW16-34 for 18.4-34 tire 2 required per tractor, consists of (9) bolt 391004R1, (2) clamp 389539R1, (1) hub 391279R1, (4) screw 375463R1, (1) wheel 536298R1

1шт.

ATTACHMENT, rear wheels for dualing, DW14-34 rim, 405528R91, consists of (18) bolt 391004R1, (4) clamp 389539R1, (2) hub 391279R1, (8) screw 375463R1, (2) wheel 375111R91

2шт.

1

391279R1

HUB, rear wheel

2шт.

2

389539R1

CLAMP

rear wheel hub

4шт.

375463R1

SCREW,Hex, 7/8" - 14 x 4 3/4"

7/8-14 x 4-3/4 hex-hd cap

8шт.

3

387924R92

WHEEL

ASSY, disc type rear, W12-38 rim for 13.6-38 or 14.9-38 tire

2шт.

3

387923R92

RIM

WHEEL ASSY, disc type rear, W14L-38 rim for 15.5-38 tire

2шт.

3

536298R1

RIM

WHEEL ASSY, disc type rear, DW16-34 rim for 16.9-34 tire

2шт.

3

375111R91

WHEEL ASSY, disc type rear, DW14-34 rim for 16.9-34 or 18.4-34 tire

2шт.

3

403980R1

WHEEL ASSY, DW14-30, for 16.9-30 tire, International 2656 tractors

2шт.

3

403981R1

WHEEL ASSY, DW12-30, for 14.9-30 tire, International 2656 tractors

2шт.

4

375110R1

BOLT,5/8" - 18 x 1 3/8"

rear wheel mounting

18шт.

4

391004R1

BOLT,Hex, 5/8"

BOLT, rear wheel mounting

18шт.

Выбрано товаров: 18
