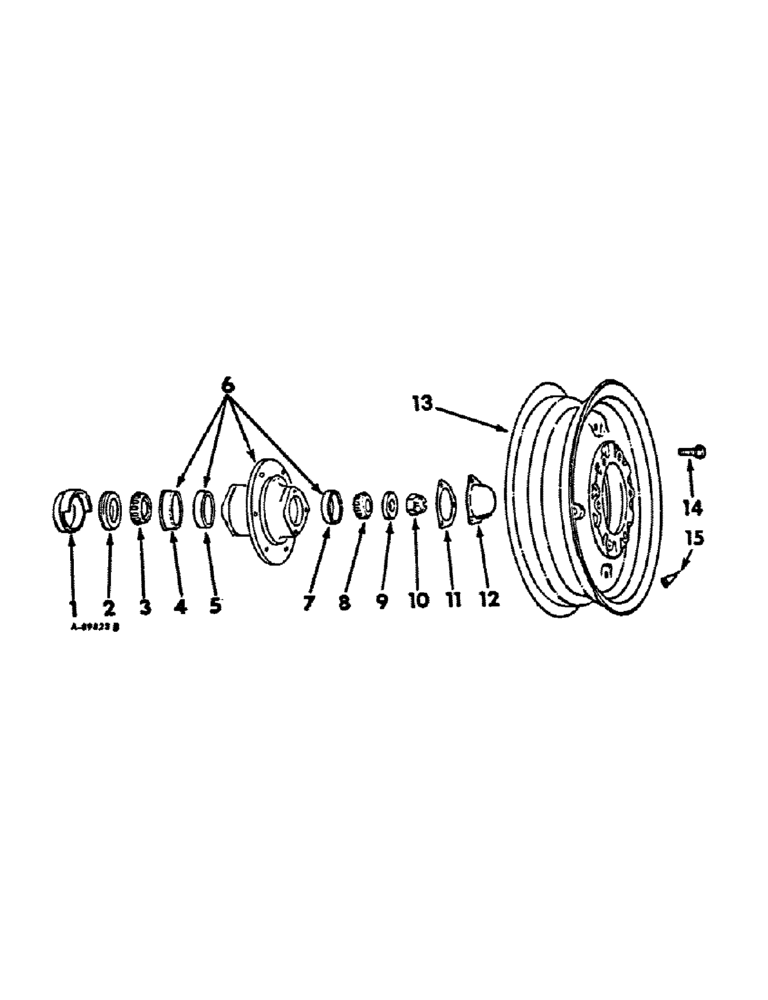

Запчасти Case IH 656 (L-03) - WHEELS & WHEEL WEIGHTS, FRONT WHEELS, FARMALL TRACTORS Wheels & Wheel Weights

.

Service parts for tractors w/adjustable wide front axle w/heavy duty steering knuckles., consists of all unmarked parts and those marked unit A

1шт.

.

Service parts for hi-clear tractors, consists of all unmarked parts and those marked unit B

1шт.

1

48701D

SHIELD

front wheel dust

2шт.

2

370254R91

OIL SEAL,57.02mm ID x 82.55mm OD x 6.86mm Thk

front wheel oil

2шт.

3

G15215

ROLLER BEARING

BEARING ASSY, front wheel inner cone

2шт.

4

48703D

RETAINER

front wheel oil seal

2шт.

5

619387R1

BEARING CUP

BEARING, front wheel inner cup

2шт.

6

391823R11

HUB

ASSY, front wheel

2шт.

6

391823R11GV

HUB

Value, Hub Assy.

2шт.

.

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 str drive

2шт.

7

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Front wheel outer

2шт.

8

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING ASSY, front wheel outer cone

2шт.

9

370255R2

WASHER,22.63mm ID x 47.75mm OD x 4.18mm Thk

front wheel outer bearing retainer

2шт.

10

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-14 slt-hex. front wheel

2шт.

.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

1шт.

11

369860R1

GASKET,0.79mm Thk

front wheel hub cap

2шт.

12

369859R1

CAP

front wheel hub

2шт.

.

21553R1

SCREW, 5/16-18 x 5/8 CAD hex-hd cap

6шт.

.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

13

370777R92

RIM

WHEEL ASSY, front, 2 for unit A, disc type 4.25KA x 16DC rim for 6.00 x 16 or 6.50 x 16 tire

1шт.

13

370735R3

WHEEL ASSY, front, 2 for unit A, disc type 6.00LB x 15DC rim for 7.50L x 15 tire

1шт.

13

364343R92

WHEEL

ASSY, front, 2 for units A & B, disc type 5.50F x 16DC rim for 7.50 x 16 tire

1шт.

13

370779R92

RIM

WHEEL ASSY, front, 2 for unit B, disc type 5.50 x 20DC rim for 7.50 x 20 tire

1шт.

13

528687R1

WHEEL

ASSY, front, 2 for unit A, disc type W8L x 15 rim for 9.50L x 15 tire

1шт.

14

51485D

BOLT,9/16" - 18 x 1 7/32"

front wheel mounting

12шт.

14

382966R1

BOLT (SPREADER),Hex Csk, 9/16" - 18 x 1.47"

BOLT, front wheel mounting, used on wheel assy 370779R91

12шт.

15

387897R91

VALVE STEM

VALVE, tubeless tire, 44 lbs pressure and under

2шт.

15

536705R91

VALVE

tubeless tire, 45 lbs pressure and above

2шт.

.

371418R91

PACKAGE

front wheel bearing overhaul, consists of (1) cone 619386R91, (1) cone 618023R91, (1) cup 618024R1, (1) cup 619387R1, (1) gasket 369860R1, (1) oil seal 370254R91, (1) retainer 48703D

1шт.
