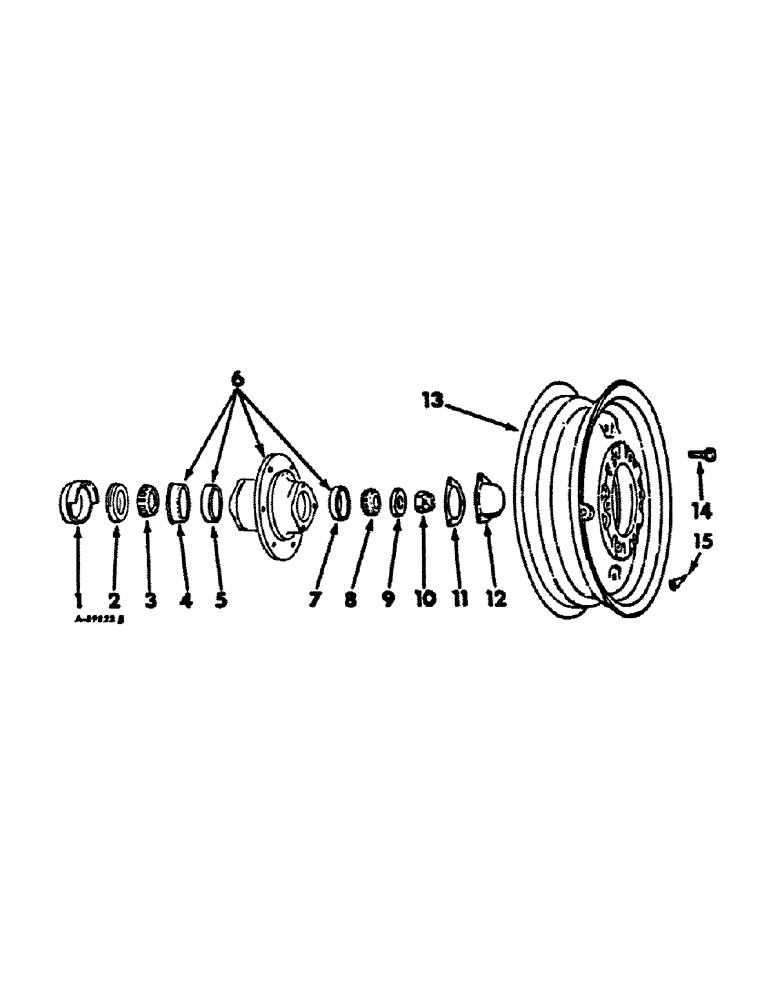

Запчасти Case IH 656 (L-02) - WHEELS & WHEEL WEIGHTS, FRONT WHEELS, FARMALL TRACTORS Wheels & Wheel Weights

1

48541D

SHIELD

front wheel dust

2шт.

2

48539DA

PACKING RING

SEAL, front wheel oil

2шт.

3

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING ASSY, front wheel inner cone

2шт.

4

48548D

WASHER

front wheel oil seal

2шт.

5

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Front wheel inner

2шт.

6

395310R11

HUB

ASSY, front wheel

2шт.

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 str drive

2шт.

7

371883R1

BEARING CUP

Front wheel outer

2шт.

8

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

Assy, Front wheel outer

2шт.

9

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

front wheel outer bearing retainer

2шт.

10

427639

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16 slt-hex. front wheel

2шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

1шт.

11

369860R1

GASKET,0.79mm Thk

front wheel hub cap

2шт.

12

369859R1

CAP

front wheel hub

2шт.

21553R1

SCREW, 5/16-18 x 5/8 CAD hex-hd cap

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

13

371735R3

WHEEL

ASSY, front, disc type 6.00LB x 15DC rim for 7.50L x 15 tire

2шт.

13

370777R92

RIM

WHEEL ASSY, front, disc type 4.25KA x 16DC rim for 6.00 x 16 or 6.50 x 16 tires

2шт.

13

364343R92

WHEEL

ASSY, front, disc type 5.50F x 16DC rim for 7.50 x 16 tire

2шт.

13

528687R1

WHEEL

ASSY, front, disc type W8L x 15 rim for 9.50 x 15 tire

2шт.

RIM IS FOR 9.5L X 15 6PRF2 AND 11L-15 6PRI1 TUBELESS TIRES PER CX70 CATALOG. 11/6/01 BW CAM

1шт.

14

51485D

BOLT,9/16" - 18 x 1 7/32"

front wheel mounting

12шт.

15

387597R91

VALVE, tubeless tire, 44 lbs pressure and under

2шт.

15

536705R91

VALVE

tubeless tire, 45 lbs pressure and above

2шт.

371417R91

BEARING

PACKAGE, front wheel bearing overhaul, consists of (1) cone 618023R91, (1) cone 371882R91, (1) cup 618024R1, (1) cup 371883R1, (1) gasket 369860R1, (1) oil seal 48539DA, (1) retainer 48548D

2шт.
