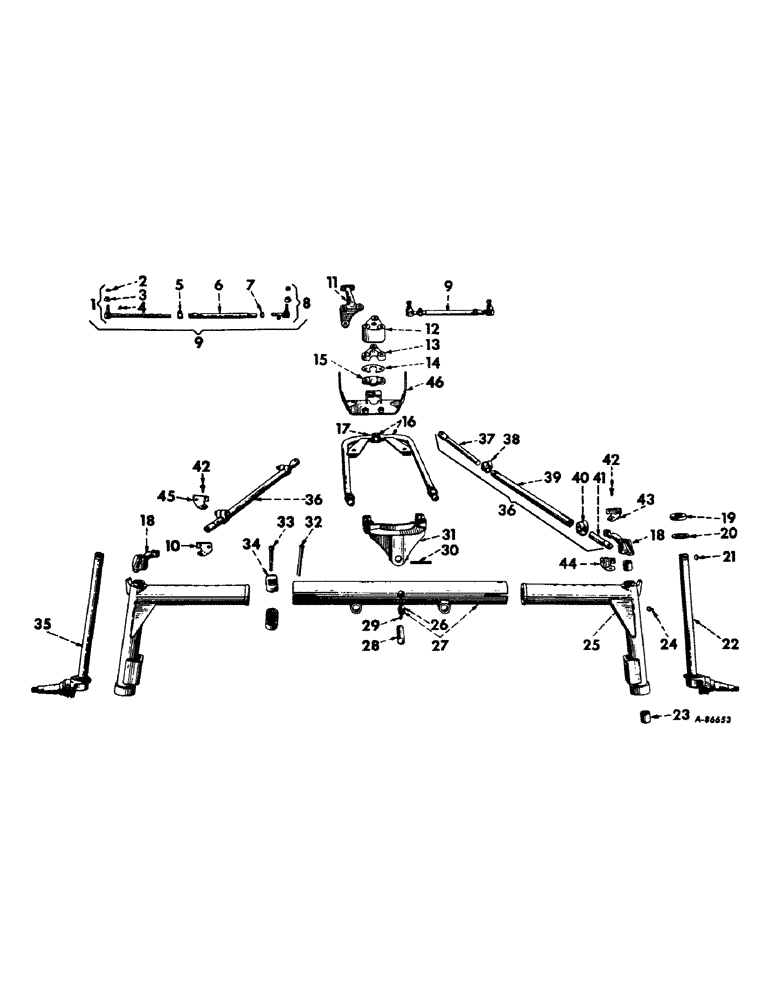

Запчасти Case IH 656 (J-20) - STEERING MECHANISM, ADJUSTABLE FRONT AXLE AND CONNECTIONS, FARMALL HI-CLEAR TRACTORS Steering Mechanism

1

359984R92

ROD

ASSY, tie

2шт.

2

359983R1

NUT

tie rod, optional with 374701R1

4шт.

2

374701R1

NUT

tie rod, optional with 359983R1

4шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

4шт.

3

387280R1

SEAL

COVER, dust

4шт.

4

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

4шт.

5

359986R1

CLAMP

tie rod, adj end

2шт.

25-118

NUT,1/2"-20, G5

1/2-20 hex.

2шт.

181436

BODY,Hex, 1/2" - 20 x 2 1/4", Gr 5

SCREW, 1/2-20 x 2-1/4 hex-hd cap

2шт.

6

383917R1

TUBE

tie rod

2шт.

7

374062R1

JAM NUT

NUT, jam

2шт.

8

384006R91

END

ROD ASSY, tie, RH thread

2шт.

9

383915R92

ROD

ASSY, tie

2шт.

10

382384R1

SUPPORT

BRACKET, auxiliary stay rod front lower RH

1шт.

11

358970R1

ARM

steering gear

2шт.

NLS

NO LONGER SERVICED

SCREW, 3/4-10 x 1-1/2 hex-hd cap

4шт.

12

370730R1

SPACER

stay rod ball socket

1шт.

13

365459R1

SOCKET

stay rod ball

1шт.

14

365457R1

SHIM

stay rod ball socket cap

1шт.

15

365456R1

CAP

stay rod ball socket

1шт.

16

382379R91

ROD ASSY, stay

1шт.

427546

JAM NUT,Jam, 1 3/8"-12, G5

1-3/8-12 hex. jam

2шт.

17

10546D

BALL

stay rod

1шт.

18

383914R1

ARM

steering knuckle

2шт.

425-1110

NUT,5/8"-18, G5

2шт.

114-614

BOLT,Hex, 5/8" - 18 x 3", Gr 5

SCREW, 5/8-18 x 3 C-Z hex-hd cap

2шт.

19

405831R91

BEARING

steering knuckle pivot thrust

2шт.

20

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

Steering knuckle pivot felt

2шт.

21

40093D

WOODRUFF KEY,#127, 1/4" x 2 1/8", HT

KEY, 1/4 x 2-1/8 Woodruff 127, steering knuckle arm

2шт.

22

384258R92

STEERING KNUCKLE

KNUCKLE ASSY, steering RH

1шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

1шт.

23

358958R2

BUSHING,42.57mm ID x 46.08mm OD x 51.05mm L

steering knuckle pivot pin

4шт.

24

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 drive type str lub

2шт.

25

370719R31

EXTENSION

front axle

2шт.

26

48841D

BUSHING,31.03mm ID x 34.62mm OD x 31.75mm L

front axle pivot pin

2шт.

The drawing advises that this bushing must be pressed into the bore and then reamed to 1.237/1.238".

1шт.

27

358976R31

CENTER AXLE

AXLE ASSY, front w/two bushings, 48841D

1шт.

28

358978R2

AXLE PIN,31.29mm OD x 217.49mm L

PIN, front axle pivot

1шт.

29

17049R91

LUBE NIPPLE,67.5 Degree, 1/8"-27 NPT x 1.03" lg, Leakproof

FITTING, 1/8-27 PTF 67-1/2 deg lub

1шт.

30

21105R1

HEADED PIN,9.53mm OD x 123.83mm L

PIN, 3/8 x 4-7/8 headed, front axle pivot pin locking

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

31

383909R4

BOLSTER

lower

1шт.

271613

SCREW,Hex, 3/4" - 10 x 2 1/2", Gr 5

3/4-10 x 2-1/2 hex-hd cap

4шт.

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

2шт.

32

350557R1

PIN

front axle clamp

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

33

20673R1

BOLT,Hex, 3/4" - 16 x 4 1/4", Gr 8

3/4-16 X 4-1/4 hex-hd cap, front axle clamp

4шт.

218197

NUT,3/4"-16, G5

3/4-16 hex.

4шт.

34

350556R1

CLAMP

front axle

4шт.

35

384257R92

STEERING KNUCKLE

KNUCKLE ASSY, steering LH

1шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

1шт.

36

382380R91

ROD ASSY, auxiliary stay

2шт.

37

382378R1

END

auxiliary stay rod adjustable

2шт.

218197

NUT,3/4"-16, G5

3/4-16 hex.

2шт.

271636

SEAL KIT

SCREW, 3/4-16 x 2-1/2 hex-hd cap

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

38

359003R1

CLAMP

auxiliary stay rod adj end

2шт.

425-1110

NUT,5/8"-18, G5

2шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-18 x 3 hex-hd cap

2шт.

114609

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

2шт.

39

382377R1

TUBE, auxiliary stay rod 1.25" ID, 1.635" OD, 37.8" Length

2шт.

40

359004R1

CLAMP

auxiliary stay rod adj end

2шт.

425-1110

NUT,5/8"-18, G5

2шт.

271591

BOLT,Hex, 5/8" - 18 x 3", Gr 5

SCREW, 5/8-18 x 3 hex-hd cap

2шт.

114609

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

2шт.

41

382376R1

BOLT

END, auxiliary stay rod threaded

2шт.

218197

NUT,3/4"-16, G5

3/4-16 hex.

2шт.

271636

SEAL KIT

SCREW, 3/4-16 x 2-1/2 hex-hd cap

2шт.

42

359006R1

BOLT

BOLT, auxiliary stay rod bracket mounting

8шт.

25-118

NUT,1/2"-20, G5

1/2-20 hex.

8шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

43

382381R1

SUPPORT

BRACKET, auxiliary stay rod front upper LH

1шт.

44

382383R1

SUPPORT

BRACKET, auxiliary stay rod front lower LH

1шт.

45

382382R1

BRACKET

auxiliary stay rod front upper RH

1шт.

46

395493R1

SUPPORT ASSY, stay rod ball socket, gear drive tractors

1шт.

280232

BOLT,Hex, 5/8" - 11 x 5 1/2", Gr 5

1шт.

21206R1

SCREW, 5/8-11 x 7-1/4 hex-hd cap

2шт.

NLS

NO LONGER SERVICED

SCREW, 3/4-10 x 1-1/2 hex-hd cap

2шт.

46

401846R1

SUPPORT ASSY, stay rod ball socket, hydrostatic drive tractors

1шт.

280232

BOLT,Hex, 5/8" - 11 x 5 1/2", Gr 5

1шт.

21206R1

SCREW, 5/8-11 x 7-1/4 hex-hd cap

2шт.

NLS

NO LONGER SERVICED

SCREW, 3/4-10 x 1-1/2 hex-hd cap

2шт.
