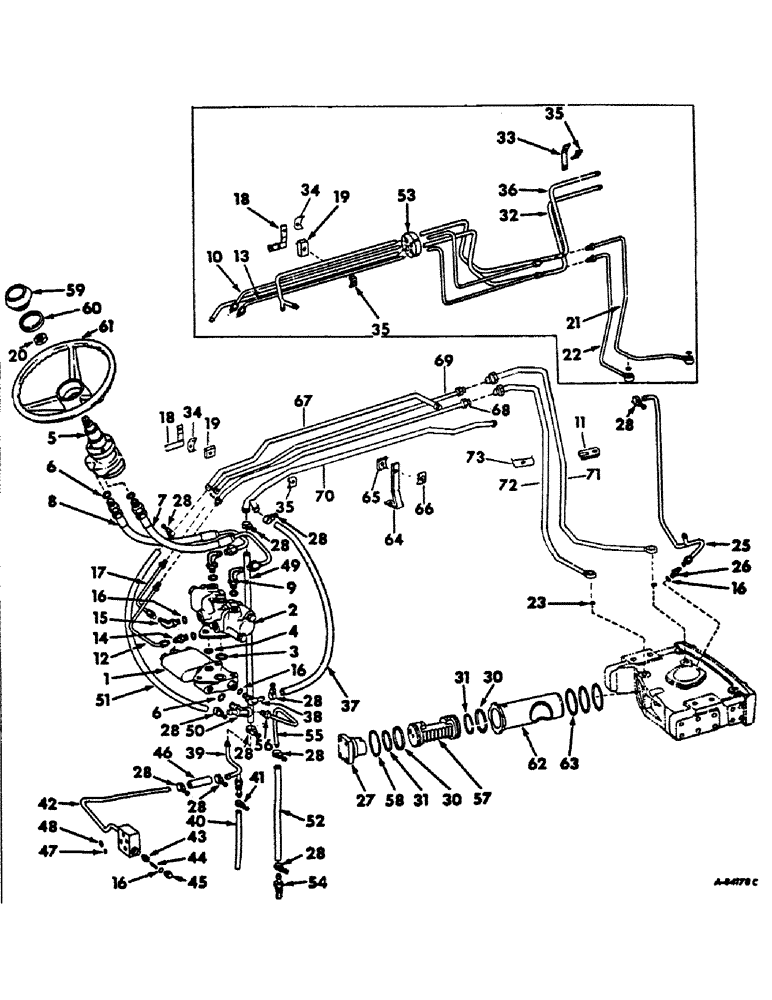

Запчасти Case IH 656 (J-03) - STEERING MECHANISM, POWER STEERING, FARMALL GASOLINE DIESEL ENGINE GEAR DRIVE TRACTORS Steering Mechanism

1

386910R91

VALVE ASSY, power steering flow divider, will work for 392665R91, for components see list of parts under details of power steering flow divider valve, Serial Range: -45253

1шт.

1

543960R91

LOCK VALVE

VALVE ASSY, power steering flow divider, for components see list of parts under details of power steering flow divider valve, Start Serial: 45254

1шт.

2

527492R91

LOCK VALVE

VALVE ASSY, power steering pilot, will work for 379645R93 and 396726R91, for components see list of parts under details of power steering pilot valve

1шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

3

362796R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 x 3/32, pilot valve large

1шт.

4

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

13/16 x 1 x 3/32, pilot valve small

1шт.

5

388407R93

PUMP

hydrostatic power steering hand, for components see list of parts under details of hydrostatic power steering hand pump

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

1шт.

115548

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

4шт.

6

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

.644 x .818 x .087

5шт.

7

388409R91

HYD TUBE

PIPE & HOSE ASSY, hand pump RH

1шт.

8

388408R91

HYDRAULIC HOSE

& HOSE ASSY, hand pump LH

1шт.

9

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 37 deg flared tube adj str thd 90 deg

2шт.

10

388410R11

PIPE ASSY, valve to bolster front port center, Serial Range: -26264

1шт.

11

363864R2

STRIP, power steering tubes, Start Serial: 26265

1шт.

12

390942R11

TUBE

PIPE ASSY, valve to bolster, front port rear

1шт.

13

388411R11

PIPE ASSY, valve to bolster rear port rear, Serial Range: -26264

1шт.

14

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 9/16-18 37 deg hyd flared tube short swivel

1шт.

15

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 deb hyd flared tube adj str thd 90 deg

1шт.

16

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

5шт.

17

390951R11

TUBE

PIPE ASSY, valve to bolster, rear port rear

1шт.

18

388412R11

BRACKET ASSY, oil cooler & power steering tubes

1шт.

19

388413R1

PAD, cooler & bolster pipe spacer

1шт.

20

F19646

LOCK NUT,13/16"-20, Thin

NUT, steering wheel

1шт.

21

388414R11

TUBE

PIPE ASSY, valve to bolster front port, Serial Range: -26264

1шт.

22

388415R11

TUBE

PIPE ASSY, valve to bolster rear port, Serial Range: -26264

1шт.

23

382997R1

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1/2 x 5/8 x 1/16

4шт.

24

370922R1

SCREW,Hex, 7/16" - 20 x 1"

pressure tube union

2шт.

588099R1

WASHER

15/32 x 3/4 x 22 ga.

2шт.

25

388595R11

TUBE

PIPE ASSY, oil cooler return front

1шт.

26

382449R1

CONNECTOR, ELEC

CONNECTOR, overflow tube

1шт.

27

378652R1

HOUSING

COVER, housing end

1шт.

327202R1

BOLT

SCREW, 7/16-14 x 1-7/8 hex-hd cap

4шт.

183544R1

WASHER

15/32 x 7/8 x 1/8 hardened

4шт.

28

261498R91

COLLAR CLAMP,nasp

CLAMP, cooler return hose

11шт.

29

388600R1

CLAMP, cooler tube

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

30

378651R1

SEALING RING

RING, rack piston

2шт.

31

380910R1

O-RING,0.103" Thk x 2.987" ID, -151, Cl 5, 75 Duro

3 x 3-3/16 x 3/32

2шт.

32

388603R1

PIPE, flow divider to oil cooler, Serial Range: -26264

1шт.

33

384581R1

BRACKET, oil cooler pipe, Serial Range: -26264

1шт.

34

381448R1

CLAMP

power steering tubes

1шт.

35

384855R11

CLAMP

ASSY, oil cooler tube, Serial Range: -26264

2шт.

35

384855R11

CLAMP

ASSY, oil cooler tube, Start Serial: 26265

1шт.

179801

BOLT,Hex, 1/4" - 20 x 1 1/2", Gr 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

36

388604R11

PIPE ASSY, oil cooler return, Serial Range: -26264

1шт.

37

388601R1

HOSE

flow divider relief

1шт.

38

388607R1

ELBOW, flow divider relief connector

1шт.

39

404253R1

FITTING ASSY, oil cooler return, replaces 389978R11

1шт.

40

389981R1

HOSE, oil cooler return internal

1шт.

41

279025R91

HOSE CLAMP,#06, .44/.78 Type F Worm

Internal hose #06, .44/.78 Type F Worm

1шт.

42

392716R92

MANIFOLD ASSY, oil cooler return

1шт.

42

389631R93

MANIFOLD ASSY

power supply & oil cooler return, tractors w/draft control

1шт.

179846

LEVER

3шт.

43

354057R2

VALVE

check

1шт.

44

382334R1

SPRING

check

1шт.

45

390825R1

PLUG

std thd o-ring boss

1шт.

46

529245R1

HOSE, power steering return

1шт.

47

355965R1

O-RING,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro

15/16 x 1-3/16 x 1/8, hyd housing flange small

1шт.

48

356005R1

O-RING,1.109" ID x 0.139" Width

1-1/8 x 1-5/16 x 1/8, hyd housing flange large

1шт.

49

388608R1

HOSE, oil cooler return junction

1шт.

50

388609R91

TEE ASSY, oil cooler supply & by-pass

1шт.

51

388608R1

HOSE, oil cooler supply

1шт.

52

395163R1

HOSE ASSY.

HOSE, by-pass

1шт.

53

388610R1

CUSHION, cooler & bolster pipe, Serial Range: -26264

1шт.

54

388448R93

VALVE

ASSY, oil cooler by-pass

1шт.

55

388611R1

TUBE

PIPE, pilot valve by-pass

1шт.

56

222-506

TUBE NUT,11/16"-16

NUT, 11/16-16 hi-duty tube, for 1/2 pipe

1шт.

57

379364R1

PISTON

power steering

1шт.

58

384349R1

O-RING,0.139" Thk x 3.734" ID, -240, Cl 6, 90 Duro

3-3/4 x 4 x 1/8

1шт.

59

378395R1

CAP

steering wheel

1шт.

60

295204R1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

2-13/16 x 3 x 3/32, steering wheel cap

1шт.

61

385156R1

WHEEL (STEERING)

WHEEL, 16 in. dia steering

1шт.

61

385156R1GV

STEERING WHEEL

Value, Steering Wheel

1шт.

62

367805R2

SLEEVE CYLINDER

SLEEVE, steering cyl

1шт.

63

254688R1

O-RING,0.21" Thk x 3.85" ID, -344, Cl 5, 75 Duro

3-7/8 x 4-1/4 x 3/16

3шт.

64

398151R1

SUPPORT, oil cooler and hyd tubes front, Start Serial: 26265

1шт.

65

384891R11

CLAMP

ASSY, hyd tube, Start Serial: 26265

1шт.

66

381448R1

CLAMP

power steering tubes, Start Serial: 26265

1шт.

179801

BOLT,Hex, 1/4" - 20 x 1 1/2", Gr 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

67

398158R1

PIPE, flow divider to oil cooler, Start Serial: 26265

1шт.

68

398149R1

PIPE ASSY, valve to bolster front port center, Start Serial: 26265

1шт.

69

398152R1

PIPE ASSY, valve to bolster rear port center, Start Serial: 26265

1шт.

70

398159R1

PIPE ASSY, oil cooler return, Start Serial: 26265

1шт.

71

398145R1

TUBE

PIPE ASSY, valve to bolster front port front, Start Serial: 26265

1шт.

72

398147R1

TUBE

PIPE ASSY, valve to bolster rear port front, Start Serial: 26265

1шт.

73

384855R1

CLAMP

hyd tube, Start Serial: 26265

1шт.

179795

TILLAGE BLADE

SCREW, 1/4-20 x 3/4 hex-hd cap

1шт.

Q5001

WASHER

9/32 x 3/4 x 11 ga

1шт.

393258R1

INSULATOR, square hydraulic line, 1/2 in. x 2 in. square

1шт.

393259R1

HOSE

INSULATOR, round hydraulic line, 5/8 ID x 3/4 in. long

1шт.
