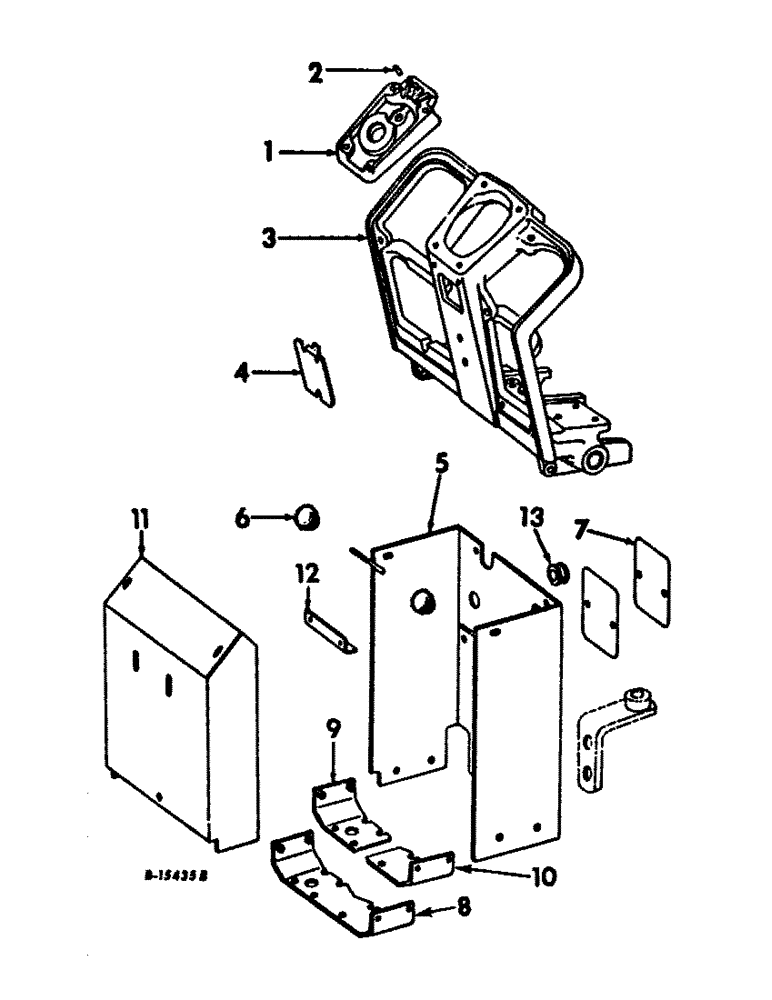

Запчасти Case IH 656 (J-02) - STEERING MECHANISM, STEERING SUPPORT AND RELATED PARTS, FARMALL TRACTORS Steering Mechanism

1

398276R1

COVER, steering support, will work for 382639R2

1шт.

21327R1

SCREW

5/16-18 x 1-1/4 hex-soc-hd cap

4шт.

2

385528R1

PIN

3/16 x 1/2 C-Z dowel, diesel engine tractors

1шт.

3

398771R1

SUPPORT, steering, hydrostatic drive tractors

1шт.

3

388213R3

SUPPORT

steering, gear drive tractors

1шт.

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 1/8-27 PTF str lub

2шт.

4

384429R1

COVER, steering support rear opening

1шт.

181561

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

SCREW, 1/4-28 x 1/2 hex-hd cap

1шт.

345825R1

WASHER, steering support rear opening cover

1шт.

5

398772R2

SUPPORT ASSY, lower steering, hydrostatic drive tractors, Serial Range: -41971

1шт.

5

530265R1

SUPPORT ASSY, steering lower, tractors w/hydrostatic drive, Start Serial: 41972

1шт.

5

394143R2

SUPPORT ASSY, lower steering, gear drive tractors, Serial Range: -41971

1шт.

5

530267R1

SUPPORT ASSY, steering lower, gear drive tractors, Start Serial: 41972

1шт.

179814

SPACER

2шт.

6

388216R1

KNOB

battery cover hold down

2шт.

7

389499R1

COVER, junction block opening, Serial Range: -41971

2шт.

181308

BOLT

SCREW, 1/4-28 x 7/16 hex-hd cap

4шт.

25-114

NUT,1/4"-28, G5

1/4-28 hex.

4шт.

8

388218R11

BASE ASSY, steering support, gear drive tractors, for service replacement order base, 533311R11 and 533312R11

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

3/8-16 x 1-1/4 hex-hd cap

6шт.

9

533311R11

BASE ASSY, steering support LH, gear drive tractors

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

3шт.

9

397073R1

BASE ASSY, steering support LH, hydrostatic drive tractors

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

3шт.

10

533312R11

BASE ASSY, steering support RH, gear drive tractors

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

3шт.

10

397075R1

BASE ASSY, steering support RH, hydrostatic drive tractors

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

2шт.

11

538585R1

NO LONGER SERVICED

COVER, battery housing

1шт.

12

388220R11

BRACKET

ASSY, battery hold down

1шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

13

117965

GROMMET,5/8" ID x 1 11/64" x .062"

rubber

1шт.
