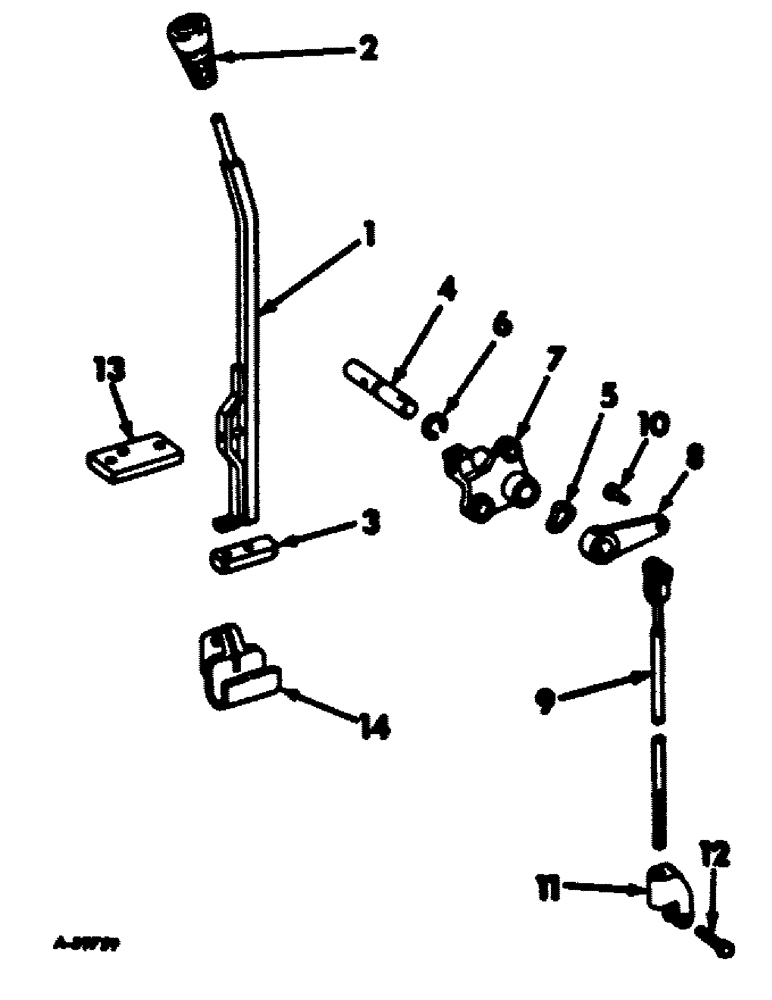

Запчасти Case IH 656 (H-23) - CONTROLS, FORWARD AND REVERSE CONTROL, FARMALL TRACTORS WITH HYDROSTATIC DRIVE Controls

1

399020R1

ROD ASSY, speed control, Serial Range: -46202

1шт.

1

537474R1

ROD

ASSY, speed control, Start Serial: 46203

1шт.

2

388180R2

GRIP

KNOB, shift rod

1шт.

3

399012R1

BAR

BLOCK, control handle

1шт.

186923

HEX SOC SCREW,1/4"-20 x 5/8"

SCREW, 1/4-20 x 5/8 hex-soc-hd cap

2шт.

19534R1

PIN,1/4" x 1 1/2", Coiled

1шт.

4

399015R1

PIN

SHAFT, control handle

1шт.

5

400323R1

SHIM

control handle (use as required)

6шт.

6

373523R1

SNAP RING,#62, .480" Dia, E-Type

Ring, Retaining, #62, .480" Dia, E-Type

1шт.

7

399021R1

BRACKET

control handle

1шт.

271605

BOLT,Hex, 3/4" - 10 x 1 1/4", Gr 5

SCREW, 3/4-10 x 1-1/4 hex-hd cap

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

8

399010R1

LEVER

control

1шт.

19689R1

PIN,1/4" x 1 1/4", Coiled

1шт.

9

399014R1

ROD

ASSY, control

1шт.

114494

NUT,Jam, 3/8"-24, G5

2шт.

10

103494

ADJUSTABLE CLEVIS,1/4" x .770"

PIN, 1/4 x 51/64 rod end

1шт.

103362

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

1шт.

11

399011R1

CLEVIS

control rod

1шт.

12

53055D

CLEVIS PIN,1/4" x 1"

PIN, 1/4 x 1 rod end

1шт.

432-48

COTTER PIN,1/16" x 1/2"

PIN, 1/16 x 1/2 lg cot.

1шт.

13

399013R2

PLATE, shuttle valve mounting

1шт.

400545R1

SCREW, 1/2-13 x 7/8 12 PT cap

1шт.

16336R1

SCREW, 3/8-16 x 2-1/8 hex-hd cap

2шт.

14

399018R1

EXTENSION

shuttle spool

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

1шт.
