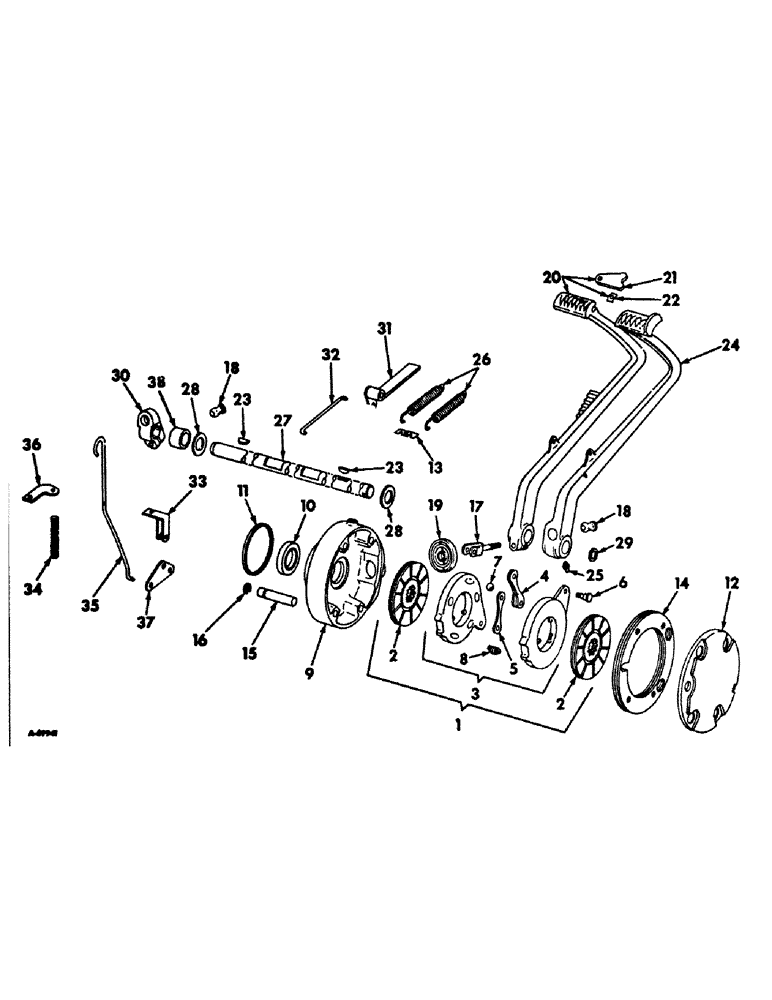

Запчасти Case IH 656 (H-14) - CONTROLS, BRAKES, BRAKE LOCK AND CONNECTIONS, FARMALL TRACTORS Controls

1

388268R91

DISC

BRAKE ASSY, double disc

2шт.

2

391445R91

BRAKE DISC

DISC ASSY, brake

2шт.

3

391446R91

DISC

ASSY, actuating

1шт.

4

357114R91

LINK

actuating yoke

1шт.

5

357113R1

LINK

actuating plain

1шт.

6

354642R1

STUD

link

2шт.

114493

JAM NUT,Jam, 5/16"-24, G5

2шт.

7

16028R1

BALL

7/8 stl

5шт.

8

619731C1

SPRING

extension, will work for 357116R1

3шт.

9

389283R1

HOUSING

brake

2шт.

393773R1

PLUG

brake housing

2шт.

10

383159R91

OIL SEAL

bull pinion shaft oil

2шт.

11

3046999R1

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

RING, brake housing sealing

2шт.

12

389284R2

COVER

brake housing

2шт.

179873

BOLT,Hex, 7/16" - 14 x 3 3/4", Gr 5

8шт.

12

395807R1

COVER, brake housing, hi-clear tractors w/seed plate drive attachment

2шт.

384339R1

PLUG,Cup, 2 3/16"

2-3/16 cup

1шт.

13

357045R1

ANCHOR

brake pedal return spring

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

14

392554R2

SHIM

brake housing

20шт.

15

388270R1

PIN

brake reaction

2шт.

16

393076R1

RING

retaining snap

2шт.

17

403840R2

ROD

brake operating, will work for 388271R1

2шт.

103026

NUT,3/8"-24, G5

2шт.

114786

PIN

7/16 x 1-15/64 rod end

2шт.

280250

COTTER PIN,3/32" OD x 3/4" L

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

18

368298R1

BALL

brake operating rod

2шт.

19

368299R1

INSULATOR

BOOT, enclosure

2шт.

20

388272R11

PEDAL ASSY, LH brake

1шт.

179867

BOLT,Hex, 7/16" - 14 x 2 1/4", Gr 5

SCREW, 7/16-14 x 2-1/4 hex-hd cap

1шт.

NLS

NO LONGER SERVICED

7/16-14 hex.

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

21

43751DB

LATCH, PEDALS

PLATE, brake pedal lock

1шт.

22

51293D

SPRING

brake pedal lock plate tension

1шт.

104087

RIVET,But Hd, 1/4" x 1 1/4"

1/4 x 1-1/4 rd-hd

1шт.

23124552

KEY, 3/16 x 1 Woodruff 13

2шт.

24

388273R1

PEDAL, RH brake

1шт.

25

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 str drive type lub

1шт.

26

43229H

SPRING

brake pedal return

2шт.

27

400383R1

SHAFT

brake pedal, will work for 388274R1

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1шт.

28

48983D

THRUST WASHER

brake pedal shaft thrust

2шт.

29

40435D

WASHER, brake pedal shaft

1шт.

30

388275R1

LEVER

brake operating

1шт.

179867

BOLT,Hex, 7/16" - 14 x 2 1/4", Gr 5

SCREW, 7/16-14 x 2-1/4 hex-hd cap

1шт.

425-107

NUT,7/16"-14, G5

7/16-14 hex.

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

31

530366R1

LATCH

ASSY, brake lock, will work for 388276R91

1шт.

21818R1

PIN, 3/8 x 1-11/16 znd std hd

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

32

388279R1

ROD, brake lock lower

1шт.

107761

COTTER PIN,1/16" x 5/8"

PIN, SPLIT, (COTTER), 1/16" x 5/8"

2шт.

33

388280R21

BRACKET

ASSY, brake lock lever

1шт.

W6108

PIN, 5/16 x 13/16 std-hd

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

106261

WASHER,1/4"

5/16 x 3/4 x .065

1шт.

34

364847R1

SPRING

brake lock return

1шт.

35

388282R1

ROD

brake lock upper

1шт.

36

388283R1

GUIDE

brake lock rod

1шт.

37

388284R1

SUPPORT

LEVER, brake lock

1шт.

38

396224R1

BUSHING

brake shaft, tractors w/hydrostatic drive

1шт.
