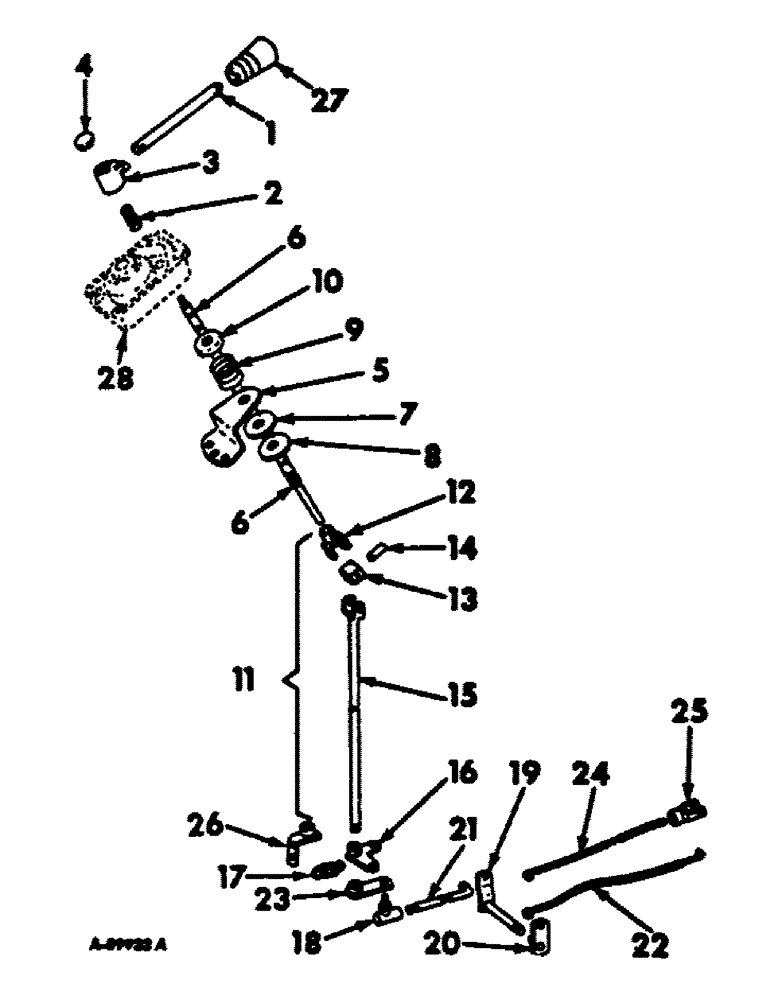

Запчасти Case IH 656 (H-12) - CONTROLS, ENGINE SPEED CONTROLS, FARMALL TRACTORS Controls

1

537478R1

PIN, governor control handle, Start Serial: 46203

1шт.

1

397929R91

HANDLE

governor control w/grip 397931R2, Serial Range: 30946-46202

1шт.

1

391666R1

HANDLE

governor control, Serial Range: -30745

1шт.

2

30A

SPRING

governor control handle

1шт.

230-4115

LOCK NUT,5/16"-18, GA

5/16-18 stover hex. lock

1шт.

615029R1

WASHER

3/8 x 3/4 x .065

1шт.

3

397932R1

HUB

governor control handle, Start Serial: 30746

1шт.

38-31014

PIN,5/32" x 7/8", Coiled

PIN, 5/32 x 3/4 groove

1шт.

4

192105

HOLE PLUG BUTTON,1"

PLUG, 1 in. C-Z button

1шт.

5

388286R1

SUPPORT, gov control mounting upper

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

3шт.

106265

WASHER,1/2"

9/16 x 1-3/8 x .109

1шт.

6

404244R11

SHAFT

ASSY, governor control upper, for service replacement of 398989R21 also order 404240R1 and 333800R1

1шт.

443149

GROOVED PIN,3/16" x 1 1/4", Type E

Pin, Grooved, 3/16" x 1 1/4", Type E

1шт.

7

380421R1

FRICTION WASHER

DISC, sensitivity control handle friction

1шт.

8

382685R11

RETAINER

RETAINER ASSY, governor control friction

1шт.

19368R1

PIN,5/32" x 1", Coiled

1шт.

9

369462R1

SPRING

governor control

1шт.

10

369461R1

RETAINER

RETAINER, governor control spring

1шт.

114505

JAM NUT,Jam, 1/2"-13, G5

2шт.

11

404245R91

JOINT

& SHAFT ASSY, governor control universal, also order shaft assy, 404244R11

1шт.

12

404240R1

YOKE

ASSY, upper, for service replacement on 382689R11 also order 40424R11 and 383800R1

1шт.

543132R2

SCREW, yoke set

1шт.

13

382691R1

CROSS

BLOCK, universal joint center

1шт.

14

382692R1

PIN

center block

1шт.

364577R1

PIN,5/32" x 3/4", Coiled

1шт.

15

388289R11

ROD

ASSY, governor control lower

1шт.

385681R1

PIN

1/4 x 1-1/4 str

1шт.

16

382696R11

LEVER

ASSY, governor control rod operating, carbureted engine tractors

1шт.

364577R1

PIN,5/32" x 3/4", Coiled

1шт.

17

369470R1

VALVE SPRING

SPRING, governor control balancing, carbureted engine tractors

1шт.

393640R1

CLIP, spring anchor, carbureted engine tractors

1шт.

18

393353R91

JOINT TURNING

JOINT, 5/16-24 C-Z type sp ball

1шт.

425-115

NUT,5/16"-24, G5

5/16-24 hex.

1шт.

19

388290R11

LEVER ASSY, governor control pivot LH, carbureted engine tractors, Serial Range: -38433

1шт.

19

400236R1

LEVER ASSY, governor control pivot LH, carbureted engine tractors, diesel engine tractors, Start Serial: 38434

1шт.

20

390974R11

LEVER ASSY, governor control RH, carbureted engine tractors, diesel engine tractors, Serial Range: -38433

1шт.

20

401284R1

LEVER ASSY, governor control RH, carbureted engine tractors, Start Serial: 38434

1шт.

364437R1

PIN,3/16" x 7/8", Coiled

1шт.

21

388292R1

ROD, governor control, short, carbureted engines, Serial Range: -38433

1шт.

114493

JAM NUT,Jam, 5/16"-24, G5

1шт.

103362

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

1шт.

21

400238R1

ROD, governor control, short, carbureted engine tractors, diesel engine tractors, Start Serial: 38434

1шт.

114493

JAM NUT,Jam, 5/16"-24, G5

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

3шт.

22

388293R2

ROD, governor control, carbureted engine tractors, long

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

2шт.

23

392778R11

LEVER ASSY, governor control rod operating, diesel engine tractors

1шт.

364577R1

PIN,5/32" x 3/4", Coiled

1шт.

24

388294R2

ROD, governor control, long, diesel engine tractors

1шт.

114493

JAM NUT,Jam, 5/16"-24, G5

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

3шт.

25

104037

CLEVIS

5/16-24 adj rod end, diesel engine tractors

1шт.

NLS

NO LONGER SERVICED

5/16 x 31/32 rod end

1шт.

432-68

COTTER PIN,3/32" x 1/2"

Pin, Split (Cotter), 3/32" x 1/2"

1шт.

26

394144R11

SUPPORT ASSY, governor control lower

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

2шт.

27

397931R2

GRIP

governor control handle, Start Serial: 30746

1шт.

27

397931R2GV

SPRING

Value, Knob

1шт.

371180R1

GUIDE, control rod, diesel engine tractors

1шт.

28

STEERING, support cover, refer to steering support and related parts listing, section J

1шт.
