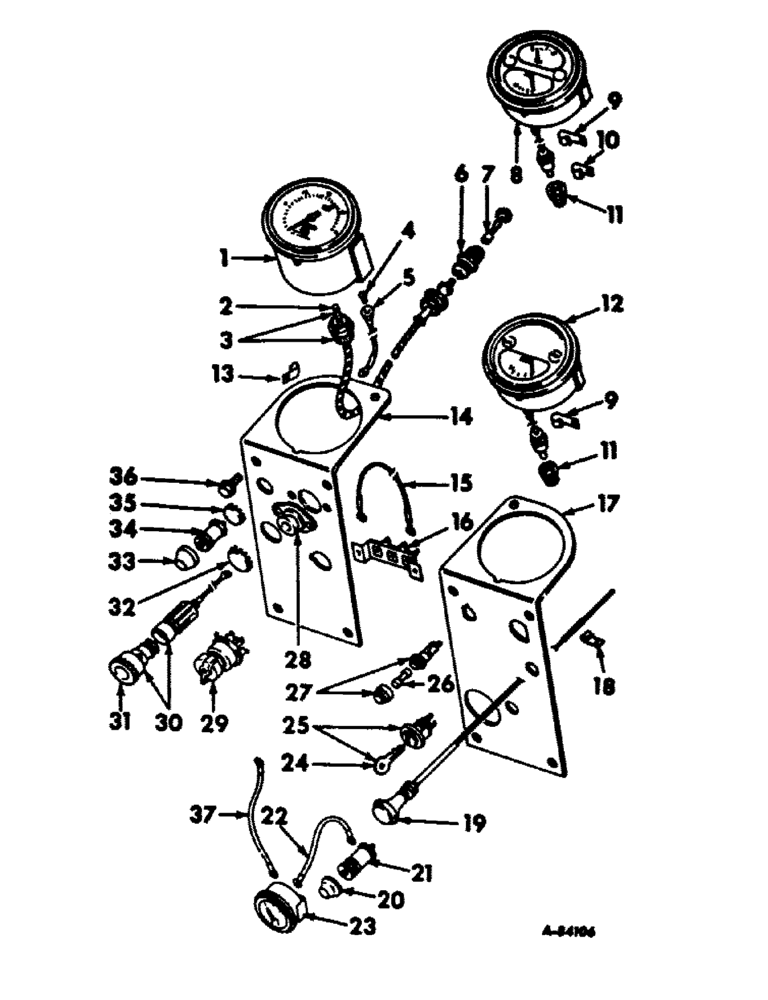

Запчасти Case IH 656 (H-02) - CONTROLS, ENGINE CONTROLS AND INSTRUMENTS, FARMALL TRACTORS Controls

1

398957R1

CLUSTER

SPEEDOMETER-TACHOMETER ASSY, tractors w/hydrostatic drive

1шт.

1

401840R91

SPEEDOMETER-TACHOMETER ASSY, gear drive tractors, Start Serial: 33770

1шт.

1

401841R91

SPEEDOMETER

-TACHOMETER, tractors w/torque amplifier, Start Serial: 33247

1шт.

1

401841R91GV

TACHOMETER

Value, Tachometer

1шт.

1

389973R91

SPEEDOMETER

-TACHOMETER, tractors, w/torque amplifier, Serial Range: -33246

1шт.

1

389030R91

SPEEDOMETER-TACHOMETER ASSY, Serial Range: -33769

1шт.

2

393327R91

CABLE ASSY.

CORE ASSY, tachometer flexible drive shaft, gasoline & diesel engine tractors

1шт.

2

393331R91

CORE

ASSY, tachometer flexible drive shaft, LP gas engine tractors

1шт.

2

401273R1

CORE

flexible drive cable, replaces, 399554R1

1шт.

3

393326R91

CABLE

SHAFT ASSY, tachometer flexible drive, gasoline & diesel engine tractors

1шт.

3

393330R91

CABLE

SHAFT ASSY, tachometer flexible drive, LP gas engine tractors

1шт.

3

398955R92

CABLE

ASSY, speedometer flexible drive, tractors w/hydrostatic drive

1шт.

4

9417863

BULB,C2F, #1895, 14V

LAMP, no. 1895 12 volt, tachometer

4шт.

5

383620R91

ELECTRICAL WIRE

SOCKET ASSY, tachometer light

2шт.

6

398941R1

SLEEVE, speedometer driven gear, tractors w/hydrostatic drive

1шт.

7

398954R1

GEAR

ASSY, speedometer driven

1шт.

8

397939R92

INDICATOR STRIP

CLUSTER ASSY, gauge, gasoline and diesel tractors, will work for 382733R93

1шт.

9

362123R1

CLIP

choke & capillary tube, LP gas engine tractors

1шт.

9

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, choke & capillary tube, 1 for LP gas engine tractors, 2 for gasoline engine tractors

1шт.

9

366460R1

CABLE CLIP

CLIP, choke and capillary tube, diesel engine tractors

1шт.

179812

GEAR

5/16-18 x 1/2 hex-hd cap, 1 per clip

1шт.

10234

NUT, 5/16-18 hex., 1 per clip

1шт.

10

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, capillary tube, on fuel tank RH front mounting bolt, gasoline engine tractors

1шт.

10

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, capillary tube, on fuel tank support channel RH side, LP gas & diesel engine tractors

2шт.

11

51510DA

RESTRICTOR

BUSHING, capillary tube bulb installation, diesel engine tractors

1шт.

12

397938R92

GAUGE

CLUSTER ASSY, gauge, LP gas engine, tractors, will work for 382734R93

1шт.

13

370675R1

CLIP, tachometer flexible drive shaft, LP gas & diesel engine tractors

1шт.

13

362123R1

CLIP

tachometer flexible drive shaft, gasoline engine tractors

1шт.

425-115

NUT,5/16"-24, G5

3/8-16 hex.

1шт.

179831

SCREW,Hex, 3/8" - 16 x 3/8"

3/8-16 x 3/8 hex-hd cap

1шт.

14

382724R91

PANEL

ASSY, instrument LH

1шт.

15

405212R1

HARNESS

CABLE ASSY, horn switch to junction block, will work for 382676R91

1шт.

16

378336R91

BLOCK

ASSY, junction

1шт.

109084

NUT,1/4"-20, G5

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

17

382726R92

PANEL ASSY, instrument RH, carbureted engine tractors

1шт.

17

392782R21

PANEL ASSY, instrument RH, diesel engine tractors

1шт.

17

527316R21

PANEL ASSY, instrument RH, tractors equipped w/underslung fuel tank

1шт.

432487

HOLE PLUG BUTTON,11/16"

PLUG, C-Z panel button, gear drive tractors, Start Serial: 47731

1шт.

18

355574R1

CLIP

choke control, on lower heat shield RH corner, LP gas engine tractors

1шт.

19

363709R95

CONTROL

ASSY, choke, gasoline engine tractors

1шт.

19

374219R93

CABLE

CONTROL ASSY, choke, LP gas engine tractors

1шт.

19

374219R93GV

CABLE

Value, Choke Cable

1шт.

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

124925

JAM NUT,Jam, 3/8"-24, G5

1шт.

20

373612R1

CAP

glow plug switch, red, diesel engine tractors

1шт.

21

393209R91

SWITCH

glow plug, less cap, will work for 373611R91, diesel engine tractors

1шт.

22

375077R91

CABLE

ASSY, glow plug meter to glow plug switch, diesel engine tractors

1шт.

23

378352R91

METER

ASSY, glow plug, diesel engine tractors

1шт.

24

382458R1

KEY

switch

1шт.

25

403562R2

SWITCH

ASSY, key

1шт.

365502R1

NUT

switch mounting

1шт.

375431R1

LOCK WASHER

switch mounting nut

1шт.

26

117142

FUSE,10 Amp, Type 3AG

cartridge type AGC 10, Serial Range: -46202

1шт.

26

432644

FUSE,20 Amp, Type SFE

cartridge type SFE-20, Start Serial: 46203

1шт.

27

376852R91

HOUSING

ASSY, fuse

1шт.

28

366317R93

SWITCH

Starter, push button

1шт.

28

366317R93GV

CONTROL

Value, Control Switch

1шт.

120611

NUT,#10 - 32

10-32 C-Z sw

2шт.

132903

ADAPTER

SCREW, 10-32 x 7/16 C-Z slt-rd-hd mach

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

29

376851R91

LIGHT SWITCH

SWITCH ASSY, lighting

1шт.

29

403571R2

SWITCH

lighting, will work for switch 376851R91

1шт.

30

382671R91

CIGAR LIGHTER

CIGARETTE, lighter parts accessory

1шт.

31

378781R91

PACKAGE

UNIT, pop-out

1шт.

32

432281

HOLE PLUG BUTTON,29/32"

PLUG, cigarette lighter hole button

1шт.

33

371487R1

CYLINDER END CAP

CAP, horn switch dust, gray

1шт.

34

393209R91

SWITCH

ASSY, horn, less cap, will work for 373611R91

1шт.

35

374342R1

PLUG

horn switch

1шт.

36

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, instrument panel mounting

10шт.

37

384458R91

CABLE

ASSY, glow plug meter, diesel engine tractors

1шт.

356445R91

KNOB

fuse housing

1шт.

399139R2

SEAL

speedometer cable

1шт.

368246R1

CONNECTION

HOUSING, tachometer, Serial Range: -30902

1шт.

368245R12

PINION

GEAR ASSY, tachometer, Serial Range: -30902

1шт.
