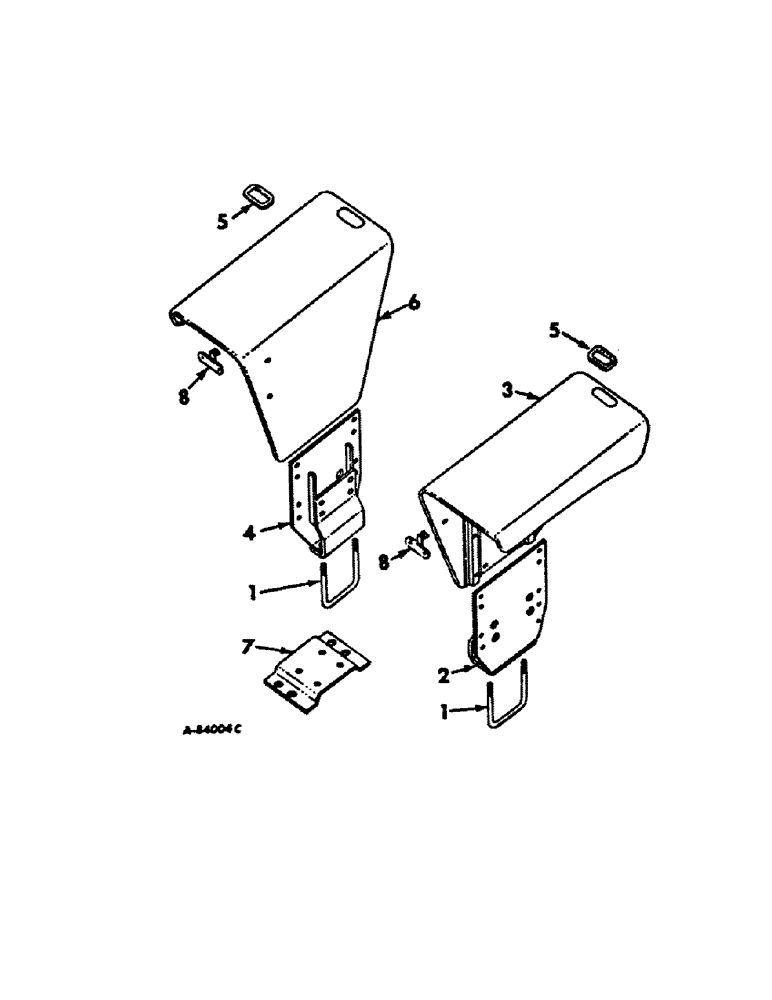

Запчасти Case IH 656 (A-26) - CHASSIS, RADIATOR & SHEET METAL, DELUXE FLAT TOP FENDERS, FARMALL TRACTORS W/ ADJUSTABLE HEADLIGHTS Chassis, Radiator & Sheet Metal

Service parts for deluxe fenders with adjustable lights, for electrical components refer to electrical system, section G

1шт.

1

389262R1

BOLT

fender mounting U, all tractors except hi-clear

2шт.

425-1012

NUT,3/4"-10, G5

3/4-10 hex.

4шт.

584253R1

WASHER

.781 x 1.75 x .188 flat

4шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

2

399340R1

SUPPORT ASSY, fender mounting RH

1шт.

3

399329R2

FENDER ASSY, RH

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

180174

BOLT,Hex, 1/2" - 13 x 1 1/8", Gr 5

SCREW, 1/2-13 x 1-1/8 znd hex-hd cap

4шт.

180176

SCREW,Hex, 1/2" - 13 x 1 3/8", Gr 5

1/2-13 x 1-3/8 znd hex-hd

2шт.

120396

WASHER

17/32 x 1-1/16 x .095 C-Z

4шт.

4

399339R1

SUPPORT ASSY, fender mounting LH

1шт.

5

388940R1

GRIP

fender handle

2шт.

6

399328R2

FENDER ASSY, LH

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

180174

BOLT,Hex, 1/2" - 13 x 1 1/8", Gr 5

SCREW, 1/2-13 x 1-1/8 znd hex-hd cap

4шт.

180176

SCREW,Hex, 1/2" - 13 x 1 3/8", Gr 5

1/2-13 x 1-3/8 znd hex-hd

2шт.

NLS

NO LONGER SERVICED

17/32 x 1-1/16 x .095 C-Z

4шт.

7

390911R1

BRACKET, fender mounting, hi-clear tractors

2шт.

271611

BOLT,Hex, 3/4" - 10 x 2", Gr 5

3/4-10 x 2 hex-hd

4шт.

220081

NUT

3/4-10 hex.

4шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1/2-13 x 1 znd hex-hd cap

8шт.

8

535863R1

BRACKET ASSY, reflector mounting

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

180018

CONNECTING LINK

SCREW, 1/4-20 x 5/8 C-Z hex-hd cap

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.
