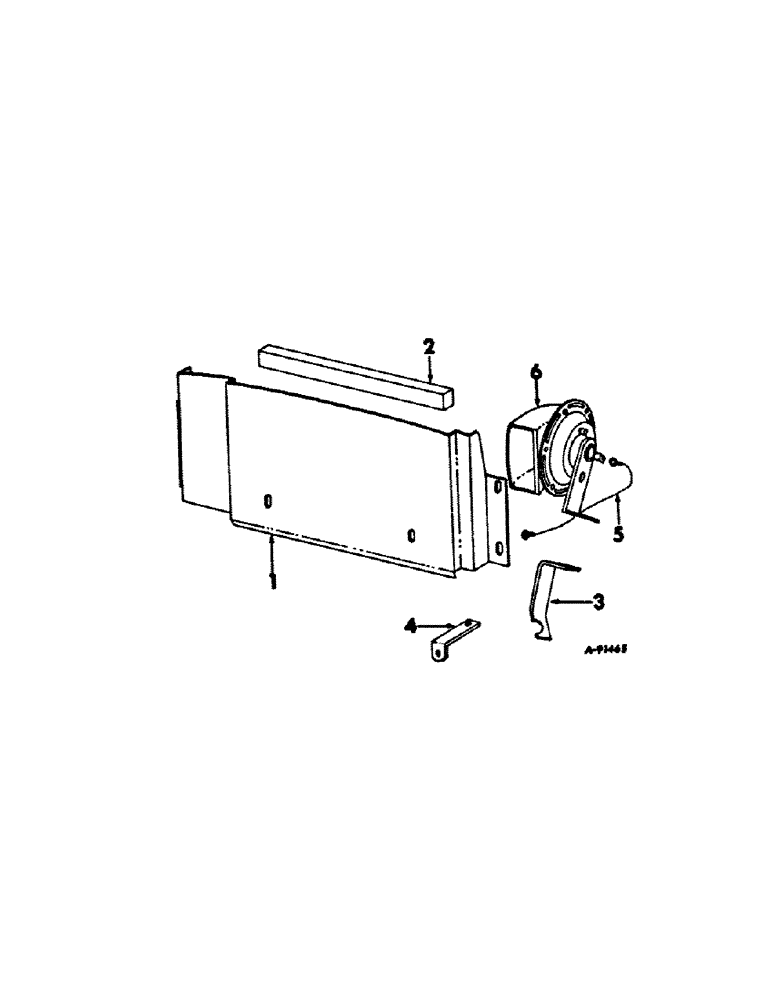

Запчасти Case IH 656 (A-26[A]) - CHASSIS, RADIATOR AND SHEET METAL, PRE-CLEANER BAFFLE, FARMALL GEAR DRIVE TRACTORS Chassis, Radiator & Sheet Metal

1

398746R1

BAFFLE, pre-cleaner

1шт.

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

2шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .065

2шт.

511576R1

SPACER, pre-cleaner baffle

1шт.

2

528936R1

GASKET

SEAL, radiator air, replaces 389600R1

1шт.

3

396529R1

BRACE, horn assy support bracket

1шт.

113913

BOLT,Hex, 3/8" - 16 x 3 3/4", Gr 5

SCREW, 5/16-18 x 7/8 slt-f-hd mach

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

615031R1

WASHER

3/8 x 7/8 x .083

1шт.

4

396527R1

SUPPORT, horn assy.

1шт.

5

405219R1

CABLE

ASSY, horn to ground, replaces 396530R1

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

6

HORN ASSY, not included in parts accessory, see electrical system, section G

1шт.
