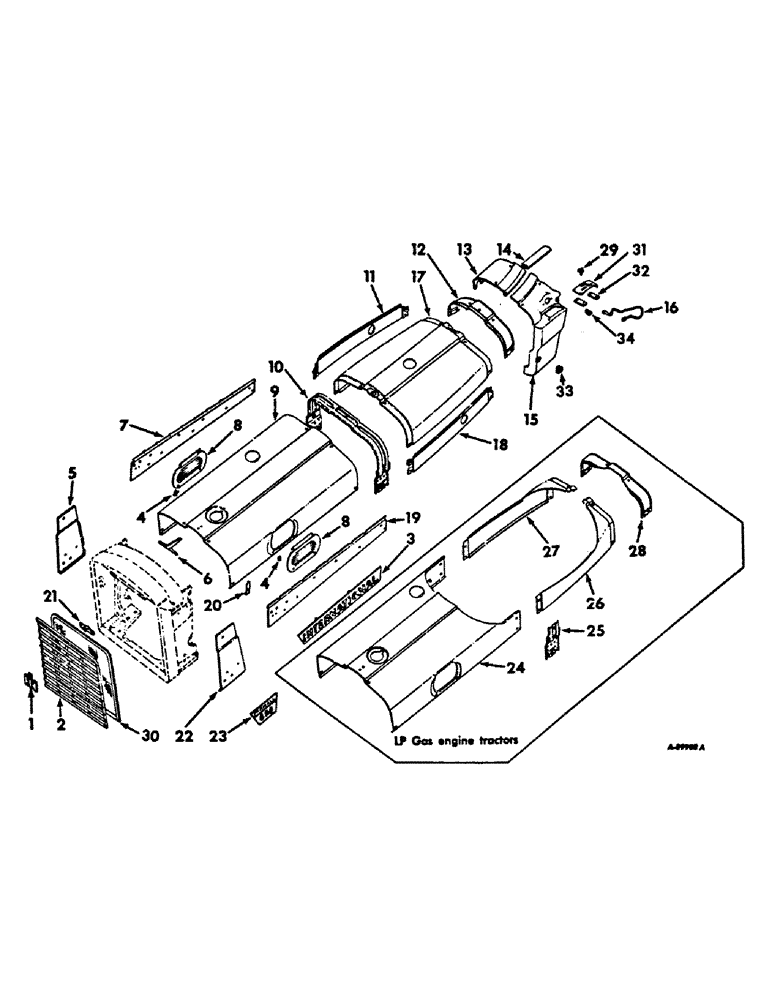

Запчасти Case IH 656 (A-14) - CHASSIS, RADIATOR AND SHEET METAL, HOOD AND RADIATOR GRILLE Chassis, Radiator & Sheet Metal

1

2751845R1

DECAL

PRODUCT GRAPHICS, IH emblem, die casting, optional with 2751848R1

1шт.

159952

SCREW,Cross Pan Hd, #10-24 x 7/8"

10-24 x 7/8 C-Z cr-pan hd mach

2шт.

131015

WASHER

3/16 x 7/16 x .049 C-Z

2шт.

1

2751848R1

PRODUCT GRAPHIC

IH emblem, plastic, optional with 2751845R1

1шт.

163228

KNIFE,Cross Pan Hd, #10 - 16 x 3/4", Type B

SCREW, 10-16 x 3/4 C-Z cr-pan-hd tapping type B

2шт.

446152

HYD CONNECTOR

13/64 x 15/32 x .049 C-Z

2шт.

2

397778R11

GRILLE ASSY, radiator

1шт.

396551R1

SPRING

radiator grille

1шт.

23771R1

PIN, 3/64 x 1 cot, replaces 119357

1шт.

179639

SCREW, O round hd blunt metal drive

1шт.

376786R1

SCREW,Sl Hex Wshr Hd, 5/16" - 18 x 0.75"

5/16-18 x 3/4 slt washer hd cap

2шт.

3

2753920R1

PRODUCT GRAPHIC

PLATE, International name, Serial Range: -46202

1шт.

3

2753920R1

PRODUCT GRAPHIC

PLATE, International name, refer to product graphics package listing, in section M, Start Serial: 46203

1шт.

370786R1

FASTENER

tubular clip

14шт.

4

376787R1

WASHER

RETAINER, screw

10шт.

5

538346R1

PACKAGE, RH radiator support panel, consists of panel & instructions, 1084056R1, tractors w/o air conditioned cab

1шт.

5

403445R1

PANEL ASSY, RH radiator support, tractors w/air conditioned cab

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 hex. washer-hd bevel cap

2шт.

6

369180R1

PRODUCT GRAPHIC

ORNAMENT, hood

1шт.

6

369180R1GV

DECAL

Value, Ornament, Hood

1шт.

423324

SCREW,Hex L/Wshr Hd, #10-24 x 7/16"

w/ext tooth lock washer assy, 10-24 x 7/16 hex-hd mach

2шт.

7

538344R1

PACKAGE, RH front hood side panel, consists of panel, 2 plugs, 432377 and instructions, 1084055R1

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 hex. washer-hd bevel cap

2шт.

432327

HOLE PLUG BUTTON,1"

PLUG, 1 button

2шт.

8

378627R1

COVER

LH front hood access

1шт.

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

SCREW, front hood access cover thumb

2шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 hex. washer hd bevel cap

2шт.

9

398140R91

HOOD ASSY, front, gasoline tractors

1шт.

406450R1

INSULATION, front hood

1шт.

9

398141R91

HOOD ASSY, diesel tractors

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16-18 floating cage

4шт.

389427R91

CAPTIVE WASHER SCREW,Hex, 5/16" - 18 x 3/4"

SCREW, 5/16-18 x 3/4 hex-hd cap w/washer

8шт.

10

395280R92

REINFORCEMENT

ASSY, rear hood front

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16-18 floating cage

6шт.

179814

SPACER

4шт.

11

378639R1

PANEL, RH rear hood side, tractors with side headlights

1шт.

11

378671R1

PANEL

RH rear hood side, tractors with flat top deluxe fenders & adj headlights and, International western special tractors

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 hex. washer hd bevel cap

2шт.

12

378640R1

REINFORCEMENT ASSY, rear hood rear

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16-18 floating cage

2шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

SCREW, 5/16-18 x 1/2 hex-hd cap

2шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

13

388737R1

HOUSING

steering support RH, tractors w/o cab

1шт.

13

402685R91

HOUSING ASSY, steering support RH, tractor with cab

1шт.

21533R1

BOLT

SCREW, 5/16-18 x 5/8 C-Z hex-hd

6шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x 14 ga C-Z

6шт.

14

388295R1

SEAL ASSY.

STRIP, steering support housing, gear drive tractors

1шт.

15

399027R2

HOUSING

steering support LH, tractors w/hydrostatic drive

1шт.

15

388736R1

HOUSING

steering support LH, gear drive tractors

1шт.

15

402684R91

HOUSING ASSY, steering support LH, gear drive tractors w/cab

1шт.

15

402686R91

HOUSING ASSY, steering support LH, hydrostatic tractors w/cab

1шт.

21533R1

BOLT

SCREW, 5/16-18 x 5/8 C-Z hex-hd cap

4шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x 14 ga. C-Z

4шт.

16

396998R1

HANDLE

operators mounting assist, hydrostatic tractors

1шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

SCREW, 5/16-18 x 7/8 hex-hd cap

1шт.

21534R1

BOLT,Hex, 5/16" - 18 x 1"

SCREW, 5/16-18 x 1 CDP hex-hd cap

1шт.

527838R1

SPACER, assist handle

1шт.

16

389031R1

HANDLE

operators mounting assist, gear drive tractors

1шт.

21534R1

BOLT,Hex, 5/16" - 18 x 1"

SCREW, 5/16-18 x 1 CD-PLTD hex-hd cap

1шт.

21535R1

SCREW, 5/16-18 x 1-1/4 CD-PLTD hex-hd

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x 14 ga.

2шт.

17

378637R1

HOOD

rear

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 hex. washer hd bevel cap

2шт.

18

378638R1

PANEL, LH rear hood side, Farmall tractors with side headlights

1шт.

18

378670R1

PANEL, LH rear hood side, Farmall tractors with flat top deluxe fenders & adj headlights and International western special tractors

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 hex. washer hd bevel cap

2шт.

19

538343R1

PACKAGE, LH front hood side panel, consists of panel, 2 plugs, 432377 and instructions, 1084055R1

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 hex. washer-hd bevel cap

2шт.

432327

HOLE PLUG BUTTON,1"

PLUG, 1 button

2шт.

20

369173R1

SPRING

hood panel

6шт.

110633

NUT,#10-24

6шт.

21

397782R1

BRACKET

ASSY, grille retainer

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

22

538345R1

PACKAGE, LH radiator support panel, consists of panel & instructions, 1084056R1

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 hex. washer-hd bevel cap

2шт.

404743R1

BEADING, wear

1шт.

23

2753965R1

PRODUCT GRAPHIC

656 model symbol, Serial Range: -46202

1шт.

23

2753965R1

PRODUCT GRAPHIC

656 model symbol, refer to product graphic package listing, section M, Start Serial: 46203

1шт.

370786R1

FASTENER

tubular clip

4шт.

24

380343R1

HOOD ASSY, front

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16-18 floating cage

4шт.

389427R91

CAPTIVE WASHER SCREW,Hex, 5/16" - 18 x 3/4"

SCREW, 5/16-18 x 3/4 hex-hd cap w/washer

8шт.

25

380423R11

SUPPORT ASSY, rear hood front

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

4шт.

26

380429R1

HOOD, LH rear

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 hex. washer hd bevel cap

2шт.

27

380430R1

HOOD, RH rear

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 hex. washer hd bevel cap

2шт.

28

380431R11

REINFORCEMENT ASSY, rear hood, rear

1шт.

179812

GEAR

SCREW, 5/16-18 x 1/2 hex-hd cap

2шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

29

399023R1

KNOB

fluted, hydrostatic tractors

1шт.

30

397785R1

SCREEN

radiator grille

1шт.

31

402360R1

LARGE PLATE

PLATE AND PRODUCT GRAPHIC ASSY, hydrostatic tractors

1шт.

32

399022R2

BAR

nut, hydrostatic tractors

2шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW, 1/4-20 x 1/2 C-Z hex-hd cap

4шт.

33

399025R1

CHANNEL, LH steering support housing bracket, hydrostatic tractors

1шт.

179823

BOLT,Hex, 5/16" - 18 x 1 5/8", Gr 5

SCREW, 5/16-18 x 5/8 hex-hd cap

1шт.

34

399024R1

RETAINER

STOP, control handle detent, hydrostatic tractors

1шт.

2754103R1

PRODUCT GRAPHIC, hydrostatic, hydrostatic tractors, Serial Range: -46202

1шт.

2754103R1

PRODUCT GRAPHIC, hydrostatic, refer to product graphics package listing, section M, Start Serial: 46203

1шт.

445210

FASTENER, push on type spring nut

2шт.
