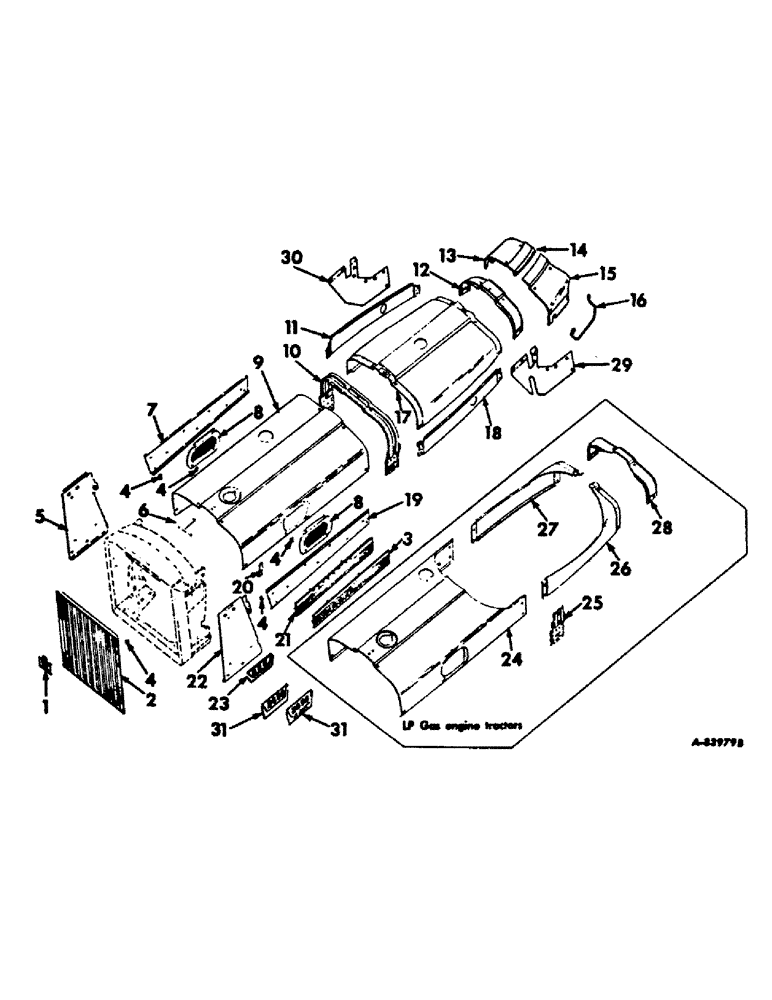

Запчасти Case IH 656 (A-11) - CHASSIS, RADIATOR AND SHEET METAL, HOOD AND RADIATOR GRILLE Chassis, Radiator & Sheet Metal

1

2751845R1

DECAL

PRODUCT GRAPHICS, IH emblem, die casting, optional with 2751848R1

1шт.

155097

SCREW, 10-24 x 5/16 rd-hd cr-rec mach

2шт.

NLS

NO LONGER SERVICED

3/16 x 7/16 x .049 C-Z

2шт.

1

2751848R1

PRODUCT GRAPHIC

IH emblem, plastic, optional with 2751845R1

1шт.

385129R1

SCREW,Sl Rnd Hd, #10 - 16 x 3/8"

10-16 x 3/8 thd-cutting

2шт.

446156

HYD CONNECTOR

WASHER, 13/64 x 15/32 x .049 C-Z

2шт.

2

379995R21

GRILLE

ASSY, radiator, Farmall tractors

1шт.

376786R1

SCREW,Sl Hex Wshr Hd, 5/16" - 18 x 0.75"

5/16-18 x 3/4 slt washer hd cap

2шт.

2

396548R11

GRILLE ASSY, radiator, International tractors

1шт.

370786R1

FASTENER

tubular clip

14шт.

3

381553R1

PRODUCT GRAPHIC

PLATE, MC Cormick International name

2шт.

370786R1

FASTENER

screw

10шт.

4

376787R1

WASHER

RETAINER, screw

10шт.

5

378665R1

PANEL ASSY, RH radiator support, Farmall tractors

1шт.

5

395465R11

PANEL ASSY, RH radiator support, Farmall tractors w/air conditioned cab

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16-18 floating cage

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 hex. washer hd bevel cap

3шт.

5

396265R1

PANEL, radiator support RH, International tractors

1шт.

389427R91

CAPTIVE WASHER SCREW,Hex, 5/16" - 18 x 3/4"

SCREW, hex-hd cap with washer

3шт.

6

369180R1

PRODUCT GRAPHIC

ORNAMENT, hood

1шт.

6

369180R1GV

DECAL

Value, Ornament, Hood

1шт.

423324

SCREW,Hex L/Wshr Hd, #10-24 x 7/16"

w/ext tooth lock washer assy, 10-24 x 7/16 hex-hd mach

2шт.

7

378669R1

PANEL, RH front hood side, Farmall tractors

1шт.

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

SCREW, front hood side panel thumb

2шт.

7

396267R1

PANEL, front hood sied RH, International tractors

1шт.

389427R91

CAPTIVE WASHER SCREW,Hex, 5/16" - 18 x 3/4"

SCREW, hex-hd cap with washer

3шт.

8

378627R1

COVER

LH front hood access

1шт.

8

378627R1

COVER

RH front hood access

1шт.

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

SCREW, front hood access cover thumb

2шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 hex. washer hd bevel cap

2шт.

389427R91

CAPTIVE WASHER SCREW,Hex, 5/16" - 18 x 3/4"

SCREW, hex-hd cap w/washer, International tractors

2шт.

9

378663R12

HOOD ASSY, front, Farmall gasoline tractors, Serial Range: -26264

1шт.

9

398140R91

HOOD ASSY, front, Farmall gasoline, Start Serial: 26265

1шт.

9

396258R1

HOOD ASSY, front, International gasoline tractors

1шт.

9

384286R12

HOOD ASSY, front, Farmall diesel tractors, Serial Range: -26264

1шт.

9

398141R91

HOOD ASSY, Farmall diesel tractors, Start Serial: 26265

1шт.

9

396260R1

HOOD ASSY, International diesel tractors

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16-18 floating cage

4шт.

389427R91

CAPTIVE WASHER SCREW,Hex, 5/16" - 18 x 3/4"

SCREW, 5/16-18 x 3/4 hex-hd cap w/washer

8шт.

10

395280R92

REINFORCEMENT

ASSY, rear hood front, Farmall tractors

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16-18 floating cage

6шт.

179814

SPACER

4шт.

10

378635R11

REINFORCEMENT ASSY, rear hood front, International tractors

1шт.

179814

SPACER

4шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

4шт.

11

378639R1

PANEL, RH rear hood side, tractors with side headlights

1шт.

11

378671R1

PANEL

RH rear hood side, tractors with flat top deluxe fenders & adj headlights and International western special tractors

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 hex. washer hd bevel cap

2шт.

12

378640R11

REINFORCEMENT ASSY, rear hood rear

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16-18 floating cage

2шт.

179812

GEAR

SCREW, 5/16-18 x 1/2 hex-hd cap

2шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

13

388737R1

HOUSING

steering support RH, Farmall tractors

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

SCREW, 5/16-18 x 5/8 hex-hd cap

6шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x 14 ga

6шт.

13

393257R2

HOUSING, steering support RH, Farmall tractors with cab

1шт.

14

388295R1

SEAL ASSY.

STRIP, steering support housing, Farmall tractors

1шт.

15

388736R1

HOUSING

steering support LH, Farmall tractors

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

SCREW, 5/16-18 x 5/8 hex-hd cap

4шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x 14 ga

4шт.

16

389031R1

HANDLE

operators mounting assist, Farmall tractors

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 hex-hd cap

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

5/16"-18 x 1-1/4" hex-hd cap

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x 14 ga

2шт.

17

378637R1

HOOD

rear, Farmall tractors

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 hex. washer hd bevel cap

2шт.

17

396274R1

HOUSING, instrument panel, International tractors

1шт.

397064R1

NUT

U-type speed

12шт.

18

378638R1

PANEL, LH rear hood side, Farmall tractors with side headlights

1шт.

18

378670R1

PANEL, LH rear hood side, Farmall tractors with flat top deluxe fenders & adj headlights and International western special tractors

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 hex. washer hd bevel cap

2шт.

19

378668R1

PANEL, LH front hood side, Farmall tractors

1шт.

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

SCREW, front hood side panel thumb

2шт.

19

396266R1

PANEL front hood side LH, International tractors

1шт.

389427R91

CAPTIVE WASHER SCREW,Hex, 5/16" - 18 x 3/4"

SCREW, hex-hd cap with washer

3шт.

20

369173R1

SPRING

hood panel

6шт.

110633

NUT,#10-24

6шт.

21

377796R1

PRODUCT GRAPHIC

PLATE, MC Cormick Farmall name

2шт.

Decal No Longer Avaialbe

1шт.

370786R1

FASTENER

tubular clip

14шт.

22

378664R11

PANEL ASSY, LH radiator support, Farmall tractors

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16-18 floating cage

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 X 5/8 hex. washer hd bevel cap

3шт.

22

396264R1

PANEL, radiator support LH, international tractors

1шт.

389427R91

CAPTIVE WASHER SCREW,Hex, 5/16" - 18 x 3/4"

SCREW, hex-hd cap with washer

2шт.

23

2752678R1

PRODUCT GRAPHIC

656 model symbol

2шт.

23

2753278R1

PRODUCT GRAPHIC, 656 LP gas model symbol, Farmall tractors

2шт.

23

2752679R1

PRODUCT GRAPHIC

656 diesel model symbol

2шт.

23

2753553R1

PRODUCT GRAPHIC, 656 hi-clear model symbol

2шт.

370786R1

FASTENER

tubular clip

4шт.

24

380343R11

HOOD ASSY, front, Farmall tractors

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16-18 floating cage

4шт.

389427R91

CAPTIVE WASHER SCREW,Hex, 5/16" - 18 x 3/4"

SCREW, 5/16-18 x 3/4 hex-hd cap w/washer

8шт.

25

380423R11

SUPPORT ASSY, rear hood front, Farmall tractors

1шт.

179814

SPACER

4шт.

26

380429R1

HOOD, LH rear, Farmall tractors

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 hex. washer hd bevel cap

1шт.

27

380430R1

HOOD, RH rear Farmall tractors

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 hex. washer hd bevel cap

1шт.

28

380431R11

REINFORCEMENT ASSY, rear hood, rear, Farmall tractors

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16-18 x 1/2 hex-hd cap

2шт.

179812

GEAR

SCREW, 5/16-18 x 1/2 hex-hd cap

2шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

29

396269R1

PANEL ASSY, rear hood lower LH, International tractors

1шт.

30

396270R1

PANEL ASSY, rear hood lower RH, International tractors

1шт.

179810

SCREW,Hex, 5/16" - 18 x 3/8", Gr 5, Full Thd

BOLT, Hex, 5/16"-18 x 3/8", G5, Full Thd

6шт.

31

396672R1

PRODUCT GRAPHIC, 2656 model symbol

2шт.

370786R1

FASTENER

CLIP, plate fastener

4шт.

31

396673R1

PRODUCT GRAPHIC, 2656 diesel model symbol

2шт.

370786R1

FASTENER

CLIP, plate fastener

4шт.

396268R93

BRACKET, reinforcement rear hood, International tractors

2шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

2шт.

179812

GEAR

SCREW, 5/16-18 x 1/2 hex-hd cap

2шт.

73007R1

SPACER, bracket reinforcement

2шт.

2753404R1

PRODUCT GRAPHIC, western special decal

2шт.
