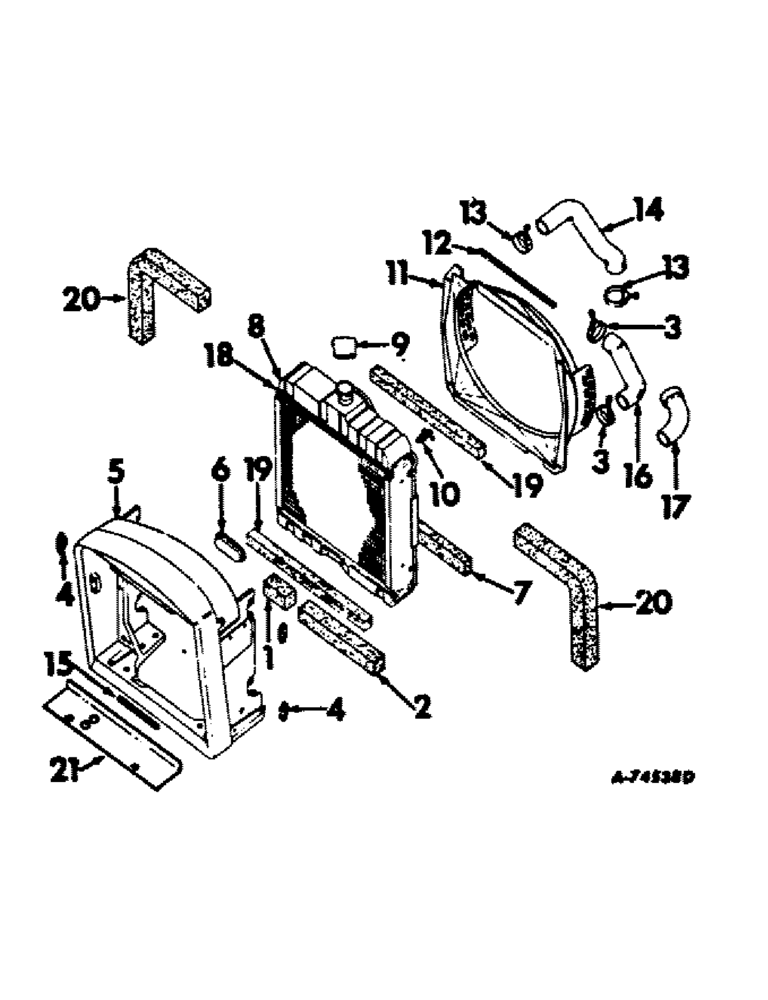

Запчасти Case IH 656 (A-10) - CHASSIS, RADIATOR AND SHEET METAL, RADIATOR AND CONNECTIONS Chassis, Radiator & Sheet Metal

1

394815R1

GASKET, radiator baffle 1-3/4 x 1-3/4 x 4 in, Farmall hydrostatic tractors

1шт.

2

400826R1

GASKET, radiator baffle 1-3/4 x 1-3/4 x 13-1/2 in., Farmall hydrostatic tractors

1шт.

2

383839R1

GASKET

GASKET, radiator baffle 1-3/4 x 1-3/4 x 20 in., Farmall gear drive tractors

1шт.

3

81448H

EXCITER

CLAMP, radiator outlet hose, replaces 39205H

2шт.

4

378710R91

PLATE ASSY.

BRACKET, radiator mounting plate

4шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

8шт.

179796

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

SCREW, 1/4-20 x 7/8 hex-hd cap

4шт.

5

398625R1

SUPPORT, radiator, Farmall tractors

1шт.

617937R1

PIN,1/4" x 7/8", Coiled

2шт.

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

SCREW, 5/8-11 x 2-3/4 hex-hd cap

5шт.

384317R1

SCREW, 5/8-11 x 2-3/4 12-pt-hd cap

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

5

395825R21

SUPPORT ASSY, radiator, International tractors

1шт.

271564

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 5

SCREW, 5/8-11 x 2-1/2 hex-hd cap

4шт.

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

SCREW, 5/8-11 x 3-1/2 hex-hd cap

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

102635

NUT,3/8"-16, G5

5/8-11 hex.

2шт.

19534R1

PIN,1/4" x 1 1/2", Coiled

1шт.

617937R1

PIN,1/4" x 7/8", Coiled

2шт.

6

383788R1

PLUG

radiator support, Farmall tractors

1шт.

7

403381R1

SEAL, radiator air, Start Serial: 9622

1шт.

8

378713R92

RADIATOR

ASSY, less filler cap, Farmall gasoline tractors

1шт.

8

378713R92GV

RADIATOR

Value, Radiator

1шт.

8

395905R2

RADIATOR ASSY, less filler cap, International gasoline gear drive tractors

1шт.

8

391200R91

RADIATOR, less filler cap, Farmall diesel gear drive tractors

1шт.

8

396734R1

RADIATOR ASSY, less filler cap, Farmall diesel hydrostatic tractors

1шт.

8

396496R2

RADIATOR

less filler cap, will work for 399478R1 & 399577R1, International diesel gear drive & hydrostatic tractors, International gasoline hydrostatic tractors

1шт.

9

393229R91

CAP

radiator filler, pressure, Farmall tractors, Serial Range: -30762

1шт.

9

393229R91

CAP

radiator filler, pressure, International tractors, Serial Range: -9620

1шт.

9

402281R1

CYLINDER END CAP

CAP, radiator pressure, Farmall tractors, Start Serial: 30763

1шт.

9

402281R1

CYLINDER END CAP

CAP, radiator pressure, International tractors, Start Serial: 9621

1шт.

10

614201R1

VALVE

COCK, 1/4 drain, radiator

1шт.

11

388860R21

SHROUD, fan, Farmall tractors

1шт.

179789

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

4шт.

95-11028

WASHER,1/4"

9/32 x 5/8 x .051

4шт.

11

396192R3

SHROUD, fan, International tractors

1шт.

179789

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

4шт.

95-11028

WASHER,1/4"

9/32 x 5/8 x .051

4шт.

12

389599R1

SEAL, fan housing, Farmall tractors

1шт.

13

81448H

EXCITER

CLAMP, radiator inlet hose, replaces 39205H

2шт.

14

379237R2

RADIATOR HOSE,2.00" ID x 7.90", SAE 20R4, CLASS R, GRADE 1A

Inlet, Farmall tractors 2.00" ID x 7.90", SAE 20R4, CLASS R, GRADE 1A, GAS

1шт.

14

396193R1

RADIATOR HOSE,2.00" ID x 8.40", SAE 20R4 CLASS R GRADE 1A

Inlet, International tractors 2.00" ID x 8.40", SAE 20R4 CLASS R GRADE 1A

1шт.

15

389600R1

STRIP

SEAL, radiator air, Farmall tractors

1шт.

16

369922R1

HOSE ASSY.,50.80mm ID x 170.20mm, SAE 20R4 Cl R, Gr 1

RADIATOR HOSE, , Outlet, Farmall Gasoline Tractors 50.80 mm ID x 170.20 mm, SAE 20R4 Class R, Grade 1

1шт.

16

369922R1GV

RADIATOR HOSE

Value, Radiator hose

1шт.

16

395906R1

RADIATOR HOSE,2.00" ID x 8.18", SAE 20R4, CLASS GRADE 1A

Outlet, International gasoline tractors 2.00" ID x 8.18", SAE 20R4, CLASS GRADE 1A

1шт.

17

371307R1

HOSE ASSY.,50.80 mm ID x 134.60 mm, SAE 20R4

RADIATOR HOSE, , Outlet (Farmall Diesel Tractors) 50.80 mm ID x 134.60 mm, SAE 20R4

1шт.

17

395907R1

RADIATOR HOSE,2.00" ID x 7.00", SAE 20R4 CLASS R4 GRADE 1A

Outlet, International diesel tractors 2.00" ID x 7.00", SAE 20R4 CLASS R4 GRADE 1A

1шт.

18

385631R1

SEAL

radiator air, Farmall tractors

1шт.

19

385631R1

SEAL

radiator air, International tractors

2шт.

20

403382R1

SEAL, radiator air, International tractors, replaces 383839R1

2шт.

21

399496R1

SHIELD, radiator support, International gear drive tractors, Serial Range: -14360

1шт.

399397R1

BUSHING

snap

2шт.

21

538670R1

SHIELD, radiator support, Start Serial: 14361

1шт.

538668R1

BUSHING

snap

2шт.

397242R1

BRACE, side panel, International tractors

2шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

95-11028

WASHER,1/4"

9/32 x 5/8 x .051

2шт.
