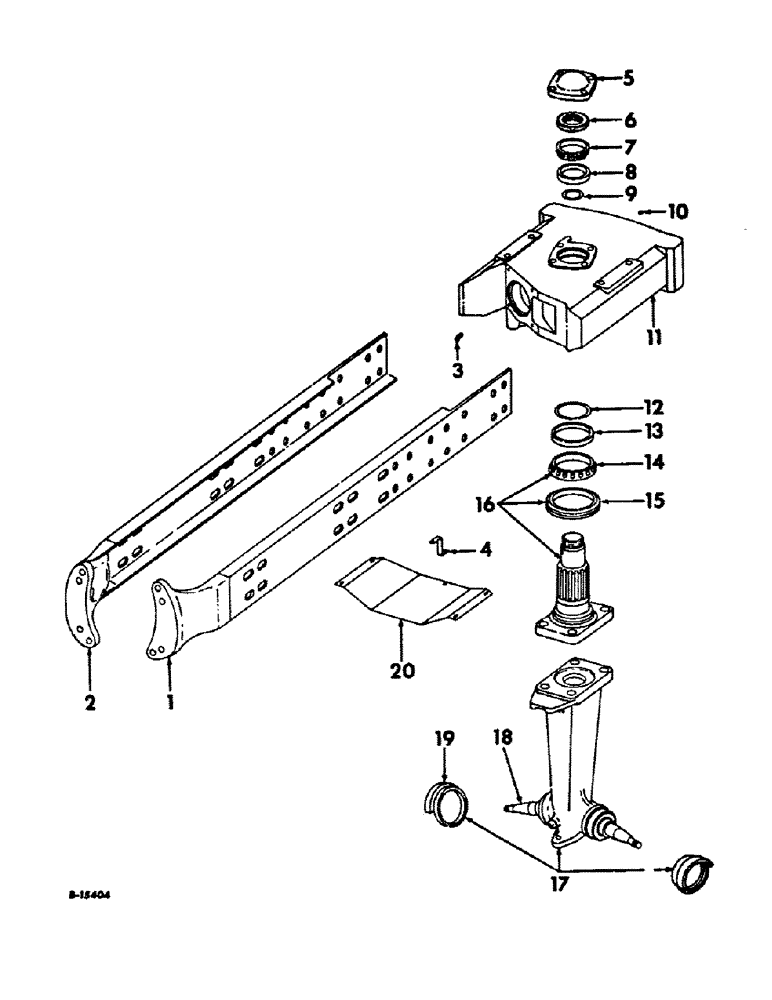

Запчасти Case IH 656 (A-08) - CHASSIS, RADIATOR AND SHEET METAL, FRONT FRAME CHANNELS AND BOLSTERS, FARMALL TRACTORS Chassis, Radiator & Sheet Metal

1

388325R31

CHANNEL ASSY, RH front frame

1шт.

13-1022

BOLT,Hex, 5/8" - 11 x 1-3/8", Gr 5, Full Thd

SCREW, 5/8-11 x 1-3/8 hex-hd cap

4шт.

271564

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 5

SCREW, 5/8-11 x 2-1/2 hex-hd cap

4шт.

359259R1

BOLT,Hex, 5/8" - 11 x 2"

SCREW, 5/8-11 x 2 hex-hd cap

4шт.

2

388324R31

CHANNEL ASSY, LH front frame

1шт.

271557

DEFLECTOR,Hex, 5/8" - 11 x 1 3/8", Gr 5

SCREW, 5/8-11 x 1-3/8 hex-hd cap

4шт.

359259R1

BOLT,Hex, 5/8" - 11 x 2"

SCREW, 5/8-11 x 2 hex-hd cap

4шт.

3

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING, 3/16 65 deg angle drive type lub

1шт.

4

(Not used in this application)

1шт.

5

378648R1

COVER

upper bolster pivot shaft

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

4шт.

6

374248R1

NUT

upper bolster pivot shaft

1шт.

7

ST2086

BEARING ASSY,44.45mm ID x 29.9mm W

upper bolster pivot shaft upper cone

1шт.

8

13207D

BEARING CUP,95.28mm OD x 22.35mm W

BEARING, upper bolster pivot shaft upper cup

1шт.

9

259246R1

O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro

3-7/8 x 4-1/8 x 1/8

1шт.

10

447687

BRACKET

PLUG, 1/8-27 auto-hex-soc-hd pipe

1шт.

11

397478R11

SPARE PART

BOLSTER, w/bearing, 13207D, bearing, ST981 & plug, 444687, upper

1шт.

12

252734R1

O-RING,0.21" Thk x 2.725" ID, -335, Cl 5, 75 Duro

2-3/4 x 3-1/8 x 3/16

1шт.

13

ST981

BEARING CONE,112.71mm OD x 19.05mm W

BEARING, upper bolster pivot shaft lower cup

1шт.

14

ST2087

TAPERED BEARING,2.7815" ID x 4.4385" OD x 1.014"

BEARING, upper bolster pivot shaft lower cone

1шт.

15

369380R91

OIL SEAL

upper bolster pivot shaft oil

1шт.

16

379363R21

SHAFT

ASSY, upper bolster pivot

1шт.

17

369855R1

BOLSTER ASSY, lower

1шт.

271611

BOLT,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4-10 x 2 hex-hd cap

4шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

18

369856R1

AXLE

front

1шт.

427639

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16 slt hex.

2шт.

108634

PIN, 5/32 x 1-3/8 cot.

2шт.

14542R1

RIVET, 5/8 x 3-1/2 rd-hd

1шт.

19

48541D

SHIELD

front wheel dust

2шт.

20

381714R1

SHIELD

fan pulley

1шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.
