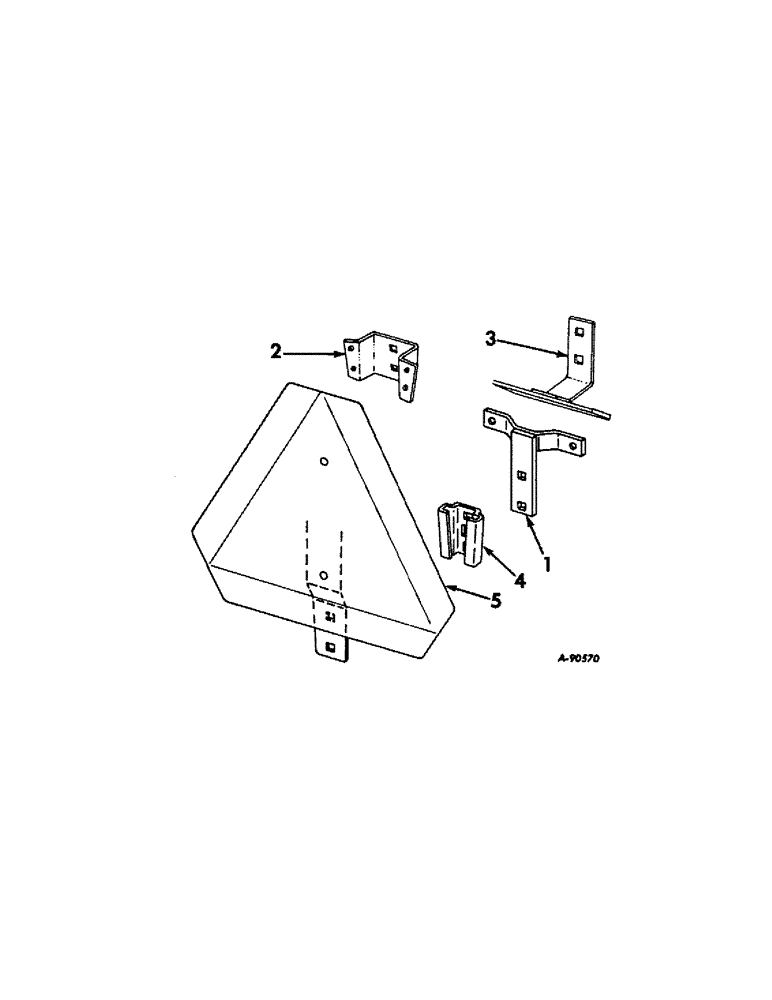

Запчасти Case IH 656 (N-20[A]) - PARTS ACCESSORIES AND ATTACHMENTS, SLOW MOVING VEHICLE REFLECTOR MOUNTING BRACKET Accessories & Attachments

398972R91

PARTS ACCESSORY, S.M.V. mtg bracket, Farmall tractors equipped with vertical acting seat

1шт.

401374R91

PARTS ACCESSORY, S.M.V. mtg bracket, Farmall tractors equipped w/cab

1шт.

534763R91

PARTS ACCESSORY, S.M.V. mtg bracket, International tractors

1шт.

1

398973R1

BRACKET

ASSY, reflector mounting, Farmall tractors equipped with vertical acting seat

1шт.

1

534711R1

BRACKET ASSY, S.M.V. emblem mounting, International tractors

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

3/8-16 x 3/4 hex-hd

2шт.

2

(Not used in this application)

1шт.

3

401376R1

SUPPORT ASSY, reflector mounting, Farmall tractors equipped w/cab

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C-Z hex-hd cap

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

4

398976R1

BRACKET

SOCKET, SMV emblem mounting

1шт.

19428R1

BOLT, 5/16-18 x 5/8 CD short sq-nk crg

2шт.

19296R1

NUT,5/16"-18, G5

5/16-18 C-Z hex.

2шт.

5

407218R1

PACKAGE

EMBLEM, slow moving vehicle, aluminum.

1шт.

5

407220R1

PRODUCT GRAPHIC

EMBLEM, slow moving vehicle, steel

1шт.
