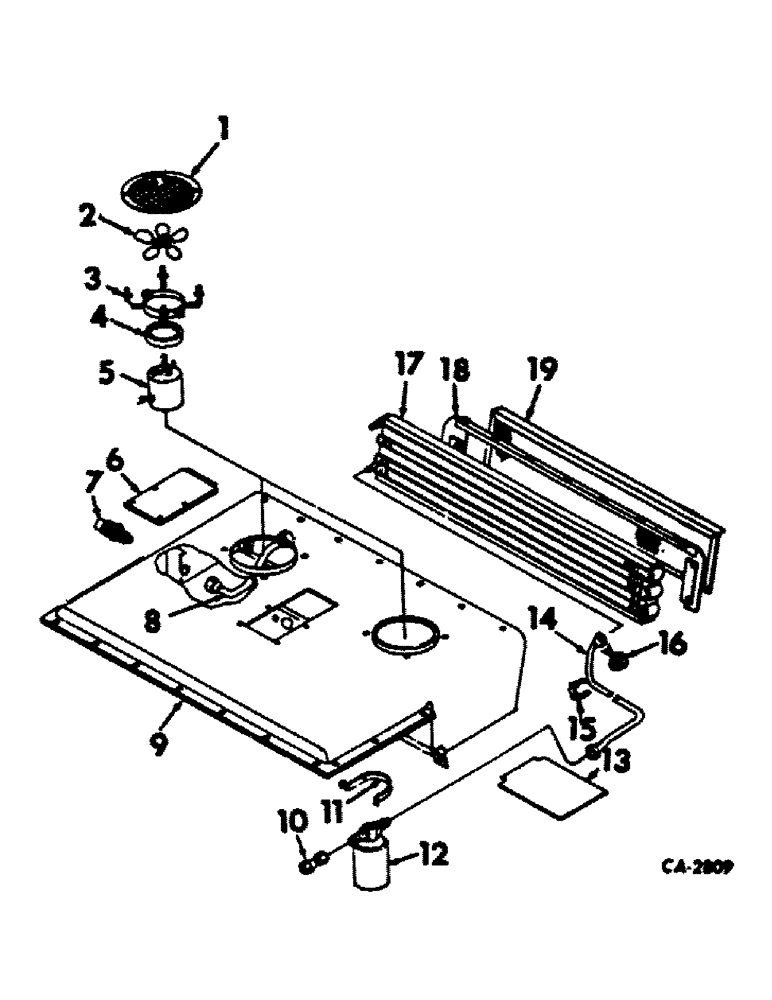

Запчасти Case IH 656 (N-17) - PARTS ACCESSORIES AND ATTACHMENTS, CONDENSER Accessories & Attachments

398742R91

CONDENSER ASSY, pre-charged unit

1шт.

1

528494R1

GUARD, condenser fan

2шт.

2

528495R1

FAN, condenser

2шт.

3

528496R1

BRACKET, motor mount

4шт.

399467R1

NUT, 1/4-20 ni-pltd acorn

8шт.

4

155493C1

RING, motor mount insulator

2шт.

112734

GROMMET, rubber 3/8" ID x 11/16" x .062"

1шт.

5

528497R1

MOTOR, condenser fan

2шт.

402712R1

SLINGER, motor

1шт.

6

402940R1

PLATE, access

1шт.

7

155723C91

COUPLING, 3/4-16 x 1-1/2 male

1шт.

399416R1

NUT, 3/4-16 hex brass

1шт.

8

399421R1

TUBE AND FITTING ASSY, Serial Range: condenser-compressor

1шт.

9

528498R1

JACKET ASSY, condenser

1шт.

10

155490C91

COUPLING, 5/8-18 x 1-16 female

1шт.

11

528499R1

CLAMP, filter and drier

1шт.

12

155485C91

FILTER AND DRIER ASSY

1шт.

13

399414R1

PLATE, clean out

2шт.

14

528500R1

TUBE AND FITTING ASSY, Serial Range: condenser-receiver

1шт.

15

155482C1

CLIP

thermostat mounting

1шт.

16

155491C91

THERMOSTAT

SWITCH, condenser thermostat

1шт.

17

528501R1

CORE ASSY, condenser

1шт.

18

528502R1

RETAINER, condenser core

1шт.

19

528503R1

FILTER, condenser core

1шт.
