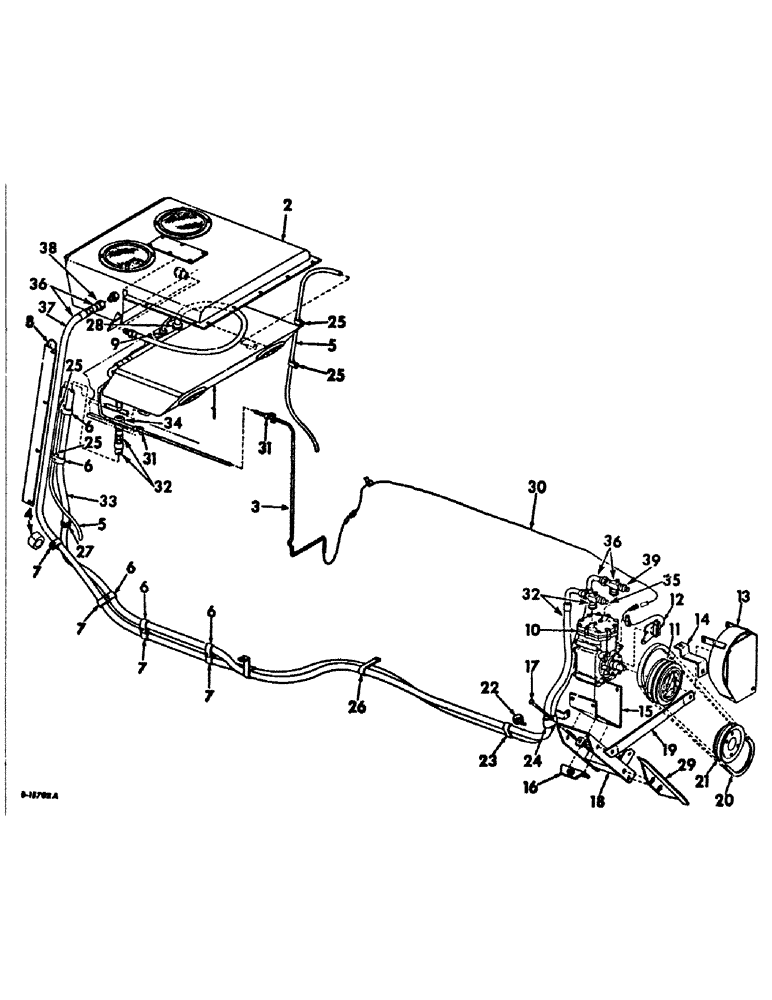

Запчасти Case IH 656 (N-15) - PARTS ACCESSORIES AND ATTACHMENTS, TRACTOR CAB AIR CONDITIONER AND CONNECTIONS, FARMALL TRACTORS Accessories & Attachments
№
Артикул
Название
Примечание
Количество
1
395419R1
EVAPORATOR ASSY, pre-charged unit, for components, see list under detail of evaporator
1шт.
2
398742R91
CONDENSER ASSY, pre-charged unit, will work for 395420R91, for components see list under details of condenser
1шт.
120376
NUT,5/16"-18, G5
2шт.
215331R
SCREW, 5/16-18 x 5/8 C-Z hex-hd cap
4шт.
180078
BOLT,Hex, 5/16" - 18 x 7/8", Gr 5
SCREW, 5/16-18 x 7/8 C-Z hex-hd cap
9шт.
405122R1
WASHER, condenser screw seal
11шт.
120393
BEARING WASHER,5/16", SAE
WASHER, 11/32 x 11/16 x .065 C-Z
4шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
3
399436R1
HARNESS ASSY, evaporator
1шт.
4
394134R1
SEAL
STRIP, cushion
1шт.
5
HOSE, drain, use 50 in. cut from a 50 ft. roll marked 665181R1
2шт.
6
120530
CLIP
CLAMP, 1 inch C-Z closed
5шт.
7
120529
CLIP
CLAMP, 7/8 inch C-Z closed
4шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
5шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
5шт.
8
395434R1
COVER, hose
1шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
5шт.
272519
SCREW
BOLT, 1/4-20 x 1 C-Z slt truss-hd mach
4шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
5шт.
9
123548H
GROMMET
rubber, roof cable harness
1шт.
10
406836R91
COMPRESSOR
w/dust-cap, Tecumseh Products Co, order compressor, 417888C92
1шт.
406838R1
FLINGER, dust cap
1шт.
406839R1
KIT, seal service
1шт.
10
527541R91
AIRCOND. COMPRESSOR
COMPRESSOR, w/cap air conditioner, Tecumseh Products Co., order compressor, 417888C92, only serviceable items are
1шт.
406838R1
FLINGER, dust cap
1шт.
527733R1
GASKET
rotalock
2шт.
527731R1
HEAD, rotalock valve type cylinder
1шт.
302810C91
KIT, air conditioner compressor gasket
1шт.
527624R91
SEAL KIT
seal service
1шт.
527732R91
KIT, valve plate
1шт.
527730R1
SCREW, 5/16-24 x 1-3/8 12 PT head cap
4шт.
10
417888C92
COMPRESSOR
air conditioner, york, replaced compressor 406836R91 and compressor, 527541R91
1шт.
11
400549R91
CLUTCH
ASSY, sheave, 6.00 OD, replaces 395418R91, for components see list of parts under detail of sheave clutch
1шт.
572838R1
WASHER, special
1шт.
20883R1
SCREW, 5/16-24 x 1-1/2 C-Z hex-hd nylock cap
1шт.
12
388177C1
BRUSH AND BRACKET ASSY, lead, tractors equipped w/clutch assy, 395418R91
1шт.
366460R1
CABLE CLIP
CLIP, clutch coil lead
1шт.
13
395436R91
SHIELD ASSY
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
3шт.
14
395481R1
BRACE, shield strap, gasoline engine tractors
1шт.
14
395441R1
BRACE, shield strap, diesel engine tractors
1шт.
120376
NUT,5/16"-18, G5
1шт.
180075
BOLT,Hex, 5/16" - 18 x 5/8", Gr 5
SCREW, 5/16-18 x 5/8 C-Z hex-hd cap
1шт.
120379
WASHER, 5/16 C-Z med lock
1шт.
15
395442R1
BRACKET, compression support
1шт.
19431R1
BOLT
3/8 x 1-1/8 C-Z sq-nk crg
4шт.
120377
NUT,3/8" - 16, Gr 5
4шт.
180121
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5
SCREW, 3/8-16 x 7/8 C-Z hex-hd cap
4шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
4шт.
20803R1
WASHER
13/32 x 1 x 11 ga C-Z
4шт.
16
395443R93
BRACKET ASSY, tightener
1шт.
17
395446R2
BOLT, adjusting
1шт.
18
395448R92
SUPPORT ASSY, compressor, gasoline engine tractors
1шт.
18
395459R92
SUPPORT ASSY, compressor, diesel engine tractors
1шт.
180077
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
SCREW, 5/16-18 x 3/4 hex-hd cap
3шт.
180123
BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd
SCREW, 3/8-16 x 1-1/8 C-Z hex-hd cap
3шт.
120638
LOCK WASHER
WASHER, 5/16 HV lock
3шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
3шт.
19
395453R1
BRACE, compressor support strap, gasoline engine tractors
1шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
120376
NUT,5/16"-18, G5
5/16-24 C-Z hex.
1шт.
181608
BOLT,Hex, 5/16" - 24 x 1", Gr 5
SCREW, 5/16-24 x 1 C-Z hex-hd cap
1шт.
180122
BOLT,Hex, 3/8" - 16 x 1", Gr 5
3/8-16 x 1 C-Z hex-hd cap
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
20
530262R1
BELT 0.59" W x 62.00" L, Compressor drive 0.59" W x 62.00" L
1шт.
21
632947R1
SHEAVE, compressor drive
1шт.
180126
BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5
SCREW, 3/8-16 x 1-1/2 C-Z hex-hd cap
4шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
4шт.
22
39114H
CLAMP
hose
1шт.
23
395466R1
CLIP, hose
1шт.
24
394271R1
CLIP
hose
1шт.
25
120517
CLIP
CLAMP, 11/16 inch C-Z closed
4шт.
26
395467R2
CLIP
hose
2шт.
120376
NUT,5/16"-18, G5
1шт.
180077
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
SCREW, 5/16-18 x 3/4 C-Z hex-hd cap
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
1шт.
27
395468R1
GROMMET, suction hose cab back
1шт.
28
395469R1
GROMMET, liquid hose cab roof
1шт.
29
395476R1
GUIDE, compressor belt
1шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
18692R1
CARRIAGE BOLT,Sq Nk, 3/8"-16 x 6", Gr 2
BOLT, 3/8-16 x 6 C-Z sq-nk crg
1шт.
18508R1
CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd
BOLT, 3/8-16 x 3/4 C-Z sq-nk crg
2шт.
30
395472R1
CABLE ASSY, compressor clutch control
1шт.
31
362121R1
CLIP
evaporator cable harness
2шт.
441201
SCREW, 12-14 x 1/2 C-Z slt-pan-hd tapping
2шт.
32
395417R3
HOSE, suction, composed of (1) coupling 154701C91, (1) hose 399422R2, (1) valve 302812C91
1шт.
33
399422R2
HOSE AND FITTING ASSY, 5/8 male, 5/8 female
1шт.
34
154701C91
COUPLING, 5/8 female
1шт.
35
302812C91
VALVE
ASSY
1шт.
36
395416R3
HOSE
ASSY, discharge, composed of (1) coupling 154699C91, (1) hose 399423R2, (1) valve 302811C91
1шт.
37
399423R2
HOSE AND FITTING ASSY, 1/2 male, 1/2 female
1шт.
38
154699C91
COUPLING, 1/2 female
1шт.
39
302811C91
VALVE
ASSY
1шт.
652382R91
CLAMP, hose, hydrostatic tractors
1шт.
400172R1
CLIP, hydraulic tubing, hydrostatic tractors
1шт.
88542
BOLT,Hex, 1/4"-20 x 1/2", Gr 5
SCREW, 1/4-20 x 1/2 C-Z hex-hd cap
1шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
1шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
244568R1
FLUID
REFRIGERANT, freon 12 - 15 oz cans
1шт.
Выбрано товаров: 104
