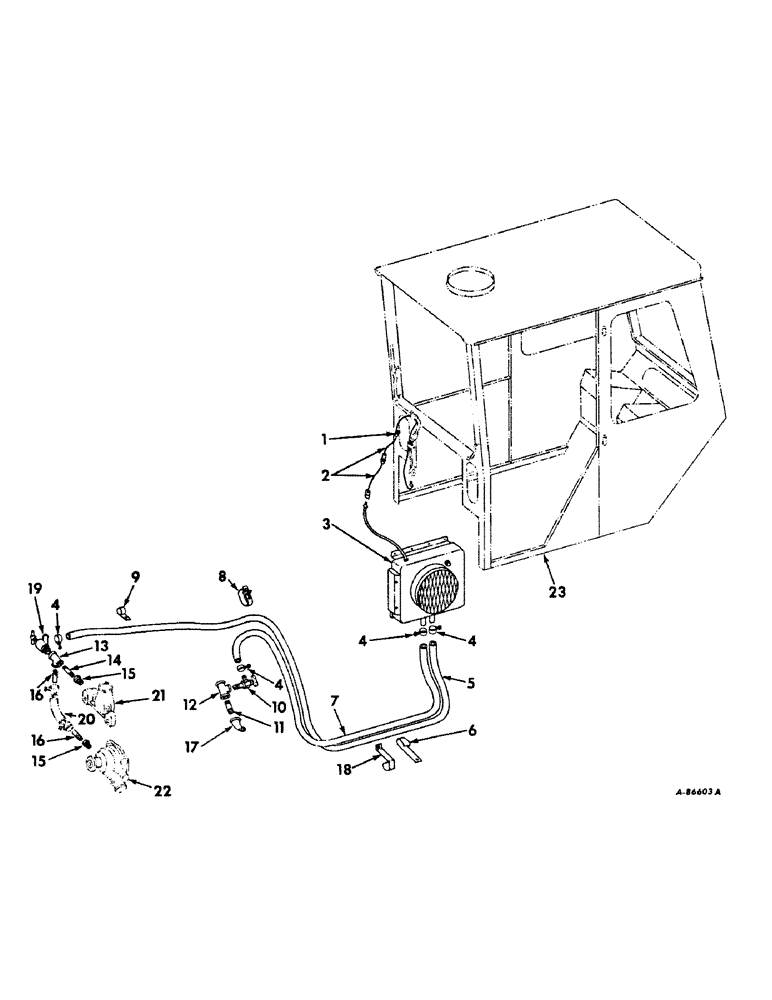

Запчасти Case IH 656 (N-13) - PARTS ACCESSORIES & ATTACHMENTS, TRACTOR CAB HEATER & CONNECTIONS, FARMALL DIESEL ENGINE TRACTORS Accessories & Attachments

ATTACHMENT, tractor cab heater, 394268R91

1шт.

1

263515R91

CLIP,ELECTRICAL

CLIP, heater power supply cable

1шт.

221154

SCREW, 14-10 x 1/2 C-Z slt-pan-hd tap.

1шт.

2

391173R91

CABLE ASSY, heater power supply

1шт.

117142

FUSE,10 Amp, Type 3AG

cartridge type AGC 10

1шт.

3

391172R91

HEATER ASSY, tractor cab, for components see list of parts under details of tractor cab heater

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

1/4-20 x 1/2 C-Z slt-truss-hd mach

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

4

39093H

HOSE CLAMP

CLAMP, heater hose end

4шт.

5

HOSE, heater inlet, use 60 in. of 5/8 ID heater hose from a 50 ft. roll marked, 364359C1

1шт.

6

391179R3

CLIP, heater outlet hose

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd cap

1шт.

7

HOSE, heater outlet, use 85 in. of 5/8 ID heater hose from a 50 ft. roll marked, 364359C1

1шт.

8

652382R91

CLAMP, heater hose

1шт.

9

391180R1

CLIP

heater hose

1шт.

10

301803R91

VALVE

ASSY, shut-off

1шт.

11

121208

PIPE,Nipple, 1/2" NPT x 1 1/8"

NIPPLE, 1/2 x 1-1/8 pipe

1шт.

12

143166

DECAL KIT

TEE, 1/2 x 1/2 x 3/8 reducing pipe

1шт.

13

218243

TEE, 3/8 x 3/8 x 1/2 reducing pipe

1шт.

14

121207

PIPE,Nipple, 3/8" NPT x 1"

NIPPLE, 3/8 x 1 pipe

1шт.

15

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING, 1/2 x 3/8 reducing pipe

3шт.

16

391178R1

FITTING, heater outlet hose

2шт.

17

137894

ELBOW,45 Degree, 1/2" NPT Street

1/2 45 deg street

1шт.

18

394271R1

CLIP

heater hoses, offset

1шт.

19

301803R91

VALVE

ASSY, shut-off

1шт.

20

WATER PUMP, by-pass hose, refer to fan thermostat and water pump listing, section D

1шт.

21

THERMOSTAT HOUSING, refer to fan thermostat and water pump listing, section D

1шт.

22

WATER PUMP, refer to fan thermostat and water pump listing, section D

1шт.

23

CAB, refer to tractor cab and connections listing

1шт.
