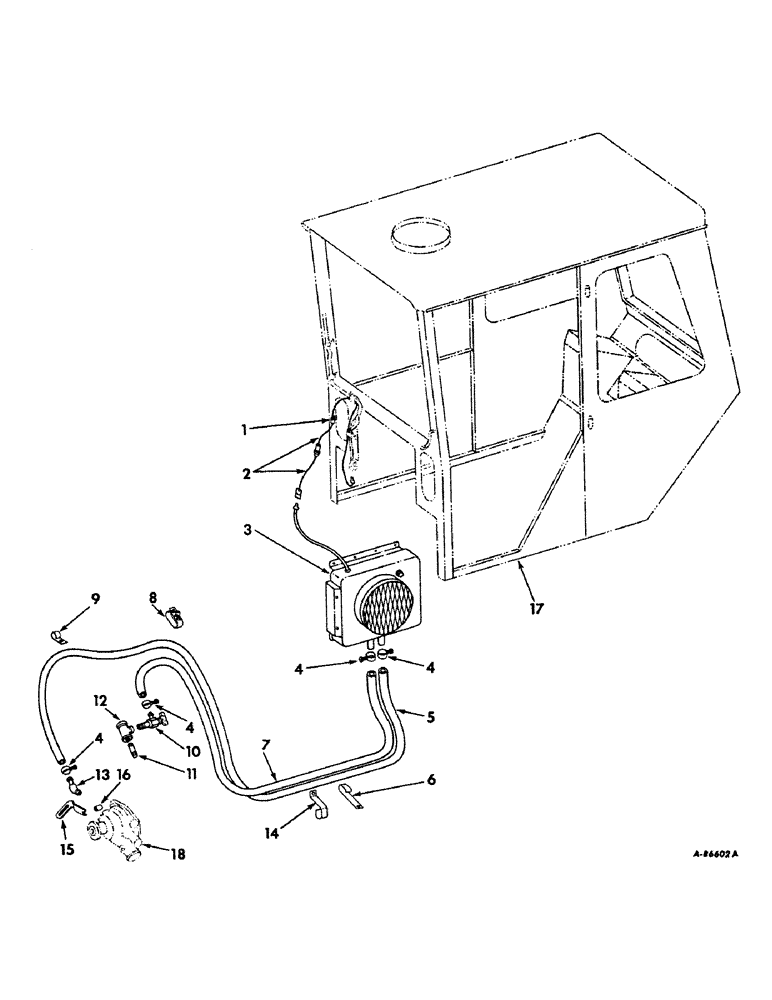

Запчасти Case IH 656 (N-11) - PARTS ACCESSORIES & ATTACHMENTS, TRACTOR CAB HEATER & CONNECTIONS, FARMALL GASOLINE ENGINE TRACTORS Accessories & Attachments

ATTACHMENT, tractor cab heater, 394267R91

1шт.

1

263515R91

CLIP,ELECTRICAL

CLIP, heater power supply cable

1шт.

221154

SCREW, 14-10 x 1/2 C-Z slt-pan-hd tap.

1шт.

2

391173R91

CABLE ASSY, heater power supply

1шт.

117142

FUSE,10 Amp, Type 3AG

cartridge type AGC 10

1шт.

3

391172R91

HEATER ASSY, tractor cab, for components see list of parts under details of tractor cab heater

1шт.

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

1/4-20 x 1/2 C-Z slt-truss-hd mach

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

4

39093H

HOSE CLAMP

CLAMP, heater hose end

4шт.

5

HOSE, heater inlet, use 50 in. of 5/8 ID heater hose from a 50 ft. roll marked, 364359C1

1шт.

6

391179R3

CLIP, heater outlet hose

1шт.

7

HOSE, heater outlet, use 94 in. of 5/8 ID heater hose from a 50 ft. roll marked, 364359C1

1шт.

8

204412R1

CLIP,ELECTRICAL

CLIP, heater hose

1шт.

9

120530

CLIP

CLAMP, heater hose closed C-Z

1шт.

109084

NUT,1/4"-20, G5

1шт.

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

1/4-20 x 1-1/2 C-Z slt-truss-hd mach

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

10

301803R91

VALVE

ASSY, shut-off

1шт.

11

121664

NIPPLE, 1/2 x 2-1/2 pipe Nipple, 1/2" NPT x 2 1/2"

1шт.

12

143166

DECAL KIT

TEE, 1/2 x 1/2 x 3/8 reducing pipe

1шт.

13

278089R1

FITTING

ELBOW, heater outer hose 45 deg

1шт.

14

394271R1

CLIP

heater hoses, offset

1шт.

15

371107R2

SUPPORT

BRACE, alternator generator

1шт.

16

371108R1

SPACER,3/8" Pipe x .844"

alternator generator brace

1шт.

186283

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

SCREW, 3/8-16 x 3-1/2 hex-hd cap

1шт.

17

CAB, refer to tractor cab and connections listing

1шт.

18

WATER PUMP, refer to fan thermostat and water pump listing, section C

1шт.
