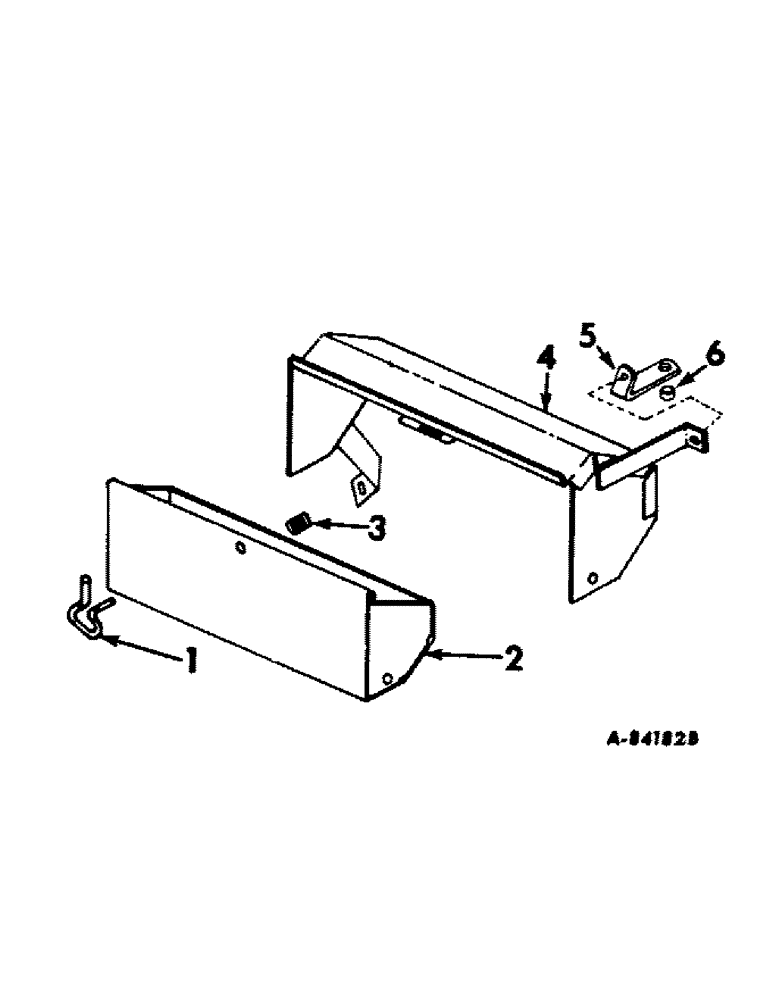

Запчасти Case IH 656 (M-6[A]) - SEAT, OPERATORS PLATFORM AND MISCELLANEOUS, TOOL BOX (10) - OPERATORS PLATFORM

388923R91

TOOL BOX ASSY, Farmall tractors, includes ref. nos 1 thru 4

1шт.

388923R91

TOOL BOX ASSY, International tractors, includes ref. nos 1 thru 4, Serial Range: -13200

1шт.

180080

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5, Full Thd

SCREW, 5/16-18 x 1-1/8 znd hex-hd cap

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW, 1/4-20 x 1/2 hex-hd znd hex-hd cap

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .065 C-Z

1шт.

530632R91

TOOL BOX ASSY, International tractors, includes ref. nos 1 thru 4, Start Serial: 13201

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16 x 3/4 znd hex-hd cap

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

1

383114R1

HANDLE

tool box

1шт.

114856

PIN, 3/64 x 1/2 cotter

1шт.

103338

WASHER,#10

7/32 x 1/2 x 16 ga

1шт.

2

383110R11

DRAWER ASSY, tool box

1шт.

113354

RIVET

3/16 x 1/4 ov-hd tubular

2шт.

3

27452D

VALVE SPRING

SPRING, tool box handle

1шт.

4

388924R91

COVER ASSY, tool box, Farmall tractors

1шт.

4

388924R91

COVER ASSY, tool box, International tractors, Serial Range: -13200

1шт.

4

530633R1

COVER ASSY, tool box, International tractors, Start Serial: 13201

1шт.

5

403388R1

BRACKET, tool box, International tractors with hydrostatic drive, Serial Range: -13200

1шт.

179864

BOLT,Hex, 7/16" - 14 x 1 3/4", Gr 5

SCREW, 7/16-14 x 1-3/4 hex-hd cap

1шт.

5

400504R2

BRACKET, tool box, International, gear drive tractors, Serial Range: -13200

1шт.

179857

BOLT,Hex, 7/16" - 14 x 7/8", Gr 5

SCREW, 7/16-14 x 7/8 hex-hd cap

1шт.

6

359105R1

SPACER,3/8" X-Strng Pipe x 1/2"

bracket tool box mounting, International tractors, Serial Range: -13200

1шт.
