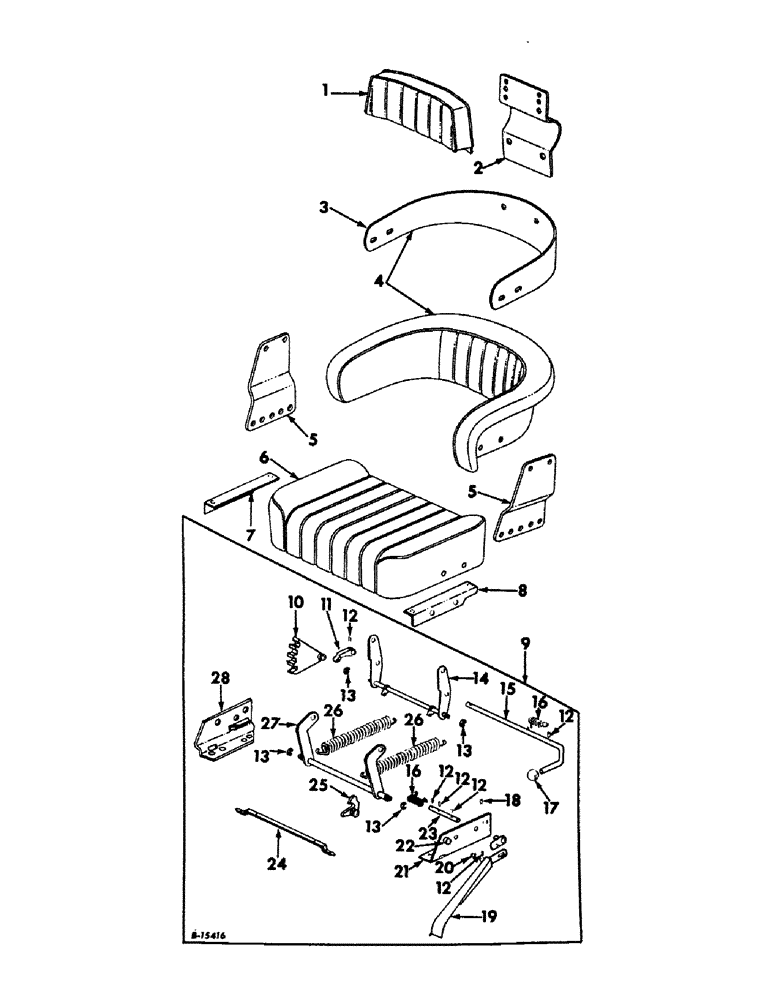

Запчасти Case IH 656 (M-2) - SEAT, OPERATORS PLATFORM AND MISCELLANEOUS, SEAT, FARMALL TRACTORS (10) - OPERATORS PLATFORM

1

387177R92

CUSHION ASSY.

CUSHION ASSY, upper back

1шт.

2

387178R1

SUPPORT

upper back cushion

1шт.

21533R1

BOLT

SCREW, 5/16-18 x 5/8 cd-pltd hex-hd cap

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C-Z hex-hd cap

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

3

387175R1

LARGE PLATE

PLATE, cover

1шт.

161857

SHAFT

8-15 x 3/8 cr-rec pan-hd type A tapping

3шт.

4

387174R92

CUSHION ASSY.

CUSHION ASSY, back

1шт.

5

387176R1

SUPPORT

back cushion

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C-Z hex-hd cap

4шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 C-Z hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

6

380680R94

CUSHION

ASSY, seat

1шт.

7

404225R1

ANGLE ASSY, RH support

1шт.

21534R1

BOLT,Hex, 5/16" - 18 x 1"

5/16-18 x 1 hex-hd cap

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

8

404224R1

ANGLE ASSY, LH support

1шт.

21534R1

BOLT,Hex, 5/16" - 18 x 1"

5/16-18 x 1 hex-hd cap

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9

397367R92

BASE

ASSY, adjustable seat, hydrostatic drive tractors

1шт.

9

388315R91

BASE ASSY, adjustable seat, gear drive tractors

1шт.

379273R1

BOLT,Hex, 1/2" - 13 x 1.28"

BOLT, 1/2-13 x 9/32 shoulder

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

427586

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 8

SCREW, 5/16-18 x 1-1/4 C-Z type 4 hex-hd cap

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

10

380697R2

SECTOR

gear

1шт.

11

380702R1

PAWL

upper

1шт.

12

443148

GROOVED PIN,3/16" x 1", Type E

Pin, Grooved, 3/16" x 1", Type E

6шт.

13

373523R1

SNAP RING,#62, .480" Dia, E-Type

Ring, Retaining, #62, .480" Dia, E-Type

4шт.

14

383294R1

LEVER, rear

1шт.

15

400403R1

ROD

upper pawl release, hydrostatic drive tractors

1шт.

15

380701R1

ROD, upper pawl release, gear drive tractors

1шт.

16

380699R1

SPRING

torsion

2шт.

17

206286R1

KNOB

plastic

1шт.

18

142488

GROOVED PIN,1/8" x 1", Type A

Pin, Grooved, 1/8" x 1", Type A

1шт.

19

388318R91

RELEASE ASSY, foot

1шт.

120388

7/16 x 1 x .083 C-Z

1шт.

20

380704R1

WASHER, spring valve

1шт.

21

388316R91

SUPPORT

ASSY, LH side

1шт.

22

384780R1

BEARING

LH side support

1шт.

23

380698R2

SHAFT

lower pawl

1шт.

24

388319R1

STRAP, main spring mounting

1шт.

25

380700R1

PAWL

lower

1шт.

26

383296R1

VALVE SPRING

SPRING, linkage main

2шт.

27

380694R1

LEVER

front

1шт.

28

388317R91

SUPPORT ASSY, RH side

1шт.
