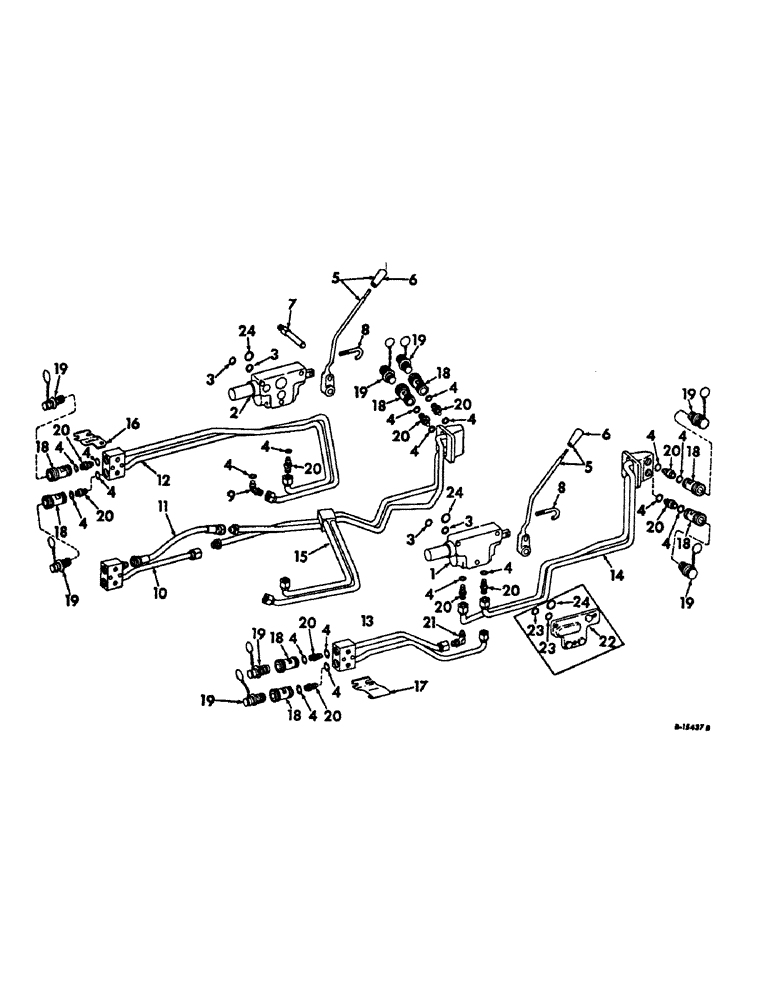

Запчасти Case IH 656 (F-40) - HYDRAULICS, AUXILIARY HYDRAULIC VALVES AND TUBES, FARMALL TRACTORS WITH SERIAL NO. 41971 AND BELOW (07) - HYDRAULIC SYSTEM

Service parts for single auxiliary valve with LH rear manifold tubes, consists of all unmarked parts and those marked unit A

1шт.

Service parts for single auxiliary valve with LH front and rear manifold tubes, consists of all unmarked parts and those marked unit B

1шт.

Service parts for double auxiliary valve with LH front, RH front and LH rear manifold tubes, consists of all unmarked parts and those marked unit C

1шт.

Service parts for double auxiliary valves with LH front, LH rear and RH rear manifold tubes, consists of all unmarked parts and those marked unit D

1шт.

Service parts for double auxiliary valves with LH rear and RH rear manifold tubes, consists of all unmarked parts and those marked unit E

1шт.

389700R92

SET OF PARTS

PARTS ACCESSORY, second auxiliary valve with RH rear manifold, for tractors equipped with single auxiliary valve with LH rear manifold or LH front and rear manifold tubes, consists of all unmarked parts and those marked unit F

1шт.

Service parts for LH front and LH rear manifold tubes, for tractors equipped with single auxiliary valve and LH rear manifold tubes or with double auxiliary valves and LH & RH rear manifold tubes, consists of all unmarked parts and those marked unit G

1шт.

Service parts for second auxiliary valve with RH front manifold tubes, for tractors equipped with single auxiliary valve with LH rear manifold tubes or LH front and rear manifold tubes, consists of all unmarked parts and those marked unit H

1шт.

1

383267R94

VALVE

ASSY, hydraulic control, inner position, units C, D, E, F and H, for components see list of parts under details of hydraulic control valve

1шт.

REF: #1 THIS IS 1ST VALVE 21-MAY-96

1шт.

20846R1

BOLT,Hex, 3/8" - 16 x 4 5/8", Gr 8

SCREW, 3/8-16 x 4-5/8 hex-hd cap

3шт.

2

390826R94

VALVE

ASSY, hydraulic control, outer position, units A, B, C, D and E, for components see list of parts under details of hydraulic control valve, serial no. 13669 and above

1шт.

REF: #2 THIS IS 2ND VALVE 1-MAY-96

1шт.

631994R1

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 8

SCREW, 3/8-16 x 2-1/2 hex-hd cap, 3 for units A and B

1шт.

20846R1

BOLT,Hex, 3/8" - 16 x 4 5/8", Gr 8

SCREW, 3/8-16 x 4-5/8 hex-hd cap, 3 for units C, D and E

1шт.

3

381884R1

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

1 x 1-3/16 x 3/32, 2 used units A, B, F and H, 4 used units C, D and E

1шт.

4

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1-3/4 x 15/16 x 3/32, 6 used for units A and F, 7 used for unit H, 10 used for units B and G, 14 used for unit E, 16 used for units C and D

1шт.

5

391182R11

LEVER

ASSY, hyd open center valve actuating, units A, B, F and H

1шт.

33558V

CLEVIS PIN,1/2" x 1.906"

PIN, 1/2 x 1-29/32 rod end

1шт.

108630

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

1шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32 x 1-1/16 x .095

1шт.

5

391182R11

LEVER

ASSY, hyd open center valve actuating, 2 used units C, D & E

1шт.

33558V

CLEVIS PIN,1/2" x 1.906"

PIN, 1/2 x 1-29/32 rod end

2шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32 x 1-1/16 x .095

2шт.

108630

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

2шт.

6

388634R1

GRIP

lever handle, units A, B, F & H, 2 used units C, D and E

1шт.

7

378045R1

STUD

SHAFT, open center valve actuating, units A, B, C, D and E

1шт.

8

390013R1

SCREW

ROD, valve float lockout, units A, B, F and H, 2 used units C, D and E

1шт.

114502

JAM NUT,Jam, 5/16"-18, G5

Units A, B, F and H, 2 used units C, D and E Jam, 5/16"-18, G5

1шт.

9

9411106

ELBOW

7/8-14 C-Z 37 deg hyd flared tube adj str thd 45 deg, units A, B, C, D, E and G

1шт.

10

389713R91

MANIFOLD ASSY, hyd LH rear, units B, C, D and G

1шт.

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, Junction block plug

2шт.

9410356

PLUG

junction block

2шт.

11

381170R91

HOSE

ASSY, LH rear manifold upper, units B, C, D and G

1шт.

12

389718R91

MANIFOLD ASSY, LH rear to first valve, units A and E

1шт.

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, Junction block plug

2шт.

9410356

PLUG

junction block

2шт.

13

389721R91

MANIFOLD

ASSY, RH rear to second valve, unit D, E and F

1шт.

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, Junction block plug

2шт.

9410356

PLUG

junction block 2

1шт.

14

389724R91

MANIFOLD ASSY, front right upper, units C and H

1шт.

179836

SCREW,Hex, 3/8" - 16 x 11/16"

3/8-16 x 11/16 hex-hd cap

2шт.

15

389703R91

MANIFOLD ASSY, LH front & rear junction, units B, C, D and G

1шт.

179836

SCREW,Hex, 3/8" - 16 x 11/16"

3/8-16 x 11/16 hex-hd cap

2шт.

16

389716R1

SUPPORT

BRACKET, LH rear manifold junction block, units A, B, C, D, E and G

1шт.

103026

NUT,3/8"-24, G5

2шт.

181380

BOLT,Hex, 3/8" - 24 x 2 1/4", Gr 5

SCREW, 3/8-24 x 2-1/4 hex-hd cap

2шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .051) 3/8"

2шт.

17

389717R1

SUPPORT

BRACKET, RH rear manifold junction block, units D, E, F and G

1шт.

103026

NUT,3/8"-24, G5

2шт.

181380

BOLT,Hex, 3/8" - 24 x 2 1/4", Gr 5

SCREW, 3/8-24 x 2-1/4 hex-hd cap

2шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .051) 3/8"

2шт.

18

395150R91

COUPLING, QUICK, FEM

COUPLING ASSY, hydraulic self-sealing, 6 used units C, D and E, 4 used units B and G, 2 used units A, F and H

1шт.

REF: #18 395150R91 COUPLING ASSY - HYD. SELF SEALING REPLACED BY 1282338C91 FEMALE COUPLING - NOTE FOR MALE COUPLING THE P/N IS 1272399C2. 21-MAY-96

1шт.

19

401757R11

PLUG

ASSY, coupling dust

1шт.

401758R1

WASHER,14.48mm ID x 38.1mm OD x 3.05mm Thk

coupling dust plug, one per coupling

1шт.

20

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

UNION, 7/8-14 C-Z 37 deg hyd flared tube short swivel, 3 used units A and F, 4 used unit H, 5 used units B and G, 6 used unit E, 9 used units C and D

1шт.

21

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 C-Z 37 deg hyd flared tube adj str thd 90 deg, units D, E and F

1шт.

22

376023R3

COVER

valve outlet, for use with valve, 383267R91 only

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap control valve end cover

3шт.

23

381884R1

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

1 x 1-3/16 x 3/32, valve outlet cover

2шт.

24

381885R1

O-RING,0.103" Thk x 1.362" ID, -126, Cl 6, 90 Duro

1-3/8 x 1-3/16 x 3/32, units A, B, F and H, 2 for units C, D and E

1шт.

395149R1

QUICK MALE COUPLING

COUPLING ASSY, hyd self-sealing male, one per coupling

1шт.

393258R1

INSULATOR, hydraulic line, 1/2 in. x 2 in. square, units B, C, D and G

1шт.

393259R1

HOSE

INSULATOR, hydraulic line, 5/8 ID x 3/4 in. long, units A, B, C, D, E, G and H

1шт.
