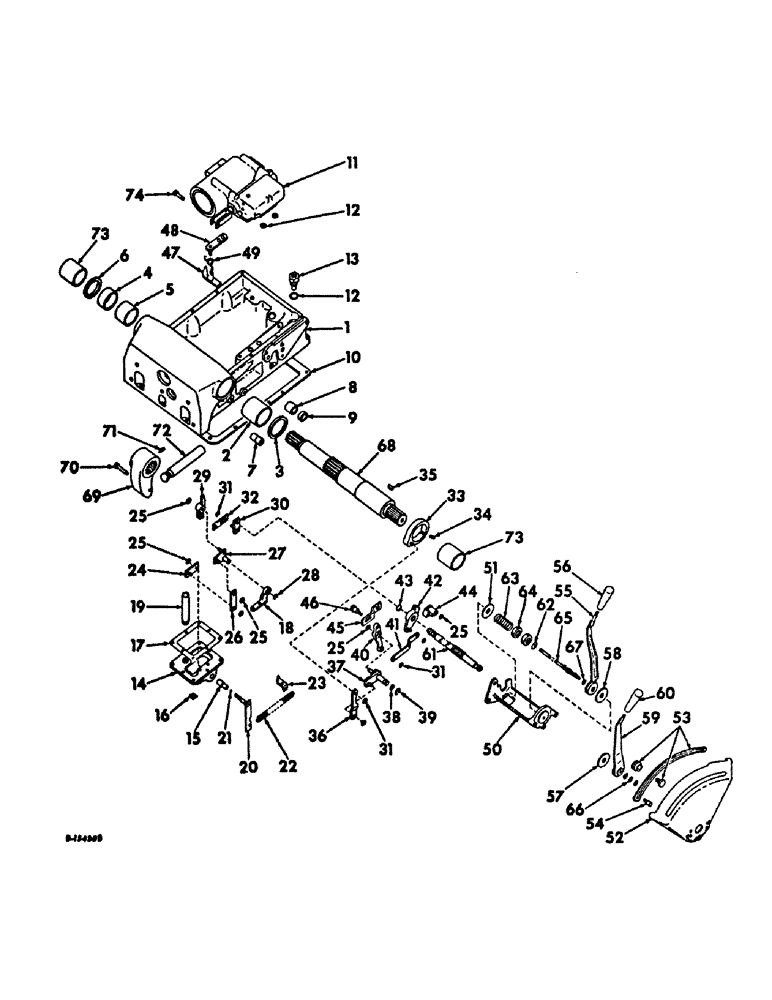

Запчасти Case IH 656 (F-25) - HYDRAULICS, HYDRAULIC DRAFT CONTROL, FARMALL TRACTORS WITH SERIAL NO. 44854 AND BELOW (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
1
389524R91
HOUSING ASSY, hyd draft control lift, consists of ref. nos. 2, 4, 5, 7 and 8
1шт.
172557
PLUG
1-3/16 expansion
1шт.
2
376009R1
BEARING LINER,2.32" ID x 2.438" OD x 2.6"
rockshaft RH
1шт.
3
376020R91
OIL SEAL
SEAL, rockshaft RH oil
1шт.
4
389525R1
BUSHING
rockshaft LH short, order bushing, 537118R1
1шт.
5
389526R1
BUSHING
rockshaft LH long, order bushing, 537118R1
1шт.
6
376019R91
PACKING RING
SEAL, rockshaft LH oil
1шт.
7
376010R1
BUSHING
eccentric shaft
1шт.
8
376011R11
BEARING ASSY
ASSY, quadrant handle shaft
1шт.
9
383133R91
SEAL
quadrant handle shaft oil
1шт.
10
375577R1
GASKET
hyd lift housing lower
1шт.
11
CYLINDER & VALVE ASSY, draft control, for components see list of parts under details of draft control cylinder & valve
1шт.
179840
BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5
SCREW, 3/8-16 x 1-1/8 hex-hd cap
2шт.
179887
CABLE
SCREW, 1/2-13 x 1-3/4 hex-hd cap
1шт.
179894
BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5
1шт.
179895
BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5
SCREW, 1/2-13 x 3-1/2 hex-hd cap
1шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
395-11053
WASHER,0.53" ID x 1.06" OD x 0.1" Thk
17/32 x 1-1/16 x .074
1шт.
12
380839R1
O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro
7/8 x 1-1/16 x 3/32
3шт.
13
389594R91
VALVE
ASSY, poppet relief
1шт.
14
389608R11
HOUSING ASSY, draft sensing pickup arm
1шт.
179817
BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd
8шт.
15
389609R1
BUSHING, draft sensing pickup arm
1шт.
17
376983R1
GASKET
unit housing cover
1шт.
18
389610R2
BRACKET
eccentric
1шт.
NLS
NO LONGER SERVICED
2шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
19
389611R1
PIPE, oil overflow
1шт.
20
389612R11
ARM
ASSY, draft sensing pickup
1шт.
21
359158R1
O-RING,0.301" ID x 0.07" Width
-011, 70 Duro, .031" ID x .070" Thk, Draft sensing pickup arm
1шт.
22
394240R2
SPRING
draft control operating
1шт.
23
390802R1
ANCHOR, draft control operating spring
1шт.
24
389616R11
LEVER ASSY, draft sensing pickup arm
1шт.
25
110668R1
CIRCLIP,#37, .300" Dia, E-Type
Ring, Retaining, #37, .300" Dia, E-Type
6шт.
26
389618R1
BAR
eccentric to draft sensign pickup link
1шт.
27
389619R11
BAR
PLATE ASSY, draft sensing eccentric
1шт.
28
204502R1
SNAP RING,#43, Ext
Eccentric shaft #43, Ext
1шт.
29
389620R21
LEVER
ASSY, draft control trigger
1шт.
30
389622R11
LEVER
ASSY, draft sensitivity control
1шт.
364577R1
PIN,5/32" x 3/4", Coiled
1шт.
31
104977R1
SNAP RING,#X31, .243" Dia, E-Type
RING, RETAINING, , Link to lever #X31, .243" Dia, E-Type
5шт.
32
389621R1
BAR, Serial Range: trigger-quadrant
1шт.
33
376031R11
HUB
ASSY, rockshaft actuating
1шт.
34
377792R1
SET SCREW
SCREW, rockshaft hub set
1шт.
35
376057R1
BUCKET TOOTH KEY
KEY, rockshaft actuating hub
1шт.
36
376033R1
BRACKET
LINK, position control walking
1шт.
37
389623R91
ECCENTRIC
ASSY, position control
1шт.
38
355967R1
O-RING,0.364" ID x 0.003" Width
3/8 x 1/2 x 1/16, eccentric shaft
1шт.
39
971043R1
SNAP RING,#50, Ext
Eccentric shaft #50, Ext
1шт.
40
376038R11
BEAM
ASSY, walking follow-up
1шт.
41
376042R2
SUPPORT
LINK, walking, Serial Range: beam-quadrant
1шт.
42
376043R21
LEVER
ASSY, slow motion actuating
1шт.
102435
PIVOT
SCREW, 1/4-20 x 1-1/4 sq-hd ov-pt set
1шт.
43
269181R1
SNAP RING,#75, Ext
Ring, Snap, , actuating lever to shaft #75, Ext
1шт.
44
376044R11
ARM
ASSY, draft retarding
1шт.
45
376984R1
SUPPORT
LINK, walking, Serial Range: beam-valve
1шт.
46
376041R1
SCREW,Shldr, Hex, 1/4" - 20 x 0.70", W/ Nylon Pellet
Shoulder
1шт.
47
391244R11
LEVER
ASSY, hydraulic switch
1шт.
48
402448R1
BAR
ASSY, hydraulic switch, draft sensing
1шт.
103384
COTTER PIN,1/8" x 3/4"
Pin, Split (Cotter), 1/8" x 3/4"
1шт.
49
390824R1
SPRING
hyd switch return
1шт.
50
378063R11
SUPPORT ASSY.
SUPPORT ASSY, quadrant
1шт.
179840
BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5
SCREW, 3/8-16 x 1-1/8 hex-hd cap
3шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
3шт.
51
575813R1
WASHER
25/32 x 1-1/4 x 11 ga
1шт.
52
376985R2
SECTOR
QUADRANT, control
1шт.
379655R1
SCREW
shoulder
1шт.
NLS
NO LONGER SERVICED
SCREW, 1/4-20 x 7/8 hex-hd cap
2шт.
53
378619R11
GUIDE
ASSY, touch control handle
1шт.
88542
BOLT,Hex, 1/4"-20 x 1/2", Gr 5
SCREW, 1/4-20 x 1/2 hex-hd cap
2шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
54
378620R1
STOP
quadrant lever
1шт.
144417H
NUT,1/4"-28, GB
1/4-28 ESNA stop
1шт.
55
390848R91
HANDLE
ASSY, position control
1шт.
56
389627R1
GRIP
position control handle
1шт.
57
376056R1
DISC
position control handle friction
1шт.
58
380421R1
FRICTION WASHER
DISC, sensitivity control handle friction
1шт.
59
376957R11
HANDLE
ASSY, draft sensitivity control
1шт.
60
389627R1
GRIP
draft sensitivity control
1шт.
61
376060R11
SHAFT,0.379" Diameter
TUBE ASSY, position control lever shaft
1шт.
62
378066R1
SNAP RING,#X74, .616" Dia, E-Type
Ring, Retaining, #X74, .616" Dia, E-Type
1шт.
63
378067R1
SPRING
position control lever friction
1шт.
64
376063R1
NUT
position control lever spring
2шт.
65
379061R12
SHAFT
ASSY, draft sensitivity control
1шт.
114503
JAM NUT,Jam, 3/8"-16, G5
2шт.
66
376066R1
BELLEVILLE WASHER
Belleville
3шт.
67
355967R1
O-RING,0.364" ID x 0.003" Width
3/8 x 1/2 x 1/16, draft sensitivity control shaft
1шт.
68
389971R1
ROCKSHAFT, hyd draft control
1шт.
M22352
WASHER, rockshaft arm retainer
2шт.
103325
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
69
389628R1
LEVER
rockshaft bellcrank
1шт.
70
389280R1
PIN
bellcrank connecting rod
1шт.
16558R1
WASHER
17/64 x 5/8 x .049
1шт.
103384
COTTER PIN,1/8" x 3/4"
Pin, Split (Cotter), 1/8" x 3/4"
1шт.
71
376069R1
SET SCREW
SCREW, rockshaft bellcrank set
1шт.
72
389629R1
ROD, hyd draft control piston
1шт.
73
389972R1
SHIELD
rockshaft spline
2шт.
74
130368H
PIN
1/4 x 1-11/16 rod end
1шт.
NLS
NO LONGER SERVICED
PIN, 1/16 x 1/2 cot.
1шт.
16558R1
WASHER
17/64 x 5/8 x 18 ga
1шт.
Выбрано товаров: 106
