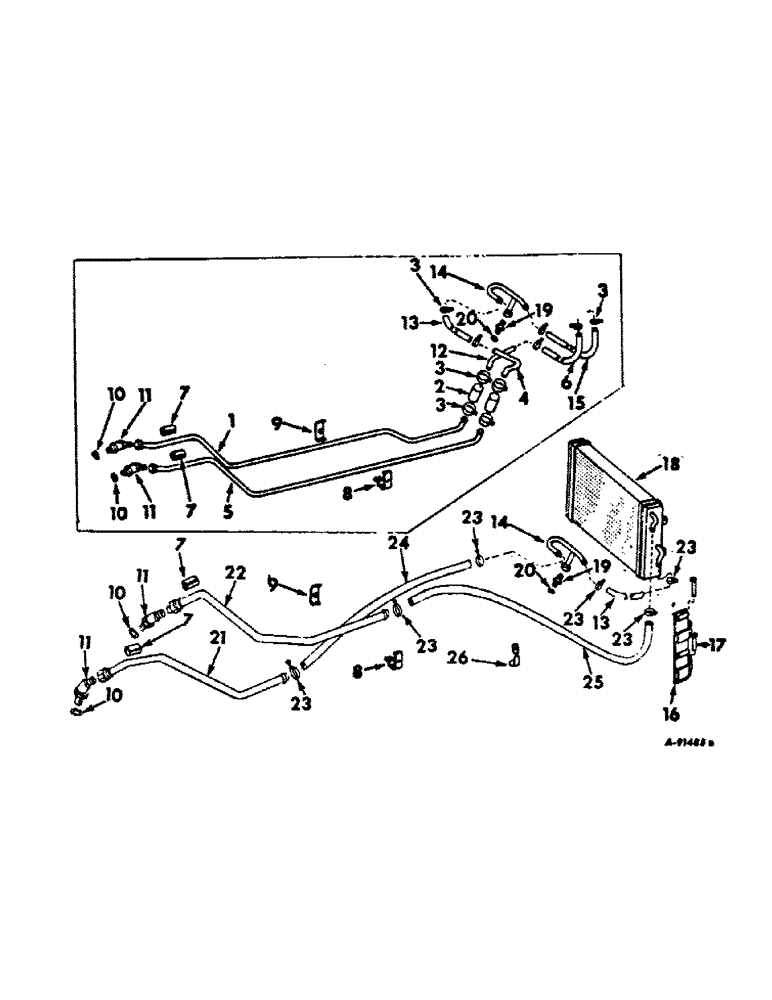

Запчасти Case IH 656 (F-15) - HYDRAULICS, OIL COOLER AND CONNECTIONS, FARMALL HYDROSTATIC DRIVE TRACTORS (07) - HYDRAULIC SYSTEM

1

397481R1

TUBE ASSY, multi valve to oil cooler, Serial Range: -46202

1шт.

2

397484R1

HOSE ASSY.

HOSE, oil cooler, Serial Range: -46202

2шт.

3

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP, cooler supply hose, Serial Range: -46202

10шт.

4

400166R1

TUBE, return elbow, serial no, Serial Range: -46202

1шт.

5

397486R1

TUBE, oil cooler return, Serial Range: -46202

1шт.

6

397485R1

HOSE, oil cooler supply, Serial Range: -46202

1шт.

7

397483R1

GROMMET

HOSE, oil cooler line bumper

2шт.

8

397488R1

BRACKET, oil cooler tubes front

1шт.

9

397489R1

SUPPORT ASSY, oil cooler tubes front

1шт.

526712R1

BUSHING

SPACER, pipe

1шт.

2466F

SPACER, cooler tube bracket

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

SCREW, 1/4-20 x 3/4 hex-hd

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

10

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

7/8 x 1-1/16 x 3/32, multi valve elbow

2шт.

11

9411106

ELBOW

7/8-14 C-Z 37 deg hyd flared tube adj str thd 45 deg, multi valve

2шт.

12

400167R1

TUBE, supply elbow, Serial Range: -46202

1шт.

13

397492R1

HOSE, oil cooler return junction

1шт.

14

396878R1

PIPE ASSY, oil cooler return front

1шт.

15

397493R2

HYDRAULIC HOSE,0.63" ID x 17.00"

HOSE, cooler return, Serial Range: -46202

1шт.

16

399568R1

HINGE ASSY, oil cooler

1шт.

179850

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

SCREW, 3/8-16 x 2-3/4 hex-hd cap

2шт.

324235R1

12 PT SCREW,Flg, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 12 PT

1шт.

399572R1

WASHER, retaining bracket

1шт.

17

Q3533

HEADED PIN,5/16" x 3"

PIN, 5/16 x 3 headed pin

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

18

397111R1

COOLER ASSY, oil

1шт.

19

382449R1

CONNECTOR, ELEC

CONNECTOR, overflow tube

1шт.

20

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

21

536495R1

TUBE ASSY, oil cooler return, Start Serial: 46203

1шт.

22

536494R1

TUBE ASSY, oil cooler supply, Start Serial: 46203

1шт.

23

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP, oil cooler hose, Start Serial: 46203

6шт.

24

536497R1

HOSE, oil cooler return, Start Serial: 46203

1шт.

25

536496R1

HOSE, oil cooler supply, Start Serial: 46203

1шт.

26

536498R1

CLAMP, oil cooler hose, gasoline engine tractors, Start Serial: 46203

1шт.

26

536499R1

CLAMP, oil cooler hose, diesel engine tractors, Start Serial: 46203

1шт.
