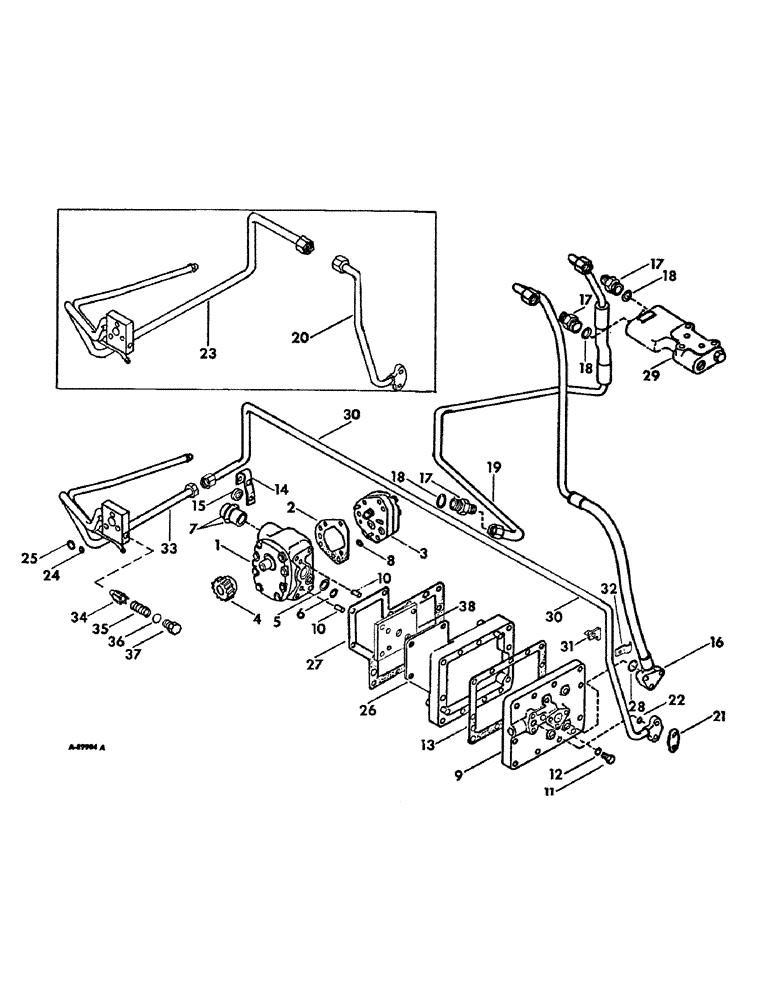

Запчасти Case IH 656 (F-04) - HYDRAULICS, HYDRAULIC POWER SUPPLY, FARMALL HYDROSTATIC DRIVE TRACTORS (07) - HYDRAULIC SYSTEM

1

70935C91

PUMP, HYDRAULIC

PUMP ASSY, hydraulic gear, 17 GPM, will work for 370880R94, Thompson, for components see list of parts under details of hydraulic pump, gasoline engine tractors, optional with 373966R94 (Replaces 527755R91)

1шт.

1

1949292C1

REMAN-HYD PUMP

656 FARMALL TRACTOR, PUMP ASSY (1/66-12/73)

1шт.

1

1949293C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

373966R94

HYDRAULIC PUMP

PUMP ASSY, hydraulic gear, 17 GPM, Cessna, for components see list of parts under details of hydraulic pump, gasoline engine tractors, optional with 527755R91

1шт.

1

1949292C1

REMAN-HYD PUMP

Remanufactured PUMP

1шт.

1

1949293C1

CORE-HYDRAULIC PUMP

Return No, PUMP

1шт.

52999D

WASHER

GASKET, pump mounting screw

4шт.

179862

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 5

SCREW, 7/16-14 x 1-1/2 hex-hd cap

4шт.

2

371543R2

GASKET

hydraulic gear pump, tractors with draft control

1шт.

3

391351R93

HYDRAULIC PUMP

PUMP ASSY, hyd gear, 9 GPM, Cessna, for components see list of parts under details of hydraulic pump, optional with 395229R92, tractors with draft control

1шт.

3

1949290C1

REMAN-HYD PUMP

Reman For New PN 391351R93

1шт.

3

1949291C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

3

395229R92

PUMP

ASSY, hyd gear, 9 GPM, Thompson, for components see list of parts under details of hydraulic pump, optional with 391351R93, tractors with draft control

1шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

4шт.

4

396859R1

GEAR

pump drive, 25 teeth, all tractors except those with 1000 RPM independent PTO

1шт.

4

399533R1

GEAR, pump 28 T, tractors w/1000 RPM independent PTO

1шт.

4

405206R1

GEAR, pump drive, 21 teeth, unit C

1шт.

4

391305R1

GEAR, pump drive, 18 teeth, replaces 382902R1

1шт.

19263R1

LOCK NUT,Hex, 5/8" - 18

NUT, 5/8-18 ESNA stop

1шт.

5

254691R1

O-RING,-211, 70 Duro, .796" ID x .139" Thk

13/16 x 1-1/16 x 1/8, pump pressure port large

1шт.

6

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 x 3/4 x 3/32, pump pressure port small

1шт.

7

396621R2

BUSHING

TUBE ASSY, pump suction, unit A

1шт.

7

396860R11

BUSHING,28.5mm ID x 31.8mm OD x 50.8mm L

TUBE ASSY, pump suction, unit B

1шт.

7

405207R11

TUBE ASSY, pump suction, unit C

1шт.

8

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

9/16 x 11/16 x 1/16

1шт.

9

405746R1

FLANGE ASSY, pump mounting, unit A

1шт.

9

396866R21

FLANGE

ASSY, pump mounting, unit B

1шт.

9

405204R1

FLANGE ASSY, pump mounting, unit C

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

1шт.

186282

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

SCREW, 3/8-16 X 3-1/4 hex-hd cap

10шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

11шт.

10

384116R1

PIN

pump mounting flange dowel

2шт.

11

9410358

PLUG

9/16-18 str thd-o-ring boss

1шт.

12

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.

13

396867R1

GASKET

pump mtg flange, light

1шт.

13

396868R1

GASKET

pump mtg flange, heavy

1шт.

14

401116R1

BRACKET

ASSY, supply tube mtg

1шт.

22055R1

SPACER,1/4" Pipe x .594"

19/32 x 1/4 std pipe

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

1шт.

15

33530H

SPACER, supply tube bracket mtg

1шт.

16

396874R1

HOSE ASSY.

HOSE ASSY, pump pressure

1шт.

179824

BOLT,Hex, 5/16" - 18 x 1 3/4", Gr 5

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

17

9410205

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

UNION, 1-1/16-12 C-Z 37 deg hyd flared tube short swivel

2шт.

18

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube

3шт.

19

396875R1

HOSE

PIPE & HOSE ASSY, open center valve

1шт.

20

399476R1

TUBE ASSY, draft control supply short, Serial Range: -31312

1шт.

179823

BOLT,Hex, 5/16" - 18 x 1 5/8", Gr 5

2шт.

21

378276R1

COVER

draft control pressure port

1шт.

179815

BOLT,Hex, 5/16" - 18 x 11/16", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

22

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 x 3/4 x 3/32

1шт.

23

399473R1

MANIFOLD

ASSY, hyd housing power supply, tractors with draft control, for service replacement order manifold, 401791R1 and hose, 401792R1

1шт.

23

401791R1

MANIFOLD

ASSY, hydraulic housing power supply, tractors w/draft control, Serial Range: -31312

1шт.

24

355965R1

O-RING,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro

15/16 x 1-3/16 x 1/8, manifold assy, small

1шт.

25

356005R1

O-RING,1.109" ID x 0.139" Width

1-1/8 x 1-3/8 x 1/8, manifold assy, large

1шт.

26

396869R11

ADAPTER ASSY, pump mounting flange, unit B

1шт.

384116R1

PIN

pump mtg flange adapter dowel

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

20556R1

DOWEL,1/2" x 3/4"

PIN, 1/2 x 3/4 dowel

2шт.

27

396870R1

GASKET

pump mounting flange adapter

1шт.

28

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

13/16 x 1 x 3/32, pump pressure hose flange

1шт.

29

FLOW, divider valve, refer to power steering flow divider valve listing, section J

1шт.

30

401957R1

TUBE

ASSY, draft control supply transfer, Start Serial: 31313

1шт.

179823

BOLT,Hex, 5/16" - 18 x 1 5/8", Gr 5

2шт.

31

527887R1

CLAMP, draft control supply tube

1шт.

181331

BOLT,Hex, 5/16" - 24 x 1/2", Gr 5

SCREW, 5/16-24 x 1/2 hex-hd cap

1шт.

32

527888R1

BRACKET

tube hold down

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .051) 3/8"

1шт.

33

402327R2

MANIFOLD

ASSY, hydraulic housing power supply, tractors w/draft control, Start Serial: 31313

1шт.

33

396881R2

MANIFOLD ASSY, oil cooler return, tractors w/o draft control, for service replacement order manifold, 401549R1 and hose, 401792R1

1шт.

33

401549R1

MANIFOLD ASSY, hyd housing power supply, tractors w/o draft control

1шт.

179846

LEVER

3шт.

34

354057R2

VALVE

check

1шт.

35

382334R1

SPRING

check (Replaces 38234R1)

1шт.

36

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.

37

390825R1

PLUG

std thd o-ring boss

1шт.

179846

LEVER

1шт.

38

405745R1

PLATE, pump mounting, unit A, replaces 400510R1

1шт.

179865

BOLT,Hex, 7/16" - 14 x 1 7/8"

SCREW, 7/16-14 x 1-7/8 hex-hd cap

4шт.

38

405307R1

PLATE, pump mounting, unit C

1шт.

179866

BOLT,Hex, 7/16" - 14 x 2", Gr 5

4шт.

393259R1

HOSE

INSULATOR, hydraulic line, round

1шт.

393258R1

INSULATOR, hydraulic line, square

1шт.
